Custom Dynamics TruBEAM CDTB-45-AW-3B Installation Instructions page 3

6
8
`
Installation:
1993- 2017 Harley-Davidson® Softail® Deluxe (FLSTN), Deluxe CVO™ (FLSTNSE) and Heritage Softail® (FLST/C)
1. Carefully remove all components from the packaging. Un-ravel the wire bundles on the passing lamps.
2. Remove both of the stock passing lamp trim rings and passing lamps from the passing lamp housings.
3. Remove the 2 Turn Signal Housing mounting bolts and let the Turn signal housing hang by the wire.

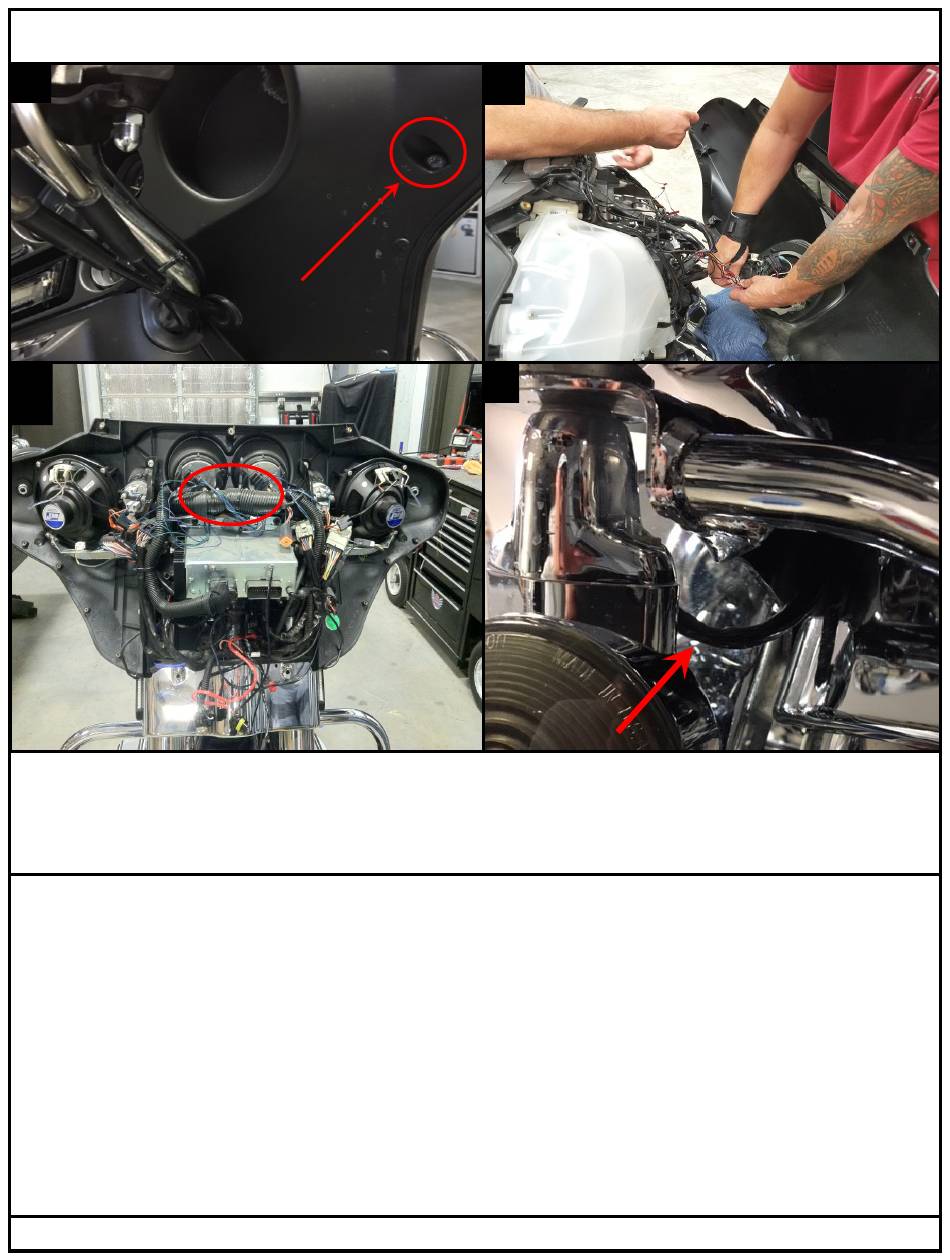

4. Thread the Yellow and White wire from the passing lamp through the passing lamp housing mounting stud as shown in Picture
1.
5. Install the new Amber/White LED Halo Passing Lamp on the passing lamp housings.
6. Slide the provided heat shrink over the Yellow and White wire and install the wire pins into the connector as shown in Picture
2. Route the Passing Lamp harness through the notch in in the back of the Turn Signal housing along with the factory harness,
refer to Picture 3. Reinstall the 2 Turn Signal Housing mounting screws. Use caution not to pinch the harnesses during this
step.
7. Repeat Steps 3-7 for the opposite side.
Questions? Call us at: 1 (800) 382-1388
Installation Instructions - Page 3
