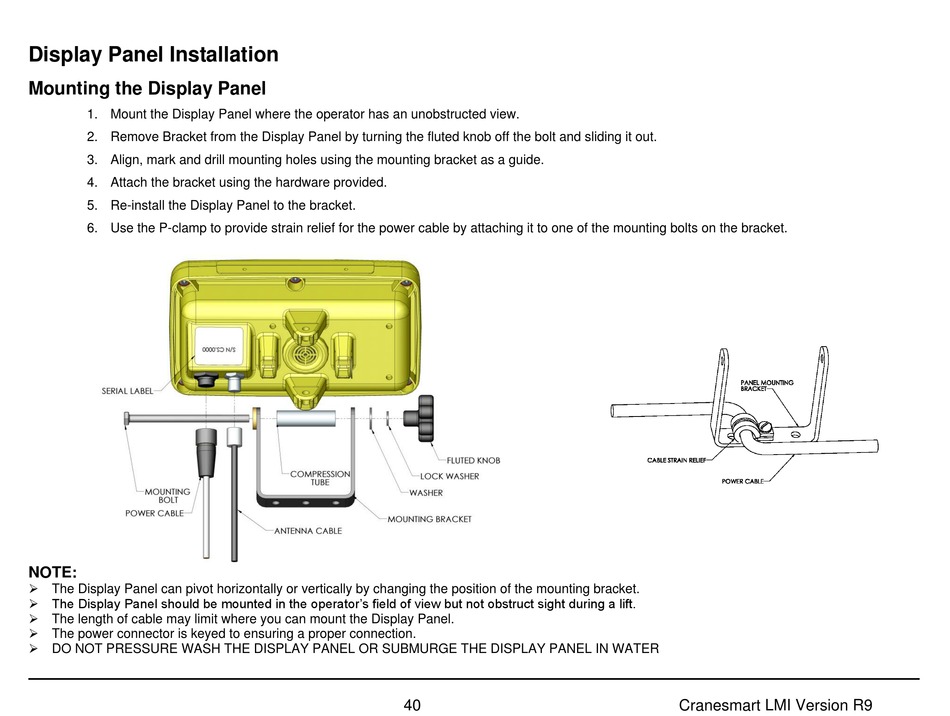

Display Panel Installation

Mounting the Display Panel

1. Mount the Display Panel where the operator has an unobstructed view.
2. Remove Bracket from the Display Panel by turning the fluted knob off the bolt and sliding it out.
3. Align, mark and drill mounting holes using the mounting bracket as a guide.
4. Attach the bracket using the hardware provided.
5. Re-install the Display Panel to the bracket.
6. Use the P-clamp to provide strain relief for the power cable by attaching it to one of the mounting bolts on the bracket.
NOTE:
 The Display Panel can pivot horizontally or vertically by changing the position of the mounting bracket.
 The Display Panel should be mounted in the operator‟s field of view but not obstruct sight during a lift.
 The length of cable may limit where you can mount the Display Panel.
 The power connector is keyed to ensuring a proper connection.
 DO NOT PRESSURE WASH THE DISPLAY PANEL OR SUBMURGE THE DISPLAY PANEL IN WATER
