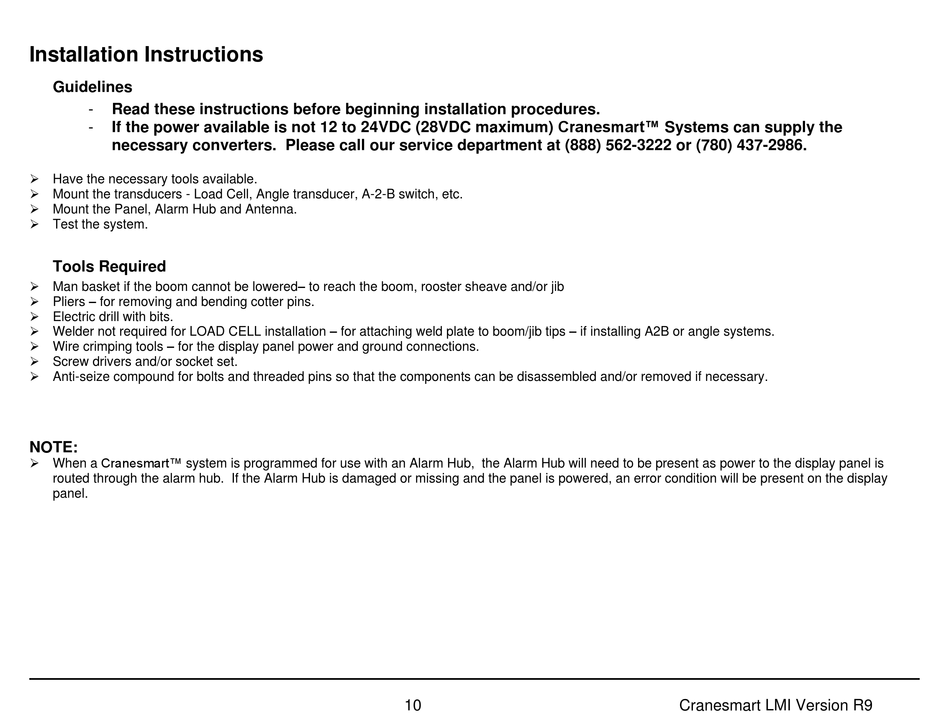

Installation Instructions

Guidelines
- Read these instructions before beginning installation procedures.
If the power available is not 12 to 24VDC (28VDC maximum) Cranesmart™ Systems can supply the
-
necessary converters. Please call our service department at (888) 562-3222 or (780) 437-2986.
 Have the necessary tools available.
 Mount the transducers - Load Cell, Angle transducer, A-2-B switch, etc.
 Mount the Panel, Alarm Hub and Antenna.
 Test the system.
Tools Required
 Man basket if the boom cannot be lowered– to reach the boom, rooster sheave and/or jib
 Pliers – for removing and bending cotter pins.
 Electric drill with bits.
 Welder not required for LOAD CELL installation – for attaching weld plate to boom/jib tips – if installing A2B or angle systems.
 Wire crimping tools – for the display panel power and ground connections.
 Screw drivers and/or socket set.
 Anti-seize compound for bolts and threaded pins so that the components can be disassembled and/or removed if necessary.
NOTE:
 When a Cranesmart™ system is programmed for use with an Alarm Hub, the Alarm Hub will need to be present as power to the display panel is
routed through the alarm hub. If the Alarm Hub is damaged or missing and the panel is powered, an error condition will be present on the display
panel.
10 Cranesmart LMI Version R9
