Male – Male 40/50/80K Load Cell Link Placement on headache Ball – for Single Part-of-Line:

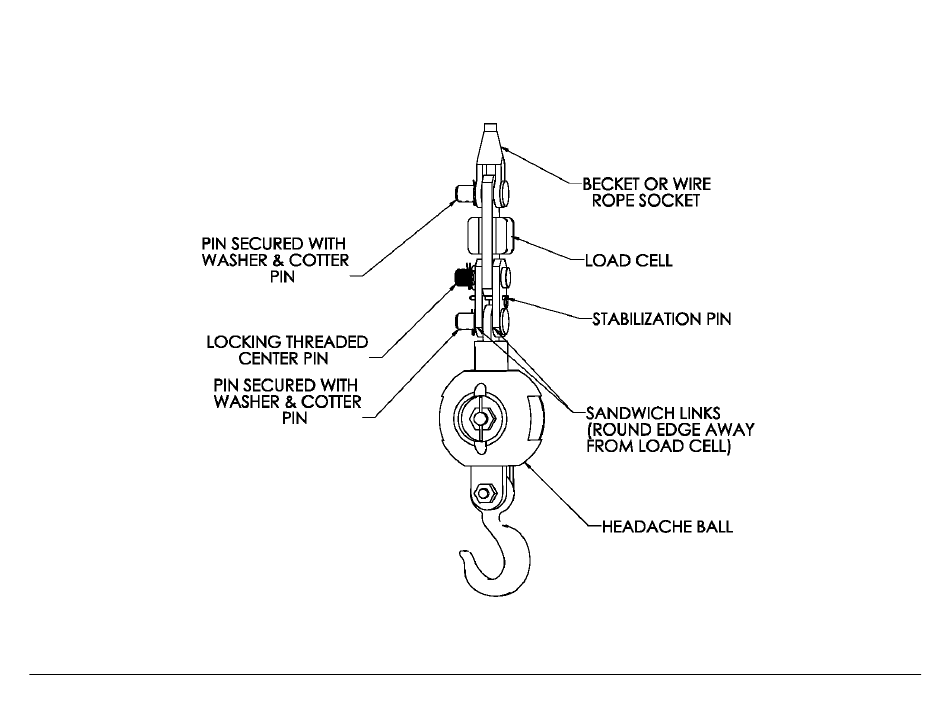

Pin the load cell link between the wire rope (wedge) socket and the "Headache Ball" or hook block as illustrated below.
Place the locking threaded centre pin and the stabilization pin as illustrated below.
Your system is factory calibrated. If you have any questions please call our sales department at (888) 562-3222 or
(780) 437-2986.
