DRAGONFIRE 01-2924 Quick Start Manual

DragonFire Racing
3191 N Washington St. Suite 2
Chandler, AZ 85225
1 (800) 708-9803
http://www.DragonFireRacing.com
Congratulations on your purchase of the DragonFire Spare Tire Carrier! Flats are inevitable and not fun. With this simple bolt-on setup, you
will be able to bring the spare tire with you and your vehicle will look stylish. Be sure to check out the full line of DragonFire Accessories for
your CanAm vehicle at your local authorized dealer or online at
M12-1.5 Lug Nuts were not included because of variation in aftermarket wheel size.
Off road activities can be hazardous and could lead to injury, dismemberment, paralysis and death. No warranty of representation is made as to the products
ability to protect the user from any injury or death. The user assumes that risk. The acceptance and /or use of this merchandise purchased from DragonFire by
the customer hereby shall release DragonFire from any and all liability pertaining to the use of such merchandise.
Pre-installation: Lay out components and compare to list and images.
ITEM QTY SIZE
P1 1 -
P2 1 -
P3 4 1/4"
P4 4 1/4"-20
P5 8 1/4"
P6 4 1/4"-20
P7 6 #10-32

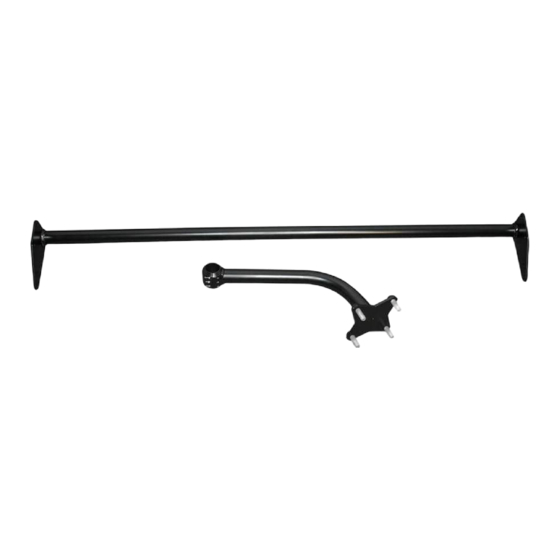

Spare Tire Carrier for CanAm Maverick X3
Part # 01-2924 / 2925
• Read and understand these instructions before installing product
• Do not use as an anchor point for pulling
• Installation may scratch powder coat
• Do not use product if there are any signs of damage
Part & Hardware List
LENGTH TYPE
- Cross Bar
- Spare Tire Carrier
1/2" Aluminum Spacer
1-1/2" Hex Bolt
- Flat Washer
- Hex Nuts
3/4" Socket Head Cap Screw
P3
P4
P6
P5
Maverick X3 - All Models
http://www.DragonFireRacing.com
Disclaimer
STEP USED
4
8
5
5
5
5
8
P7
P1
P2
DragonFire
Black / Red

Tools Required

T40 Torx
7/16" Wrench & Socket
5/32" Allen Wrench
13mm Wrench
Ratchet
Lug Wrench
