DRAGONFIRE RacePace Smash Manual

DragonFire Racing
3191 N. Washington St. Suite 2
Chandler, AZ 85225
1 (800) 708-9803
WWW.DRAGONFIRERACING.COM
Congratulations on the purchase of the RacePace Smash Rear Bumper for RZR 900 models. Designed to give your RZR
personalized style while still keeping the back end protected. Be sure to check out the full line of DragonFire Accessories for
your RZR 900 at your local authorized dealer or online at
• Read and understand these instructions before installing product
• This product does not provide roll over protection
• Do not use product if there are any signs of damage
Off road activities can be hazardous and could lead to injury, dismemberment, paralysis and death. No warranty
of representation is made as to the products ability to protect the user from any injury or death. The user assumes
that risk. The acceptance and /or use of this merchandise purchased from DragonFire by the customer hereby
shall release DragonFire from any and all liability pertaining to the use of such merchandise.

Step 1:

Place vehicle on a flat and level surface. Place gear selector in "Park" and remove keys
from the ignition.

Step 2:

Remove cosmetic plugs from rear plastics on both passenger and driver side. (Figure A)

Step 3:

Inside the driver side fender, locate the 2 holes on the top frame rail near the muffler.
Thread the holes using the supplied 5/16" self threading bolts. (Figure B) After holes
have been threaded remove the bolts and retain for later use.

Step 4:

Repeat Step 3 on passenger side.

Step 5:

Locate supplied Upper mounting bracket. (Figure C) Install bracket with weld nut toward
the inside of the vehicle, using hardware from Step 3. Leave loose for adjustment later.
(Figure D)

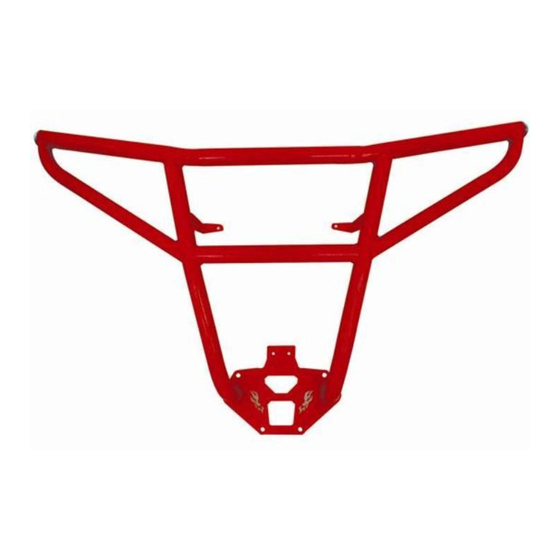

RacePace "Smash" Rear Bumper for RZR 900
Part # 01-1910
Part # 01-1911
2015 RZR 900
2015 RZR 900
http://www.DragonFireRacing.com
Disclaimer
DragonFire
Black
Red

Tools Required

Ratchet with 6" Extension
1/2" Socket
9/16" Socket
17mm Socket
