DEMO MANUAL DC1759A
QUICK START PROCEDURE
4
Arrow.com.
Arrow.com.
Arrow.com.
Arrow.com.
Downloaded from
Downloaded from
Downloaded from
Downloaded from
3.3V OUTPUT (20MHz BW) [100mV/DIV]

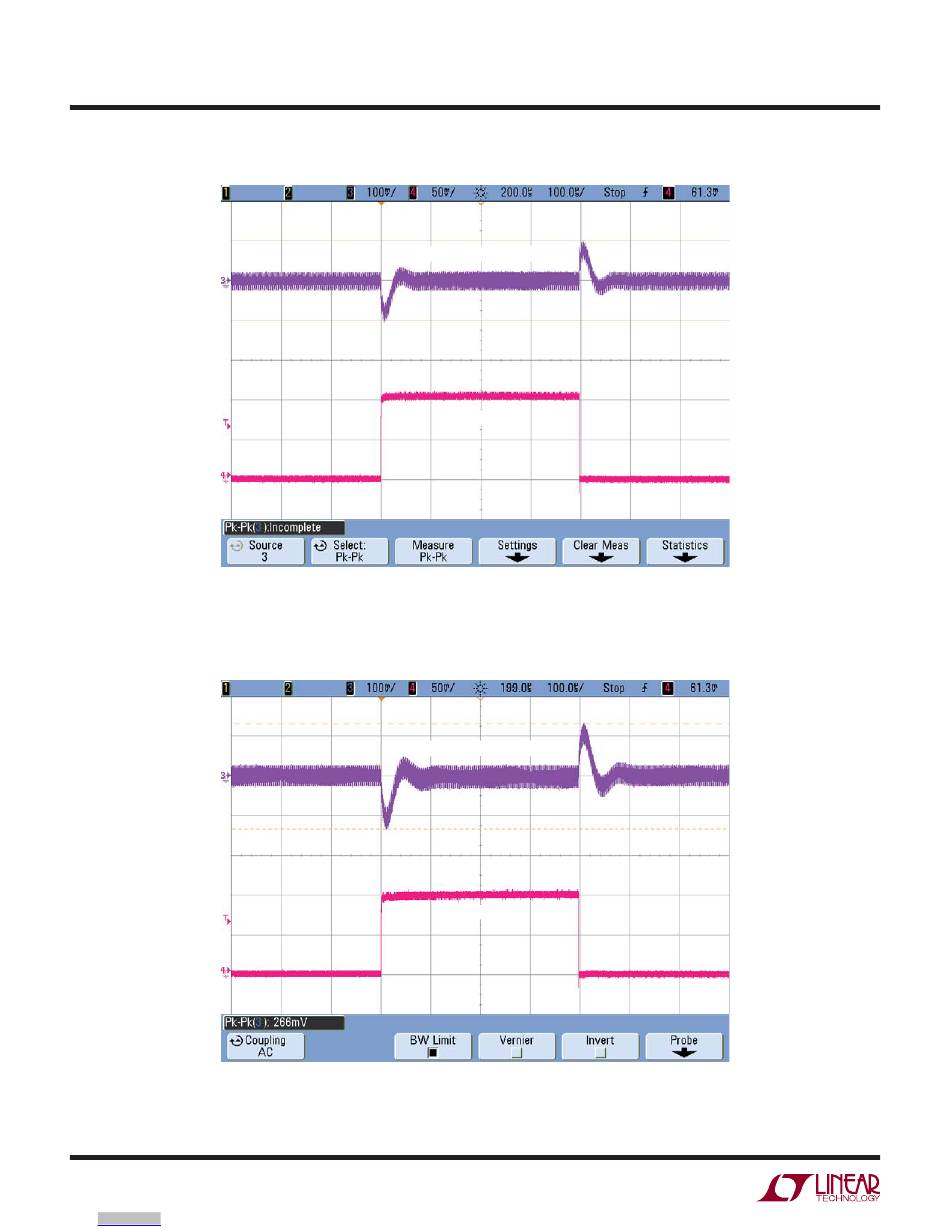

Figure 5. Measured Channel 1 6.5A to 13A Load Transient (V
5V OUTPUT (20MHz BW) [100mV/DIV]
Figure 6. Measured Channel 2 6.5A to 13A Load Transient (V
6.5A TO 13A LOAD
= 12V, V
IN
6.5A TO 13A LOAD
= 12V, V
IN
dc1759a F05
= 3.3V)
OUT1
dc1759a F06
= 5V)
OUT2
dc1759af
