Summary of Contents for BMC 3B RESmart BPAP 25A

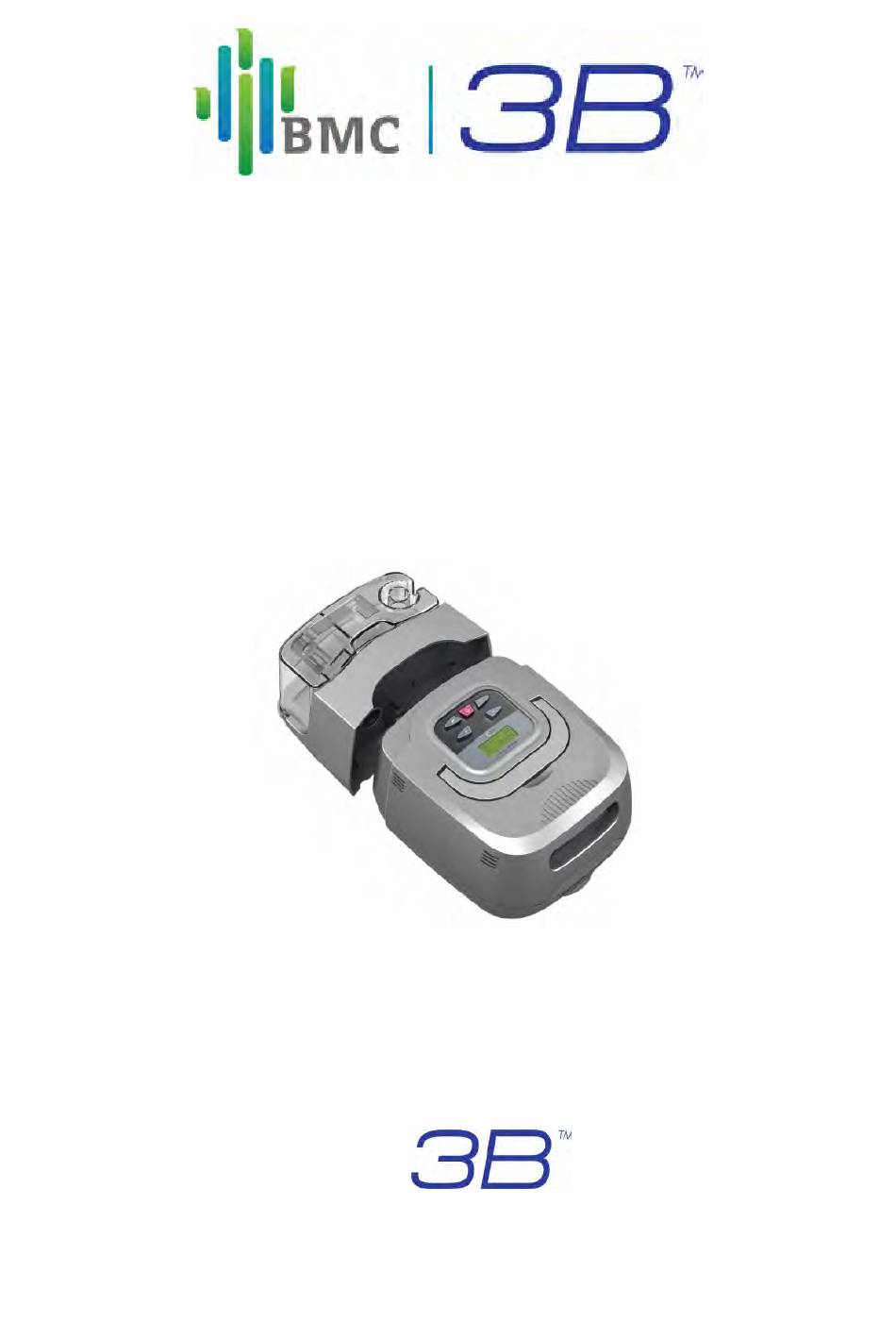

- Page 1 RESmart BPAP 25A System ® User Manual ™ Solutions in Sleep Therapy www.3Bproducts.com...
-
Page 2: Table Of Contents
Troubleshooting .................... 28 EMC Requirements ..................29 Glossary ......................33 Limited Warranty ..................36 iCode ® and RESmart ® are registered trademarks of BMC Medical Co., Ltd. and Solutions in Sleep Therapy are trademarks of 3B Products, LLC. ™ ™... -
Page 3: Symbols
® RESmart BPAP 25A User Manual Symbols Control Buttons Pressure Start / Stop Button Ramp Button Humidifier On / Off (iCode ® User Button User Button Device Attention, Consult Accompanying Documents Type BF Applied Part Class II (Double Insulated) AC Power IPX1 Drip-Proof, Vertical Serial Number of the Product... -
Page 4: Indications For Use
Federal law restricts this device to sale by or on the order of a physician. Indications for Use The 3B and BMC RESmart BPAP system is a Bi-level PAP (Bi-level ® Positive Airway Pressure) device designed for the treatment of adult Obstructive Sleep Apnea (OSA). - Page 5 ® RESmart BPAP 25A User Manual patients such as those with: cerebral spinal fluid leaks, abnormalities of the cribriform plate, prior history of head trauma, and / or pneumocephalus (Chest 1989: 96:1425-1426). Contact your health care professional if you have any questions concerning your therapy.
-
Page 6: Warning, Caution And Important
Always verify the elevation setting when traveling or relocating. To reduce this potential, observe the following: • Use BMC circuit accessories. • Do not wear the mask and headgear for more than a few minutes while the device is not operating. - Page 7 WARNING! DO NOT connect any equipment to the RESmart BPAP unless ® recommended by BMC or your health care provider. CAUTION! If the RESmart BPAP has been exposed to either very hot or ® very cold temperatures, allow it to adjust to room temperature (approximately 2 hours) before beginning setup.
-
Page 8: Specifications
® RESmart BPAP 25A User Manual Specifications Device Size Dimensions: 8.66 × 7.6 × 4.4 (220 mm x 194 mm x 112mm) with Integrated Heated Humidifier Weight: 3.5 lbs. (2.2 kg), 4.8 lbs. (3 kg) 6.6 lbs. (with Integrated Heated Humidifier) Product Use, Transport and Storage Operation Transport and Storage... - Page 9 ® RESmart BPAP 25A User Manual Maximum Flow Test Pressure (cmH Average flow at the patient connection 70.1 73.4 74.6 port (L/min) Accessories RESmart BPAP are not sold with mask, tubing or bacterial ® filters. Accessories may be purchased separately. The RESmart product ®...
-
Page 10: Unpacking The System
® RESmart BPAP 25A User Manual Unpacking the System Included with your RESmart unit: ® Item Qty. RESmart ® BPAP Power cord Carrying Case with shoulder strap User Manual Provider Instructions Flexible tubing Extra Filter (M1020) Humidifier Plug SD Card All parts and accessories are not made with natural rubber latex. -
Page 11: Available Therapies
® RESmart BPAP 25A User Manual Available Therapies The RESmart BPAP is available in the model 25A, which delivers the ® following therapies: CPAP Mode: Delivers Continuous Positive Airway Pressure; CPAP maintains a constant level of pressure throughout the breathing cycle. -
Page 12: System Features
® RESmart BPAP 25A User Manual System Features User Buttons Display Screen Handle Medical Product Note (bottom) SD Card Slot Filter Cap & Filters Humidifier Controller Air Outlet Humidifier Power Display Screen: All system settings, total operating time, and therapy hours will appear here. User Buttons: These buttons can be used to turn on / off the system and change the system settings. -
Page 13: First Time Setup (Patient)
® RESmart BPAP 25A User Manual the SD card can record and save all patient treatment data. Communications Connector: For clinical use with the Data Management Software. Connect the communications cable here (RS232 Cable). Filter Cap & Filters: The foam filter screens out normal household dust and pollens. -
Page 14: Iii. Connect Power Cord
® RESmart BPAP 25A User Manual III. Connect Power Cord Plug the socket end of the power cord into the AC inlet on the back of the RESmart BPAP. Plug the pronged end of the power ® cord into an electrical outlet. System status will appear on the RESmart BPAP screen. - Page 15 ® RESmart BPAP 25A User Manual Heated Humidifier Button: Use this button when the optional Integrated Heated Humidifier has been prescribed. This button will control the optional heated humidifier’s output. This button will also provide iCode data when humidifier is off. See iCode ®...
-
Page 16: Iv. Patient Menu Set-Up
® RESmart BPAP 25A User Manual IV. Patient Menu Set-Up Starting the Device Standby After power on, system status will appear on display screen as below. Work Mode S Mode Work Mode: The starting Mode. Default setting is S Mode. P1: EPAP when device work on Mode S, Default setting is 6 cmH P2: IPAP when device work on Mode S , Default setting is 10 cmH Using the Ramp Button... -
Page 17: Selecting Patient Device Settings
® RESmart BPAP 25A User Manual to silence the alert tone. Refer to the “Troubleshooting” Section of the manual for further instructions. • Make sure that bedding, curtains, or other items are not blocking the filter or vents of the RESmart BPAP. - Page 18 ® RESmart BPAP 25A User Manual WARNING! DO NOT use the RESmart BPAP if the display is erratic. Contact ® your home care provider for further instructions. IMPORTANT! If at any time you wish to exit the setup menu, press the Pressure Start / Stop Button and the display will go back to the system standby screen.
- Page 19 ® RESmart BPAP 25A User Manual Setting the LCD Light This setting allows you to adjust the LCD light among Auto, On and Off. Default setting is Auto. Auto: LCD light will be turned on when any button pressing and turned off after few seconds.
- Page 20 ® RESmart BPAP 25A User Manual Setting the Delay When the optional RESmart Heated Humidifier is used, this setting ® allows the air flow continue for about 15 minutes at very low pressure (about 2 hPa) after the RESmart BPAP is turned off. This ®...
-
Page 21: Reviewing Sleep Data
® RESmart BPAP 25A User Manual Reviewing Sleep Data The RESmart allows review of the prior night’s sleep data. ® To access your data, make sure that the blower is not running by pressing the stop / start button. Press the Ramp button and scroll through the display using the +/- buttons. -
Page 22: Assembling The Circuit (Interface "Mask")
® RESmart BPAP 25A User Manual VI. Assembling the Circuit (interface "Mask") To use the system, you will need the following accessories in order to assemble the recommended circuit. (1) Mask with integrated exhalation port (2) 6 ft. (1.83 m) flexible Tubing (included) (3) Headgear (for the mask) a. - Page 23 ® RESmart BPAP 25A User Manual the accessories. Adding a Humidifier The Integrated Heated Humidifier is available from your home care provider. The humidifier may reduce nasal dryness and irritation by adding moisture (and heat if applicable) to the airflow. WARNING! The RESmart unit should only be connected to the humidifiers or...
- Page 24 ® RESmart BPAP 25A User Manual Using Oxygen with Device Oxygen may be added at the mask connection. Please note the warnings listed below when using oxygen with the RESmart BPAP. ® WARNING! The oxygen supply must comply with the local regulations for Medical oxygen.
-
Page 25: Connecting The Circuit (Interface-Mask And Tubing)
® RESmart BPAP 25A User Manual Connecting the Circuit (Interface-Mask and Tubing) Connect the circuit by attaching tubing to air outlet on the device or on the integrated humidifier air outlet. IMPORTANT! Before each use, examine the flexible tubing for any damage or debris. -
Page 26: Helpful Hints
® RESmart BPAP 25A User Manual Turning the System OFF Remove the mask and headgear. Press the pressure start / stop button on the top of the RESmart BPAP to stop ® the airflow. Or, if the Auto Off setting has been enable, the airflow will automatically turn off. -
Page 27: Routine Maintenance
® RESmart BPAP 25A User Manual Routine Maintenance Replacing the Filter It is recommended that the air filter be changed every 30 days. 1. Remove the filter cap by gently pressing on its bottom. 2. Remove the foam filter by gently pulling around the edges of the filter. -
Page 28: Reordering
® RESmart BPAP 25A User Manual Reordering Contact your home care provider to order accessories or replacement filters. Service The RESmart BPAP system does not require routine servicing. The ® RESmart unit contains electrical and/or electronic equipment. ® When necessary, dispose of the RESmart and accessories in ®... -
Page 29: Traveling With Resmart
® RESmart BPAP 25A User Manual Traveling with RESmart ® When you are traveling, the carrying case is for carry-on luggage only. The carrying case will not protect the system if it is stored as checked baggage. Security Stations For convenience at security stations, there is a note on the bottom of the RESmart device stating that it is medical equipment. -
Page 30: Troubleshooting
® RESmart BPAP 25A User Manual Troubleshooting The table below lists common problems you may have with the RESmart BPAP and possible solutions to those problems. If none ® of the corrective actions solve the problem, contact your homecare provider. Problem Solution (s) The pressure being... -
Page 31: Emc Requirements
® RESmart BPAP 25A User Manual EMC Requirements Guidance and manufacturer's declaration - electromagnetic emissions The RESmart is intended for use in the electromagnetic ® environment specified below. The RESmart user should ensure ® that it is used in such an environment. Electromagnetic Environment Emissions Test Compliance... - Page 32 ® RESmart BPAP 25A User Manual Guidance and manufacturer's declaration -electromagnetic immunity RESmart is intended for use in the electromagnetic environment ® specified below. The RESmart user should make sure that it is used in such ® an environment. IEC 60601 Compliance Electromagnetic Immunity Test...
- Page 33 ® RESmart BPAP 25A User Manual Guidance and manufacturer's declaration -electromagnetic immunity The RESmart is intended for use in the electromagnetic environment ® specified below. The user of the RESmart should make sure that it is used ® in such an environment. Immunity IEC 60601 Compliance...
- Page 34 ® RESmart BPAP 25A User Manual NOTE 1: At 80 MHz and 800 MHz, the higher frequency range applied. NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. a Field strengths from fixed transmitters, such as base stations for radio (cellular / cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast...
-
Page 35: Glossary
® RESmart BPAP 25A User Manual Glossary Apnea / Hypopnea Index Apnea A condition marked by the cessation of spontaneous breathing. Auto s Auto S mode responds to both your inhalation and exhalation. The differential pressure of IPAP and EPAP are preset by your homecare provider. While in Auto mode, the device will automatically adjust the IPAP and EPAP when it detects an apnea event. - Page 36 ® RESmart BPAP 25A User Manual EPAP Expiratory Positive Airway Pressure IPAP Inspiratory Positive Airway Pressure Max IPAP The maximum IPAP Pressure iCode A feature that gives access to compliance and ® therapy management information using encrypted codes. The iCode consists of six ®...
- Page 37 ® RESmart BPAP 25A User Manual Snore Index Standby The state of the device when power is applied but flow is turned off. Units O or hPa Use Time Total hours this device been used. 35 / 36...
-
Page 38: Limited Warranty
Failed / defective units must be returned within 30 days of the RMA date. ▪ This warranty coverage is applicable to all 3B/BMC CPAP, Auto-CPAP and Auto Bi-Level devices. ▪ The warranty policy does not cover any damages caused as a result of alteration, intentional damage, modification, or unauthorized repair of the device.
