BMC F2 User Manual

Full face mask
Hide thumbs
Table of Contents

Advertisement

Quick Links

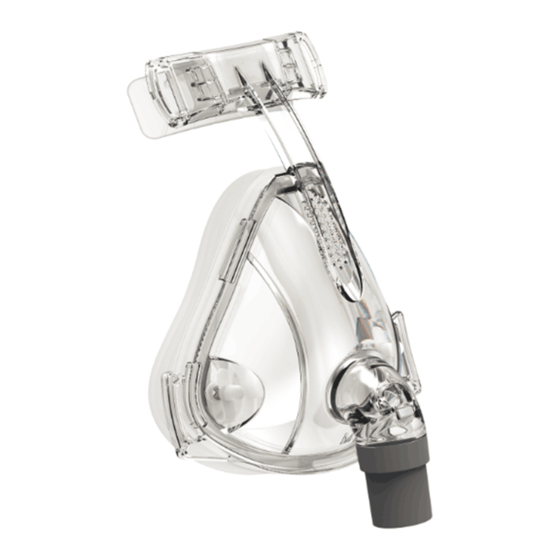

F2 Full Face Mask
User Manual
0123

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BMC F2

Summary of Contents for BMC F2

  • Page 1 F2 Full Face Mask User Manual 0123...

  • Page 2: Table Of Contents

    F2 Full Face Mask ................1 Intended Use .................. 1 Before Using the Mask ..............2 Components of the F2 Full Face Mask ..........4 Getting the Right Cushion Size ............5 Fitting the Mask ................6 Disassembling the Mask ..............7 Cleaning the Mask at Home ............

  • Page 3: F2 Full Face Mask

    F2 Full Face Mask User Manual V2.1 F2 Full Face Mask Thank you for choosing BMC’s F2 Full Face Mask (BMC-FM2). The mask is comfortable, flexible and quiet. It is designed to minimize contact with your face, thus ensuring that you feel comfortable during therapy.

  • Page 4: Before Using The Mask

    F2 Full Face Mask User Manual V2.1 Before Using the Mask WARNINGS  The vent holes must be kept clear.  Explanation of Warning: CPAP systems are intended to be used with special masks with connectors which have vent holes to allow continuous flow of air out of the mask.
  • Page 5  Stop using the F2 Full Face Mask and consult your physician or sleep therapist, if you have ANY adverse reaction to the use of the mask.

  • Page 6: Components Of The F2 Full Face Mask

    F2 Full Face Mask User Manual V2.1 Components of the F2 Full Face Mask Frame assembly Forehead pad Elbow Cushion Valve Swivel Elbow assembly Headgear Components of the F2 Full Face Mask 4 / 14...

  • Page 7: Getting The Right Cushion Size

    F2 Full Face Mask User Manual V2.1 Getting the Right Cushion Size  The following drawing describes the different features of face and the length of the face (H) you need to measure.  The masks are available in three different sizes.

  • Page 8: Fitting The Mask

    F2 Full Face Mask User Manual V2.1 Fitting the Mask Use a standard conical connector if pressure readings and / or supplemental oxygen are required. Pass the upper straps Place the mask on the Bring the lower-half of the headgear...

  • Page 9: Disassembling The Mask

    F2 Full Face Mask User Manual V2.1 Disassembling the Mask Notes: The elbow assembly cannot be dissembled from the frame assembly. The elbow assembly cannot be disintegrated. The valve cannot be dissembled, or damage may be incurred and the re-installation will become more difficult.

  • Page 10: Cleaning The Mask At Home

    F2 Full Face Mask User Manual V2.1 Cleaning the Mask at Home Notes:  The mask and headgear can only be cleaned through hand washing.  The elbow, the swivel and the valve cannot be dissembled for washing. CAUTIONS ...

  • Page 11: Reprocessing The Mask Between Patients

    Reprocessing the Mask between Patients This mask should be reprocessed when used between patients. Cleaning and disinfection instructions are available from the BMC website, www.bmc-medical.com. If you do not have internet access, please contact your BMC representative.

  • Page 12: Troubleshooting

    F2 Full Face Mask User Manual V2.1 Troubleshooting Problem Possible Reason Possible Solution Carefully follow instructions in “Fitting the Mask may have been Mask won’t seal Mask” section. Make sure fitted incorrectly. the headgear is not properly or is over-tightened.

  • Page 13: Technical Specifications

    F2 Full Face Mask User Manual V2.1 Technical Specifications Pressure–Flow Curve Mask Pressure (cmH Mask Pressure (cmH Flow Rate (L/min) Dead space is the empty volume of the mask up to the Dead Space swivel. Information The dead space of the mask varies according to cushion sizes but is less than 218 mL.

  • Page 14: Storage

    F2 Full Face Mask User Manual V2.1 Non-Rebreathing Valve 1.2 cmH closed-to-atmosp here pressure DECLARED DUAL-NUMBER NOISE EMISSION VALUES in accordance with ISO 4871. The A-weighted sound Sound power level of the mask is 28 dBA, with uncertainty 3 dBA.

  • Page 15: Symbols

    F2 Full Face Mask User Manual V2.1 Symbols System and Packaging Caution, consult accompanying documents. Indicates a Warning or Caution and alerts you to a possible injury or explains special measures for the safe and effective use of the device.

  • Page 16: Limited Warranty

    F2 Full Face Mask User Manual V2.1 Limited Warranty It is warranted that the F2 Full Face Mask, including Frame assembly, Cushion, Forehead pad, Headgear shall be free from defects in material and workmanship for a period of ninety (90) days from the date of purchase by the initial consumer.

This manual is also suitable for:

Bmc-fm2
