Summary of Contents for PANDROL PLA 25

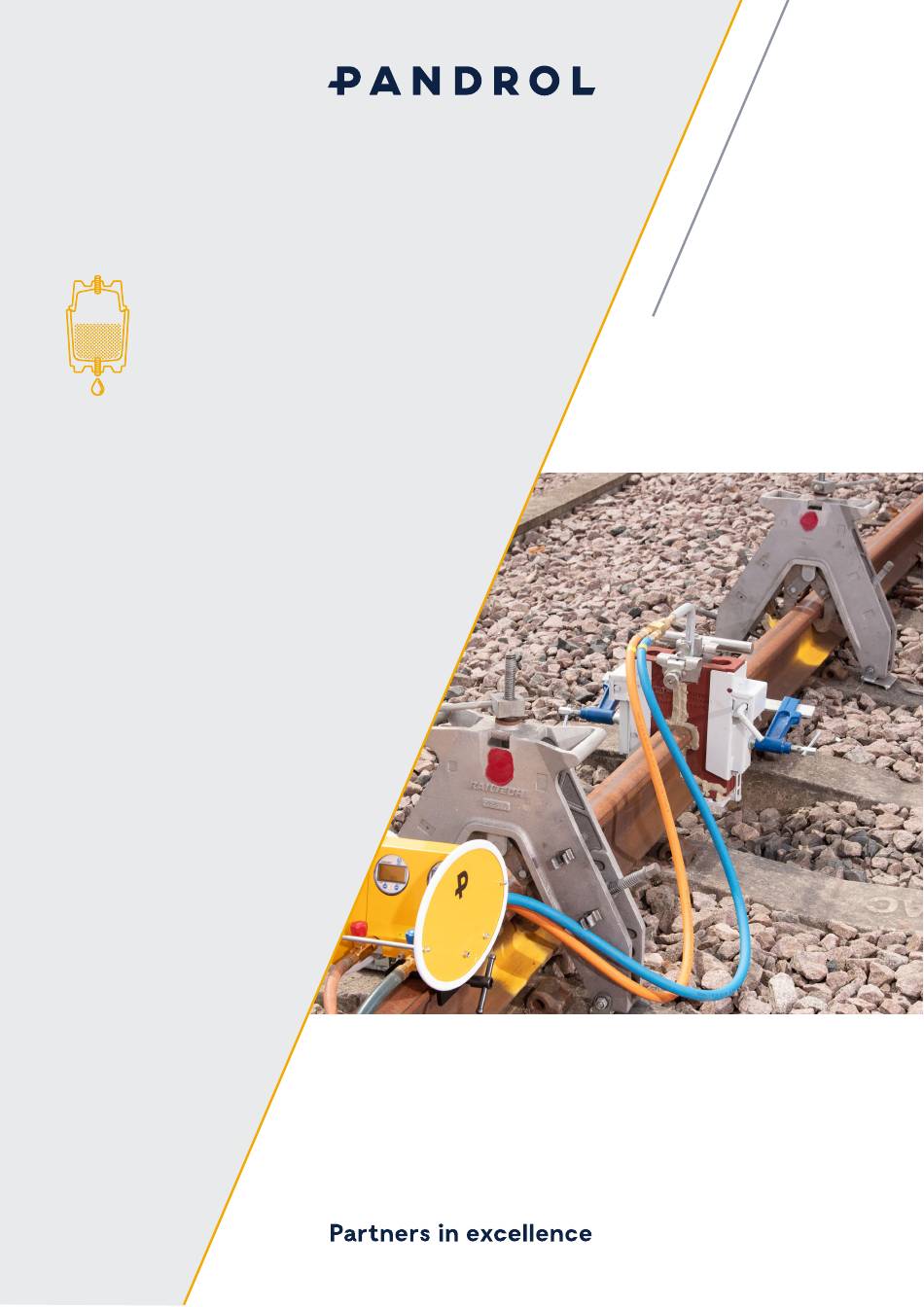

- Page 1 Gas Box Oxy- Propane Preheating OPERATION MAINTENANCE MANUAL Issue 06 1st February 2019...
- Page 2 Self-Centring Burner The burner head has a support that is adjustable in height and widths to fit the range of moulds supplied by PANDROL. The moulds have a notch where the torch support sits (see figure 3). The torch support is then secured to the moulds by using the thumb screw.
- Page 3 The flame that comes out of the risers during the preheat must be symmetrical and measure approximately 300 • – 400 mm above the moulds. Figure 4: OPERATION MAINTENANCE MANUAL | Issue 06 | 1st February 2019 © Pandrol 2019...
- Page 4 Preheating Parameters Propane Oxygen Burner Height Time PLA 25 0,25 – 0,30 0,50 – 0,51 50mm 4 minutes PLA 68 0,25 – 0,30 0,50 – 0,51 70mm 7 minutes Using the gauge Several options can be found on the gauge for customisation or maintenance: Turning the gauges On / Off: •...
- Page 5 Figure 7: More information can be found on ASHCROFT website Gauge model: DG25 http://www.ashcroft.com/installationandmaintenance_pdf/upload/manual_digital_gauge_dg25.pdf OPERATION MAINTENANCE MANUAL | Issue 06 | 1st February 2019 © Pandrol 2019...
- Page 6 Find out more at pandrol.com Pandrol Gateford Road Worksop Nottinghamshire S819AP +44 (0) 1909 476101 info@pandrol.com © Pandrol OPERATION MAINTENANCE MANUAL | Issue 06 | 1st February 2019 © Pandrol 2019...
