AYRSTONE AyrMesh Hub Quick Installation Manual

Cab installation kit

www.ayrstone.com

888-837-0637

What's in the box:

Cigarette lighter power cord

●

6 dBi external antenna

●

Ayrstone AyrMesh Hub

●

Ayrstone AyrMesh Hub

Cab Installation Kit

Quick Installation Guide

Full instructions at

http://ayrstone.com/support

Start Here

First, assemble and initialize the

Hub per the instructions. The Hub

must have checked in to your

AyrMesh.com account.

Table of Contents

Do you have a question about the AyrMesh Hub and is the answer not in the manual?

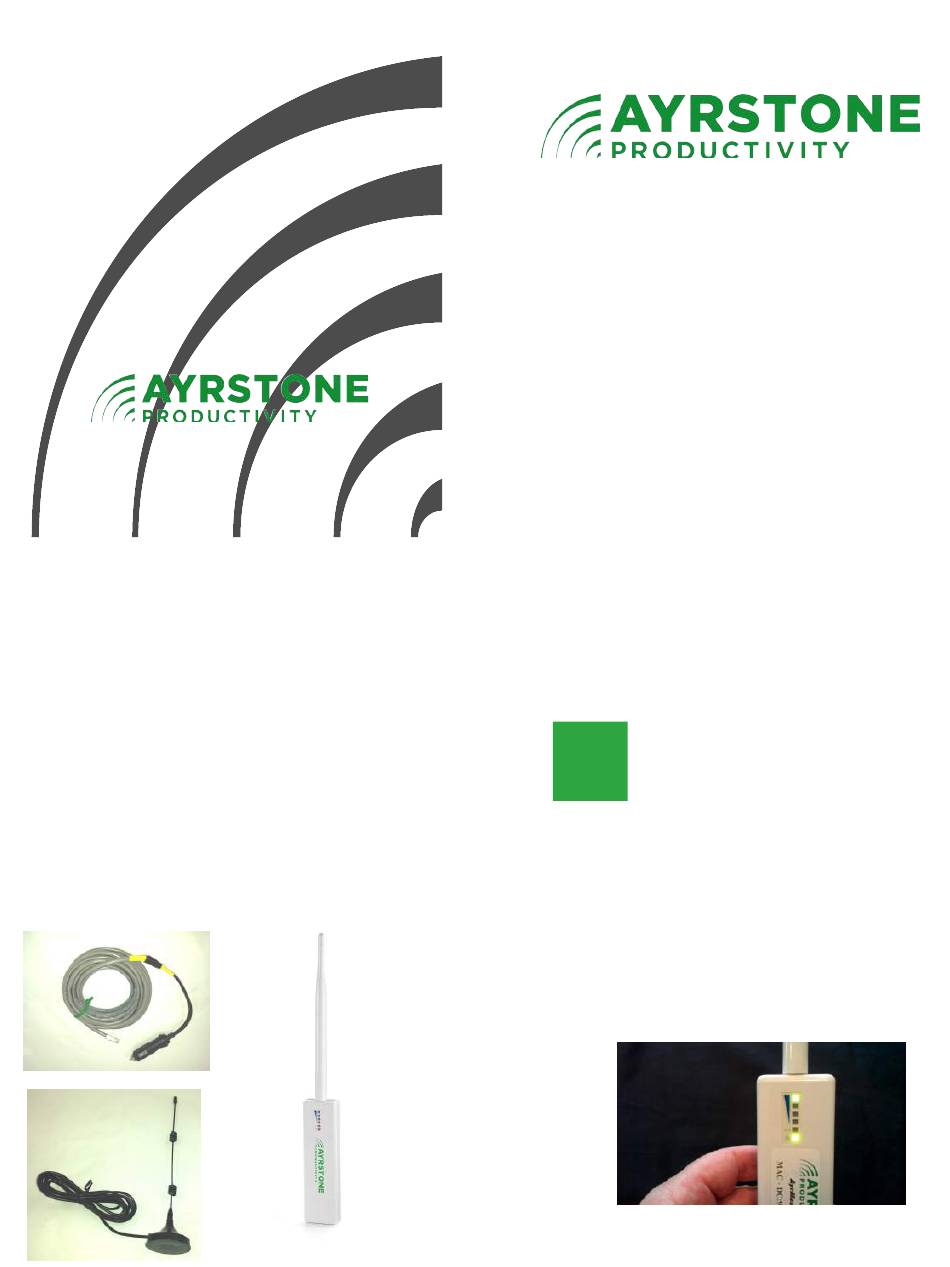

Page 1 Ayrstone AyrMesh Hub Cab Installation Kit Quick Installation Guide www.ayrstone.com Full instructions at 888-837-0637 http://ayrstone.com/support Start Here What's in the box: Cigarette lighter power cord ● 6 dBi external antenna ● First, assemble and initialize the Ayrstone AyrMesh Hub ● Hub per the instructions. The Hub must have checked in to your AyrMesh.com account.
Page 2 Assemble 1. Remove the white antenna from the Hub and attach the cab antenna. 2. Open bottom door of the Hub and attach power cord as shown: Mount 1. Place the Antenna on a ferrous metal surface outside, as high and in the clear as possible. 2. Run the antenna cable, with the hub and power cord, inside the cab. 3. Plug the power cord into a cigarette lighter (12 volt) receptacle. 4. Mount the Hub inside someplace it won't be subjected to excess shock and vibration. For instance, you can adhere the Hub to a window with 3M adhesive pads or mount it to an existing bracket with a block of foam. Notes: 1. You'll be able to see the signal strength to the nearest Hub on the Cab Hub's lights. 2. The Hub will provide WiFi in the cab for your equipment. 3. Getting the antenna as high as possible on the vehicle and clear of any obstructions (including hoppers on combines) is vital to maximum range and effectiveness. Support: Ayrstone.com/support support@ayrstone.com 888-837-0637 x101...
