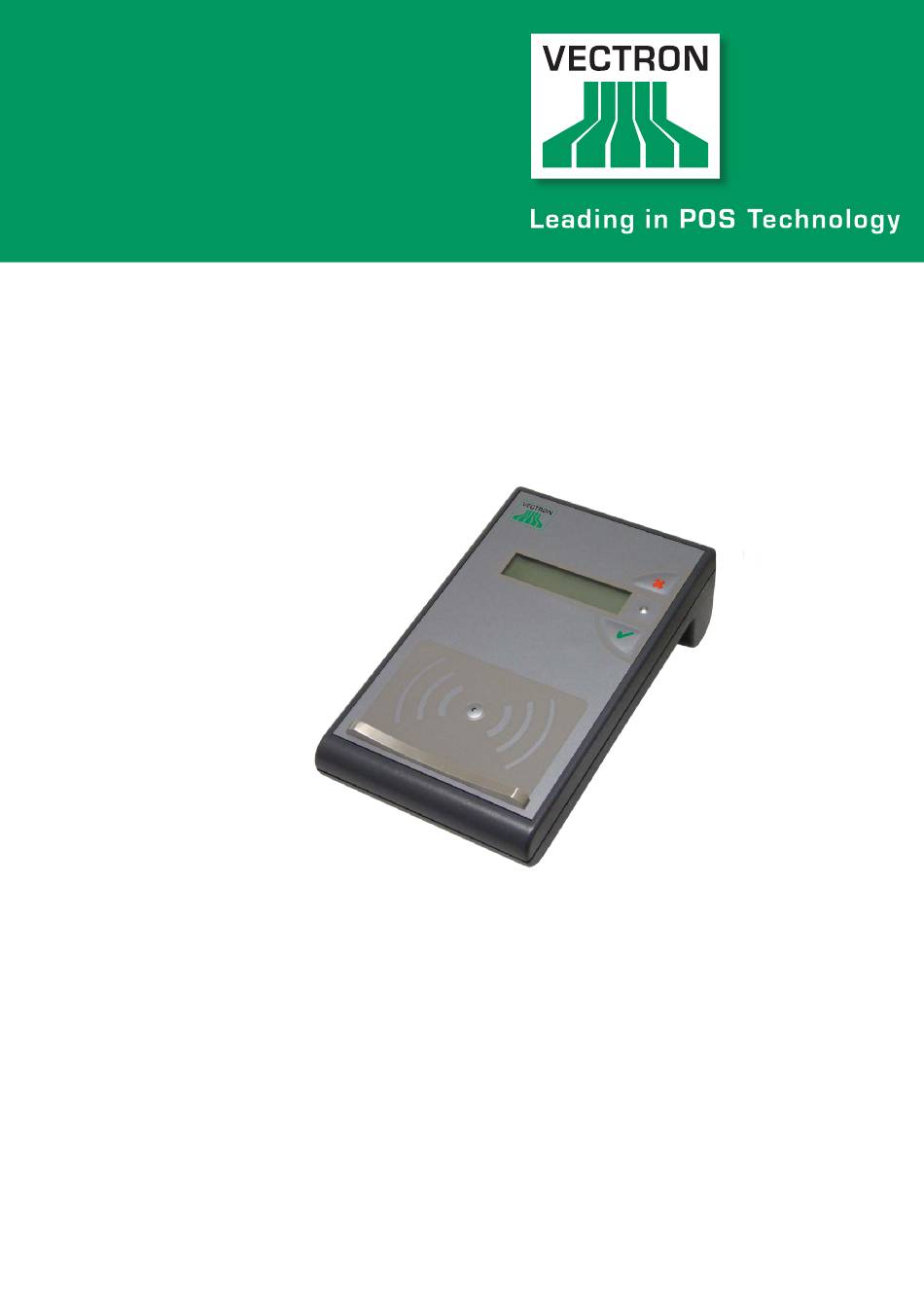

Vec t r on S y s t ems
Vec t r on T10
Use r m a n u a l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T10 and is the answer not in the manual?

Questions and answers

Related Manuals for Vectron T10

Summary of Contents for Vectron T10

  • Page 1 Vec t r on S y s t ems Vec t r on T10 Use r m a n u a l...
  • Page 3 Your Vectron dealer Date: 12.01.2017 © 2017 by Vectron Systems AG Subject to error and technical modification Manufacturer Vectron Systems AG Willy-Brandt-Weg 41 D-48155 Münster www.vectron-systems.com...

  • Page 5: Table Of Contents

    Disposal ................11 Vectron T10 ................ 12 5.1. Shipment ..................... 12 5.2. Components and mounting ............... 13 5.2.1. Vectron T10 ..................13 5.2.2. Power supply PS80 ................16 5.3. System concept and functioning ............. 17 5.4. Technical data ..................19 5.4.1.

  • Page 7: Preface / Introduction

    1. P r e f ac e / In t r oduc t ion Thank you for having purchased the product Vectron Transponder reader/writer T10. You decided in favour of an innovative system, which will support you and your employees in your daily work.
  • Page 8 V E C T RON T10 This manual does not contain information about the required programming of Vectron POS systems to operate Vectron T10. This requires detailed knowledge and is therefore incumbent on specialised Vectron dealers. Please address all further questions to your...

  • Page 9: Notes On Safety

    • Improper installation, maintenance or operation may result in injury to the user and damage to the devices. • Maintenance and repair of the Vectron T10 is to be carried out only by trained personnel, certified by the manufacturer. • Vectron T10 has been manufactured to the highest possible standards.

  • Page 10: Instructions For Use

    • Do not insert any foreign objects into any openings on the devices. • The power supply Vectron PS80 must be plugged into a prop- erly grounded outlet. • The devices may not be exposed to direct sunlight. Ensure there is sufficient airflow around the device to allow for adequate cooling.

  • Page 11: Disposal

    The legal take-back obligation applies for devices that were put on the market after 13 August 2005. In addition, Vectron Systems AG extends this obligation to all devices that have been put on the market as of 1 January 2004.

  • Page 12: Vectron T10

    RFID-cards. Vectron therefore provides a closed and fully compatible system in the field of loyalty programs. Mobile termi- nals as well as all stationary Vectron POS systems can read the rugged and wear-resistant RFID cards. The Vectron RFID card technology boasts a large variety of ap- plications.

  • Page 13: Components And Mounting

    Vectron T10 incl. combined power- and data cable, the external power supply Vectron PS80 and a user manual. 5 . 2 . 1 . Ve c t ro n T10 The Vectron T10 writes and reads respective cards. The used format is „Tag-It HF-I plus®“.
  • Page 14 V E C T RON T10 Power- / data cable Display Cancel key Contact surface Green / Red LED Confirmation key Blue LED Stainless steel holder Fig. 2: Vectron T10 components Display: The transflective LCD with background lighting has two lines, each with 16 characters.
  • Page 15 The blue LED is in the middle of the contact surface and it serves for visual user guidance. Another red/green status-LED right of the display indicates the current status of Vectron T10 by lighting up or by flashing slowly or quickly. Buzzer: The buzzer informs the operator acoustically about activ- ity or an error.

  • Page 16: Power Supply Ps80

    V E C T RON T10 5 . 2 . 2 . Powe r su p p l y PS 8 0 The Vectron Transponder reader-/writer T10 is supplied via the power supply PS80. Fig. 3: Power supply PS80 Danger of destruction! Only use the delivered PS80 for the power supply of the Vectron T10.

  • Page 17: System Concept And Functioning

    POS system enables operator sign in and -out and guest check opening per RFID card with format „Tag-It HF-I plus®“. Vectron T10 can also be used for establishing a server- based customer-, discount- or bonus card system. Likewise, you can realize a server-based In-house payment system, e.g.
  • Page 18 Fig. 4: Example for a server-based In-house payment system Thanks to the rugged, splash-proof housing the Vectron T10 can well be used in the counter area, in a sauna or in a skiing area. Operation requires a stationary Vectron POS system with Vectron POS software 4.2.12.0 or higher.

  • Page 19: Technical Data

    LCD 2x16 characters, transflective Other display Status-LEDs Input 2 keys for confirm / cancel Power supply Vectron PS80, 24 Vdc / 1,25A Port per RS232 to serial port Cable Y-cable, fixed mounting (data- and power cable), length je 2 m each...

  • Page 20: Software

    V E C T RON T10 5 . 4 . 2 . S of t wa re Technical data and Communication with VPOS via RS232 features Display control via VPOS Card initialization Open guest check with RFID card Operator sign-in and -out...

  • Page 21: Putting Into Operation

    Make sure you received your system as per order. Proceed as follows to connect and operate Vectron Vectron T10: Put the RJ45 plug of the Vectron T10 in a free serial port at the bottom of the POS system or the base station of the hybrid system.

  • Page 22: Vectron T10 Functions

    Vectron POS Software controls the evaluation of card data, all key input and the display. If the Vectron T10 is connected to the mains but not yet con- nected to the POS system or if the latter is still switched off, the display shows „Waiting...“.
  • Page 23 Card is put on Display „In process...“ Background lighting Buzzer LED (red/green) green LED is blinking LED (blue) Result a) card read successfully b) card not read successfully Proceed with a) „card read successfully“ b) „card not read successfully“ If a card is not read successfully this usually hap- pens because it was taken off the transponder too quickly.
  • Page 24 Proceed with „T10 and VPOS switched on, but no serial connection“ If the serial connection between Vectron T10 and POS system is interrupted, the POS system shows an error message of the exter- nal device. If the serial connection between Vectron T10 and POS system is...

  • Page 25: Service And Maintenance

    8. S er v ic e and main t enanc e Except for cleaning the housing the user is not allowed to maintain or repair the components of the Vectron Transponder reader-/ writer T10. Please leave all maintenance and repair to your Vec- tron dealer. Danger!

  • Page 26: Eu-Declaration Of Conformity

    V E C T RON T10 9. EU - Declar a t ion o f c on f or mi t y Manufacturer Vectron Systems AG Willy-Brandt-Weg 41 D-48155 Münster Device type External Transponder reader-/writer Type designation Vectron T10 The manufacturer declares that the above designated product...
