MTX RFL Series Quick Start Manual

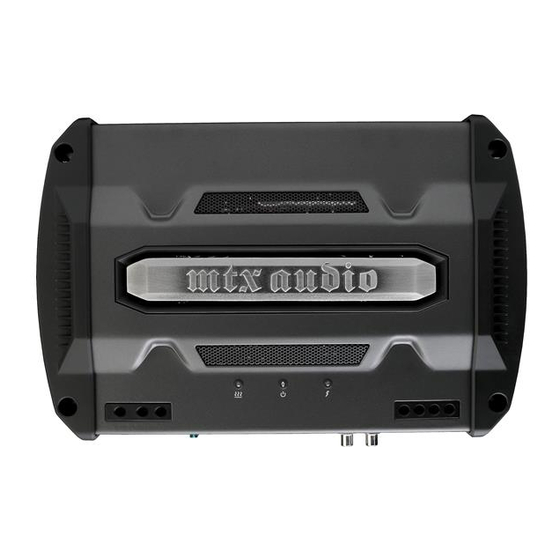

RFL805 – 800 WATT 5-CHANNEL, RFL AMPLIFIER
MTX WARRANTY STATEMENT
MTX RFL amplifiers purchased in the USA from an authorized MTX dealer are guaranteed against defects in material and workmanship for the period of 1
year if installed by an authorized MTX dealer (90 days if by customer). The warranty period begins the day the product is purchased by the end user. This
warranty is limited to the original retail purchaser of product. Product found to be defective during that period will be repaired or replaced by MTX at no
charge. This warranty is void if it is determined that unauthorized parties have attempted repairs or alterations of any nature. Warranty does not extend to
cosmetics or finish. Before presuming a defect is present in the product, be certain that all related equipment and wiring is functioning properly. MTX
disclaims any liability for other incurred damages resulting from product defects. Any expenses in the removal and reinstallation of products are not
covered by this warranty. MTX's total liability will not exceed the purchase price of the product. If a defect is present, your authorized MTX dealer may be
able to effect repairs.
Proof of purchase is required when requesting service, so please retain your sales receipt, and take a moment to register your product online at MTX.com.
Also, a Return Authorization number (RA) is required before shipping product back to MTX, call 800-225-5689 or 602-438-4545, for amplifier RAs.
REQUIRED
INSTALLATION
TOOLS
OFF ON
Aftermarket Head Unit
(Remote turn-on wire connected)
FRONT CHANNELS
GAIN
Adjustable
Wrench
5V 0.25V
Adjust input sensitivity
to match source unit
Power
Drill
GAIN
HP/FULL
Utility
Knife
5V 0.25V
Adjust input sensitivity
to match source unit
SUB
Crimper
GAIN
SONIC
5V 0.25V 20Hz
Adjust input sensitivity Adjust Sub Sonic
Allen Wrench
to match source unit
filter frequency
1
2
SETTINGS
SMART ENGAGE™
OFF ON
Factory Head Unit
(Remote turn-on wire not connected)
HP
HP/FULL
40Hz 8kHz
Adjust High Pass
crossover frequency
REAR CHANNELS
HP LP
LP/FULL
40Hz 8kHz 40Hz 5kHz
Adjust High Pass Adjust Low Pass
crossover frequency crossover frequency
BANDPASS
SUB CHANNELS
BASS
LPF
BOOST
40Hz 200Hz
50Hz 0dB 12dB
Adjust Bass Boost Adjust Low Pass
to increase bass response crossover frequency
PROBLEMS, QUESTIONS, CONCERNS, SUGGESTIONS? CALL 1-800-CALLMTX

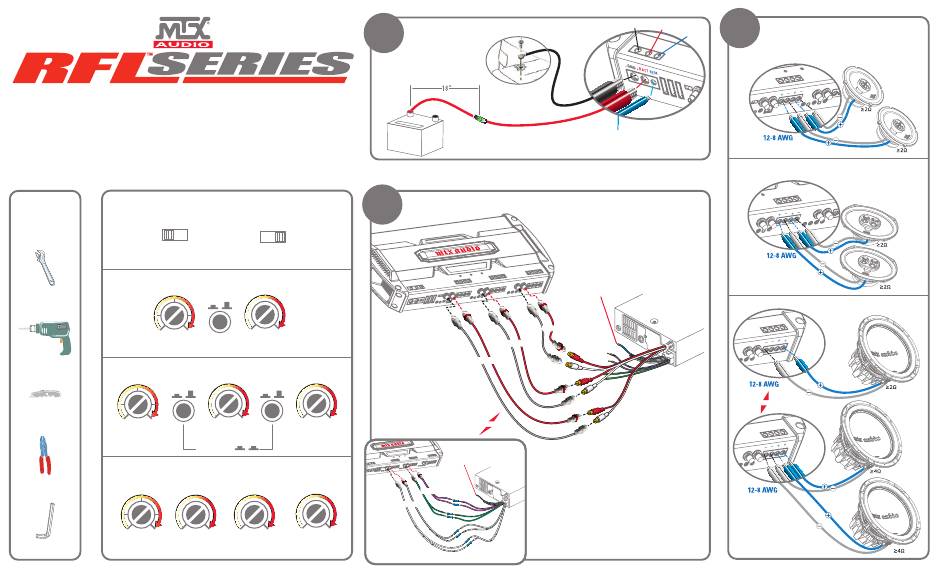

CONNECT POWER
Ground To
Metal of Vehicle
(Remove Paint
From Metal)
Disconnect Battery Negative (–) Cable
Prior to Installing Amplifier
(Reconnect after step 3)
C ON N E CT SI GN A L
REMOTE TURN-ON
/POWER ANTENNA WIRE
SUB SUB
REAR REAR
FRONT FRONT
FRONT
OR
(Do not use with
Smart Engage™ RCA
to Line Level Adapters)
REAR REAR
FRONT FRONT
NOTE: The RFL805 automatically senses the number of inputs
connected and optimizes itself to play all 5 channels
even if only one set of RCAs is connected.
3
4 AWG
CONNECT SPEAKER(S) & SUB(S)
4 AWG
16 AWG
SEPARATES/COAXIAL
Connect to Source
Unit Remote Turn-on
/Power Antenna Wire
Source Unit
OR
FRONT STEREO
SEPARATES/COAXIAL REAR STEREO
SUBWOOFER(S)
MTX002963 RevB 4/10 NDM582
