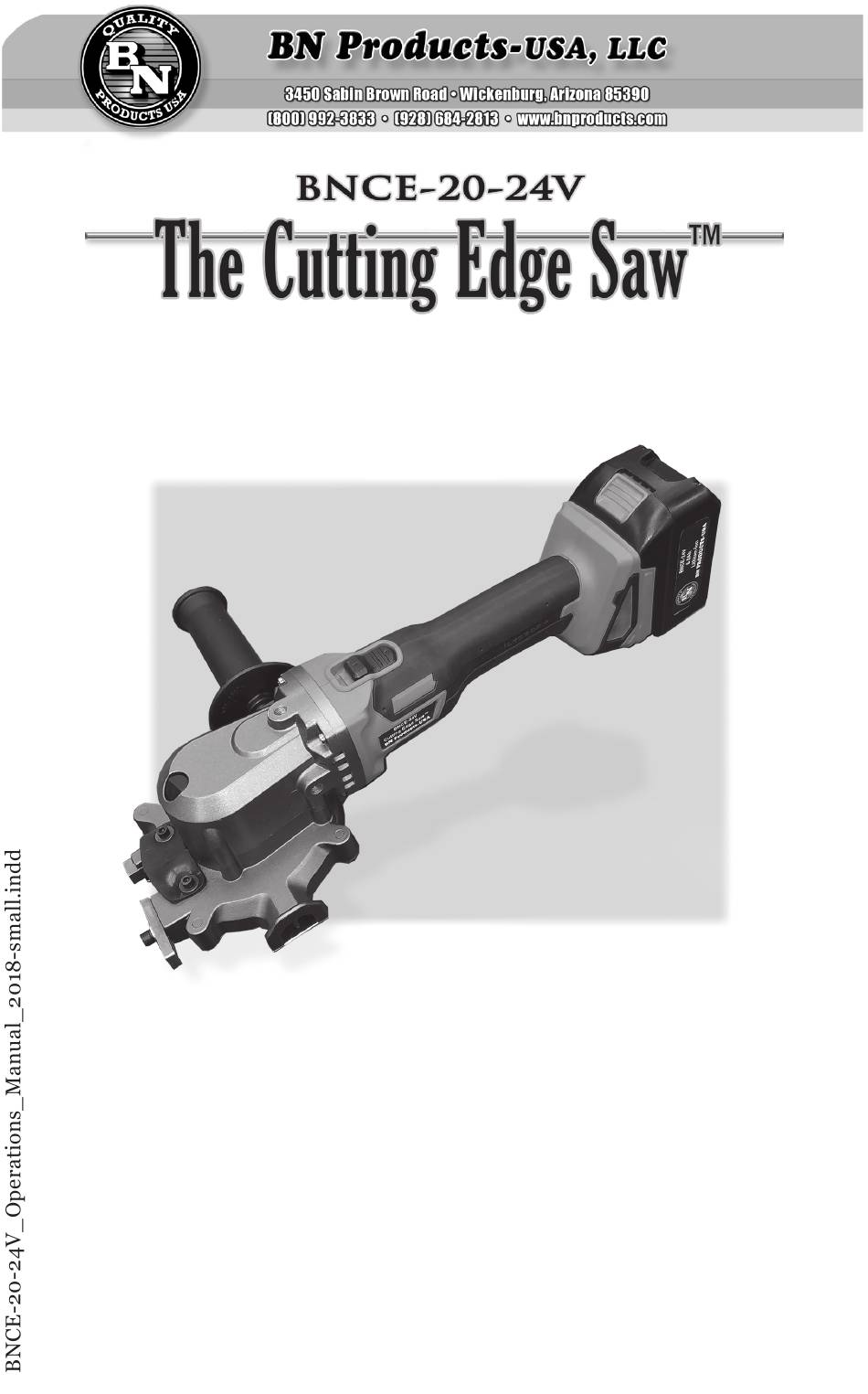

- Page 1 Operation & Instruction Manual Model BNCE-20-24V SN#___________ Cordless Cutting Edge Saw™ Keep this booklet and enter your tool serial number in the appropriate space above. Page | 1...
-
Page 2: Table Of Contents
Instruction Manual Please read this manual before operating this tool. Contents General Safety Rules Work Area Safety Electrical Safety Service Functions and Applications Specification Standard Blade: Operation Operation Instructions Maintenance of the Main Unit RB-BNCE-KNH Blade General Operating Cautions Abnormal Display Mode Function Fuel Gauge Installing and removing battery Charging... -
Page 3: General Safety Rules
General Safety Rules Warning! Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury. PLEASE SAVE THESE INSTRUCTIONS! Work Area Safety • Keep work area clean and well lit. Cluttered or dark areas invite accidents. •... -
Page 4: Service
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust- related hazards. • Keep fingers and body parts away from the blade opening. Power Tool Use and Care •... -
Page 5: Functions And Applications
If anything is missing or damaged please do not return this packaged unit to the distribu- tor, please call the Benner-Nawman customer service department: 800-992-3833 or 928-684-2813 Functions and Applications This section describes the functions, applications, service environment and other aspects of the Cutting Edge Saw. -
Page 6: Operation Instructions
!DANGER: The Cutting Edge is not a waterproof power tool. If it becomes wet, the power source system may become faulty or the operator may get an electric shock. Therefore, when it is raining or snowing, never operate this saw outdoors, on top of buildings or under roofs where rain or snow enters freely. -
Page 7: Maintenance Of The Main Unit
An optional Steel Mesh Blade is available to improve the cutting capability of the BNCE- 20-24V when cutting mesh materials. (RB-BNCE-MESH)Please see your distributor or call BN Products-USA, LLC (www.bnproducts.com) for more information. General Operating Cautions The following describe the general cautions on operating tool. Always observe the cau- tions stated in each item. -
Page 8: Abnormal Display Mode Function
• Do not operate charger with damaged cord or plug. If the cord or plug is damaged, ask BN Products-USA authorized service center to replace it in order to avoid a hazard. • Do not operate or disassemble charger if it has received a sharp blow, been dropped, or otherwise damaged in any way;... -
Page 9: Fuel Gauge
Fuel Gauge If you press the switch on the bottom of the power tool, the LED light will turn off after a few seconds. Check the battery level as follows. Page | 9... -
Page 10: Installing And Removing Battery
Installing and removing battery Do not use force when inserting the battery. To insert the battery, align the tongue on the battery with the groove in the housing and slip into place. Always insert it all the way until it locks in place with a little click. If not, it may accidentally fall out of the tool. Page | 10... -
Page 11: Charging
After charging, remove the battery cartridge from charger and unplug the charger. • NOTE: The battery charger is for charging BN Products-USA-battery cartridge. Never use it for other purposes or for other manufacturer’s batteries. If charging light flashes red/green, battery condition is as below and charging may not start. -
Page 12: Charger Troubleshooting
2. The green LED flickering when the battery is applied. • Low temperature: Let stand at room temperature until normal temperature. If Checking does not solve the problem, please contact BN Products-USA, LLC or an au- thorized service center nearest you. •... -
Page 13: Exploded View
Exploded View Page | 13... -
Page 14: Parts List
Parts List Parts List for BNCE-20-24V Description Part No. Hexagon Socket Countersunk BNCEP1-71 Head Bolt M5x15 (class 12.9) Blade Cover BNCEP1-72 Hexagon Socket Countersunk BNCEP1-73 Head Bolt M5x8 (class 12.9) Blade RB-BNCE-KNH Hub-New Style w/ BNCEP1-75 Cutting Blade Spindle BNCEP1-75 Hexagon Socket Head Cap BNCEP-07 Head Screw M5x30... - Page 15 Parts List for BNCE-20-24V Description Part No. Aluminum Housing BNCEP1-77 Ball Bearing-628-2Z BNCEP24V-26 Gear Shaf BNCEP24V-27 Big Bevel Gear BNCEP24V-28 Pin-A5x16 BNCEP-29 Alunmium Gear Box Housing BNCEP24V-30 Steel Ring-5mm BNCEP-31 Spring for Lock Button BNCEP-32 Locking Button BNCEP-33 Six Flower Shaped Pan Head BNCEP24V-34 Tapping ScrewsT15 Hex Nut...

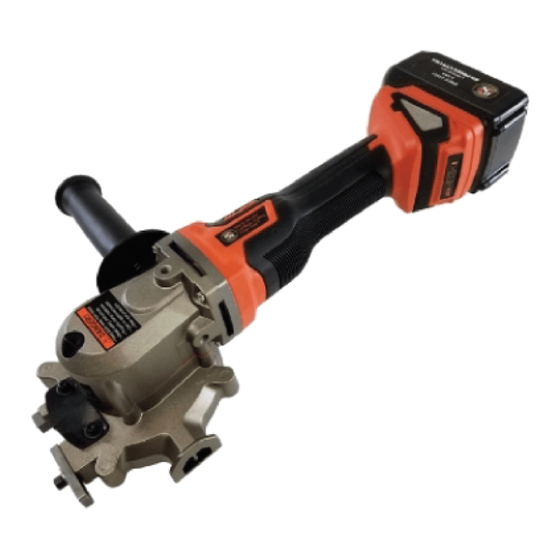

- Page 16 Removable Side Handle (Three Positions) Safety Trigger Switch Blade Spindle Locking Button Cutting Slot Opening And Blade Lithium-Ion 24V Battery (2) With Charger Adjustable Slot For Cutting Flush Cutting Bottom Plate Special Tungston Chip Exhaust Port (shown without Carbide Tipped Cutting Blades attachable Cutting Chip Catch Bag) Model No.
