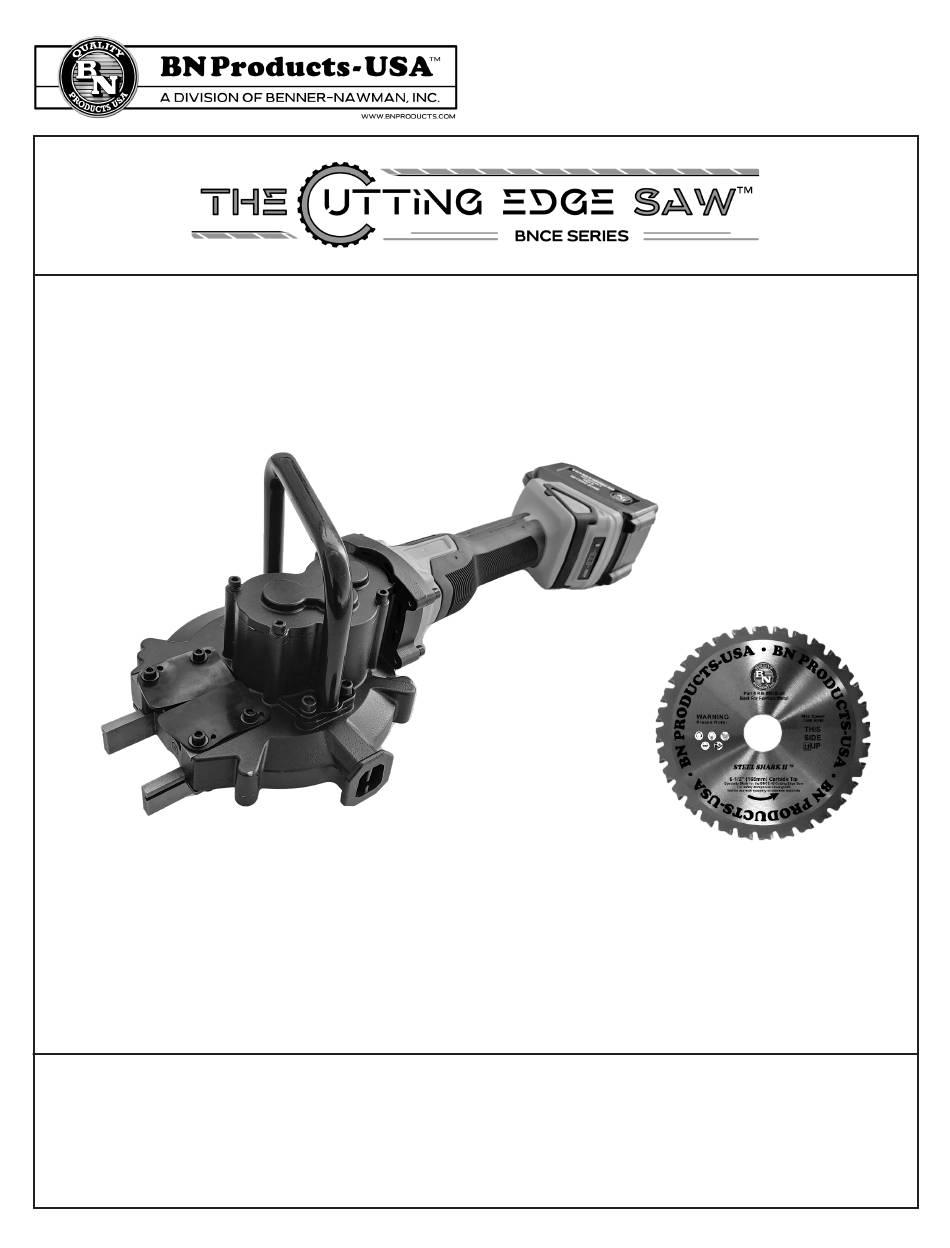

- Page 1 24V CORDLESS | 45 | MULTI-MATERIAL SAW MODEL BNCE-45-24V SN#_______________________________ Keep this booklet and enter your tool serial number in the space provided above. BN Products-USA™ OPERATOR & 3450 N. Sabin Brown Road INSTRUCTION MANUAL Wickenburg, AZ 85390 (800) 992-3833 www.BNProducts.com...
-
Page 2: Table Of Contents
BNCE-45-24V Cutting Edge Saw™ Customer Service: (800) 992-3833 mail@bnproducts.com OPERATOR & INSTRUCTION MANUAL Please read this manual before operating this tool. TABLE OF CONTENTS External Parts and Specifications (General) Battery Charging/Charge Indicators Purpose of this Manual Battery Installation & Removal Safety Instructions and General Guidelines Using the BNCE-45-24V Cutting Edge Saw™ Work Area Safety Operating Conditions Electrical Safety... -
Page 3: Purpose Of This Manual
BNCE-45-24V Cutting Edge Saw™ Customer Service: (800) 992-3833 mail@bnproducts.com as pipes, radiators, ranges and refrigerators. Purpose of this Manual There is an increased risk of electric shock if your body is earthed or grounded. This manual is intended to provide users with •... -
Page 4: Power Tool Use & Care
• Store idle power tools out of the reach of please call BN Products-USA™ Customer Service children and do not allow persons unfamiliar department: (800) 992-3833. with the power tool or these instructions to operate the power tool. -
Page 5: Battery Charging/Charge Indicators
BNCE-45-24V Cutting Edge Saw™ Customer Service: (800) 992-3833 mail@bnproducts.com Battery Charging • The battery ships with only a very small charge. It is necessary to charge the battery fully before first- time use. • Plug the battery charger into a proper AC voltage source. The charging light will start blinking green. • Insert the battery cartridge into charger. •... - Page 6 BNCE-45-24V Cutting Edge Saw™ Customer Service: (800) 992-3833 mail@bnproducts.com Figure B Figure C Installation and Removal of Battery from the Cutting Edge Saw™ Make sure that the battery guides are free of debris or packaging materials before attempting to install the bat- tery.
- Page 7 BNCE-45-24V Cutting Edge Saw™ Customer Service: (800) 992-3833 mail@bnproducts.com Figure D BNCE-45-24V_Operations_Manual.indd January 8, 2024 Page | 7...
-
Page 8: Using The Bnce-45-24V Cutting Edge Saw
BNCE-45-24V Cutting Edge Saw™ Customer Service: (800) 992-3833 mail@bnproducts.com temperature of 100°F (37° C). Operation at higher Using the BNCE-45-24V Cutting Edge Saw™ temperature may cause the tool motor to overheat. To use the tool to its fullest performance, the Operation in extreme temperature or high humidity Cutting Edge Saw™... - Page 9 Always disconnect the 24V battery from the saw • Install the new blade over the spindle at the before attempting any maintenance. center opening. BN Products-USA™ blades will • Clean the entire unit occasionally by removing be marked “This Side Up” to ensure that the dust, debris and oils.
- Page 10 BNCE-45-24V Cutting Edge Saw™ Customer Service: (800) 992-3833 mail@bnproducts.com Figure 2 - Blade Cover Fasteners Figure 3 - Blade Spindle / Allen Wrench Figure 4 - Blade Directional Arrow BNCE-45-24V_Operations_Manual.indd January 8, 2024 Page | 10...
-
Page 11: General Precautions
Customer Service: (800) 992-3833 mail@bnproducts.com General Precautions • Use only replacement saw blades recommended The following describe the general cautions on by BN Products-USA™. Recommended blades operating tool. Always observe the cautions stated are designed specifically for the tool, and have in each item. been tested for safety and effective use with the Cutting Edge Saw™... -
Page 12: Parts Guide
BNCE-45-24V Cutting Edge Saw™ Customer Service: (800) 992-3833 mail@bnproducts.com Parts Guide BNCE-45-24V Exploded View (Parts Drawing) BNCE-45-24V_Operations_Manual.indd January 8, 2024 Page | 12... - Page 13 BNCE-45-24V Cutting Edge Saw™ Customer Service: (800) 992-3833 mail@bnproducts.com BNCE-45-24V Cutting Edge Saw™ Parts List Part # Description Part # Description 102560 Screw With Spring Washer M4*12 102595 Top Cover Of Gear Box Top Cover 102561 Guide Post Plate 102596 Bolt With Spring Washer&Flat Washer M5X16 102562 Stop Nut M8 102597 Nut M6 102563...
- Page 14 BNCE-45-24V Cutting Edge Saw™ Customer Service: (800) 992-3833 mail@bnproducts.com EXTERNAL PARTS DIAGRAM (Enlarged) ___________________________________________________________________________________________________ ___________________________________________________________________________________________________ ___________________________________________________________________________________________________ ___________________________________________________________________________________________________ ___________________________________________________________________________________________________ ___________________________________________________________________________________________________ ___________________________________________________________________________________________________ BNCE-45-24V_Operations_Manual.indd January 8, 2024 Page | 14...
- Page 15 BNCE-45-24V Cutting Edge Saw™ Customer Service: (800) 992-3833 mail@bnproducts.com Notes: ___________________________________________________________________________________________________ ___________________________________________________________________________________________________ ___________________________________________________________________________________________________ ___________________________________________________________________________________________________ ___________________________________________________________________________________________________ ___________________________________________________________________________________________________ ___________________________________________________________________________________________________ ___________________________________________________________________________________________________ ___________________________________________________________________________________________________ ___________________________________________________________________________________________________ ___________________________________________________________________________________________________ ___________________________________________________________________________________________________ ___________________________________________________________________________________________________ ___________________________________________________________________________________________________ BNCE-45-24V_Operations_Manual.indd January 8, 2024 Page | 15...
- Page 16 ONE-YEAR LIMITED MANUFACTURER WARRANTY BN Products-USA™ warrants each tools to the original purchaser to be free of defects in materials and workmanship under everyday and appropriate use and service for one year. Use the applicable QR code or web URL below to access our full One-Year Warranty policy and procedure, or to complete a Warranty Service Request for this product.
