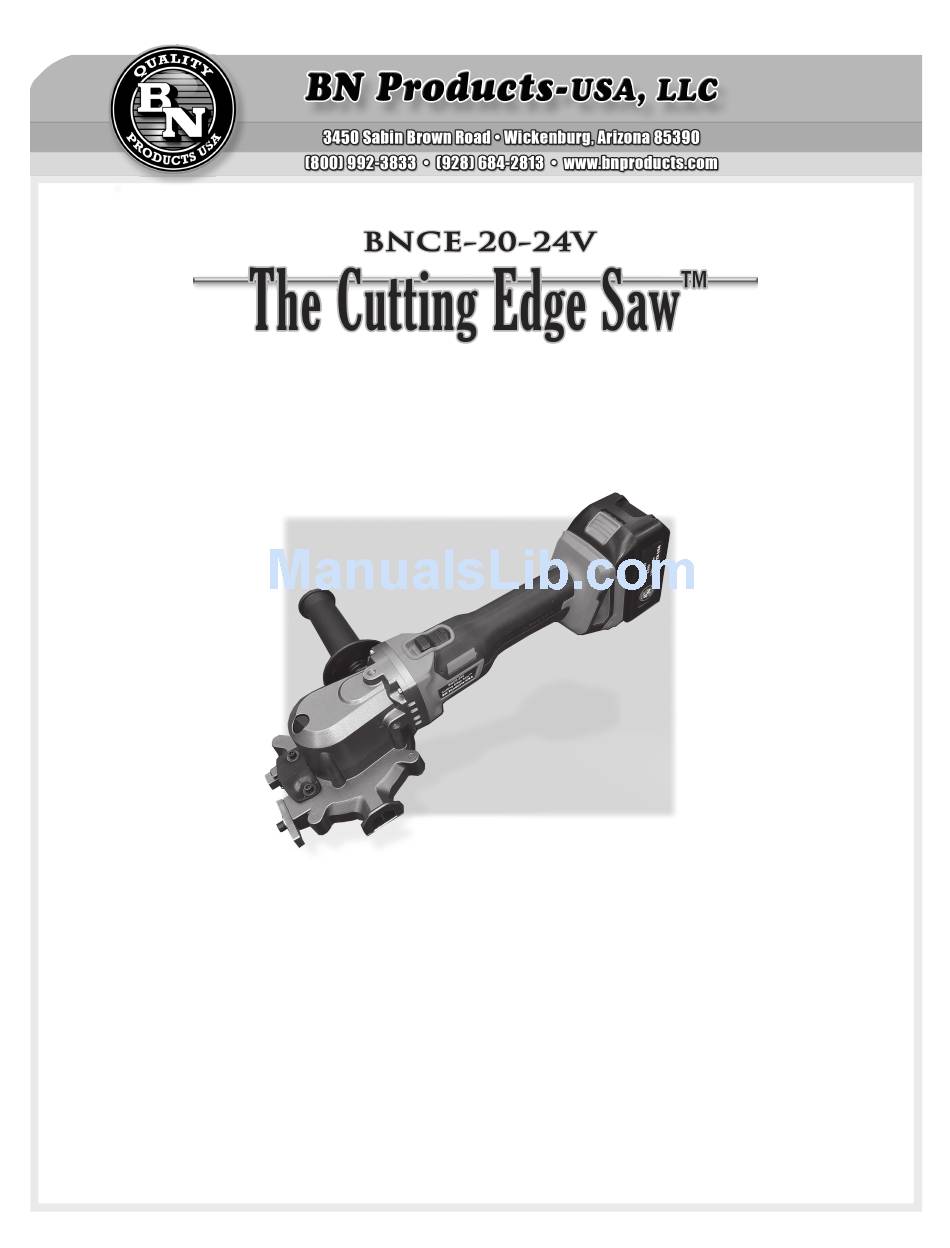

- Page 1 Operation & Instruction Manual Model BNCE-20-24V SN#___________ Cordless Saw Keep this booklet and enter your tool serial number in the appropriate space above. BNCE-20-24V_Operations_Manual_2018.indd ~ Page | 1 ~...
-
Page 2: Table Of Contents
Instruction Manual Please read this manual before operating this tool. Contents General Safety Rules Work Area Safety Electrical Safety Service Functions and Applications Specification Standard Blade: Operation Operation Instructions Maintenance of the Main Unit RB-BNCE-KNH Blade General Operating Cautions Abnormal Display Mode Function Fuel Gauge Installing and removing battery Charging... -
Page 3: General Safety Rules
General Safety Rules hard hat, or hearing protection used for ap- propriate conditions will reduce personal injuries. Warning! Read and understand all Prevent unintentional starting. Ensure the instructions. Failure to follow all • switch is in the off-position before connecting instructions listed below may result to power source and/or battery pack, picking in electric shock, fire and/or serious... -
Page 4: Service
Specification BNCE-20-24V Cutting Edge Saw with blade • mounted : 1 unit The power tool is a multipurpose saw with an Removable Side Handle and chip collector •... -
Page 5: Standard Blade
ity or extremely cold temperature conditions. The Standard Blade: tool is designed for use under an allowable envi- (Best for Ferrous Metals) ronmental temperature of 0 to 120°F.Operation at higher temperature may cause the tool’s main Supplied with (2) each 110 mm Blade diameter × unit to overheat. -
Page 6: Rb-Bnce-Knh Blade
Input A.C. 120 V 50-60 Hz Output D.C. 14.4V - 21.6V The Blade for the BNCE-20-24V Cutting Edge Weight 1 lbs. (.45 kgs) Saw™ should be replaced when the blade is dull or chipped and a noticeable increase in cutting Manufacturer reserves the right to change time has occurred. -
Page 7: Abnormal Display Mode Function
• After charging or before attempting any main- tenance or cleaning, unplug the charger from the power source. Pull by plug rather than cord whenever disconnecting charger. • Make sure cord is located so that it will not be stepped on, tripped over, or otherwise sub- jected to damage or stress. -
Page 8: Installing And Removing Battery
Installing and removing battery NOTE: The battery charger is for charging BN Products-USA-bat- Do not use force when inserting the battery. To tery cartridge. Never use it for insert the battery, align the tongue on the battery other purposes or for other manu- with the groove in the housing and slip into place. -
Page 9: Charger Troubleshooting
If Checking does not solve the problem, please Power tools and batteries that are contact BN Products-USA, LLC or an authorized no longer usable must be collected service center nearest you. separately and disposed of in and envir onmentally correct manner. -
Page 10: Exploded View
Exploded View ~ Page | 10 ~... -
Page 11: Parts List
Parts List Parts List for BNCE-20-24V Parts List for BNCE-20-24V No. Description Part No. No. Description Part No. Aluminum Housing BNCEP1-77 Hexagon Socket Coun- BNCEP1-71 tersunk Head Bolt M5x15 Ball Bearing-628-2Z BNCEP24V-26 (class 12.9) Gear Shaf BNCEP24V-27 Blade Cover BNCEP1-72... - Page 12 For Cutting Special Tungston Chip Exhaust Port (shown without Carbide Tipped Cutting Blades attachable Cutting Chip Catch Bag) Model No. BNCE-20-24V Cutting Edge Saw™ Power Supply 24V Lithium-Ion Battery (2 Supplied) No-Load Blade Speed 2,000 RPM Max Cutting Capacity 3/4” (20mm)
