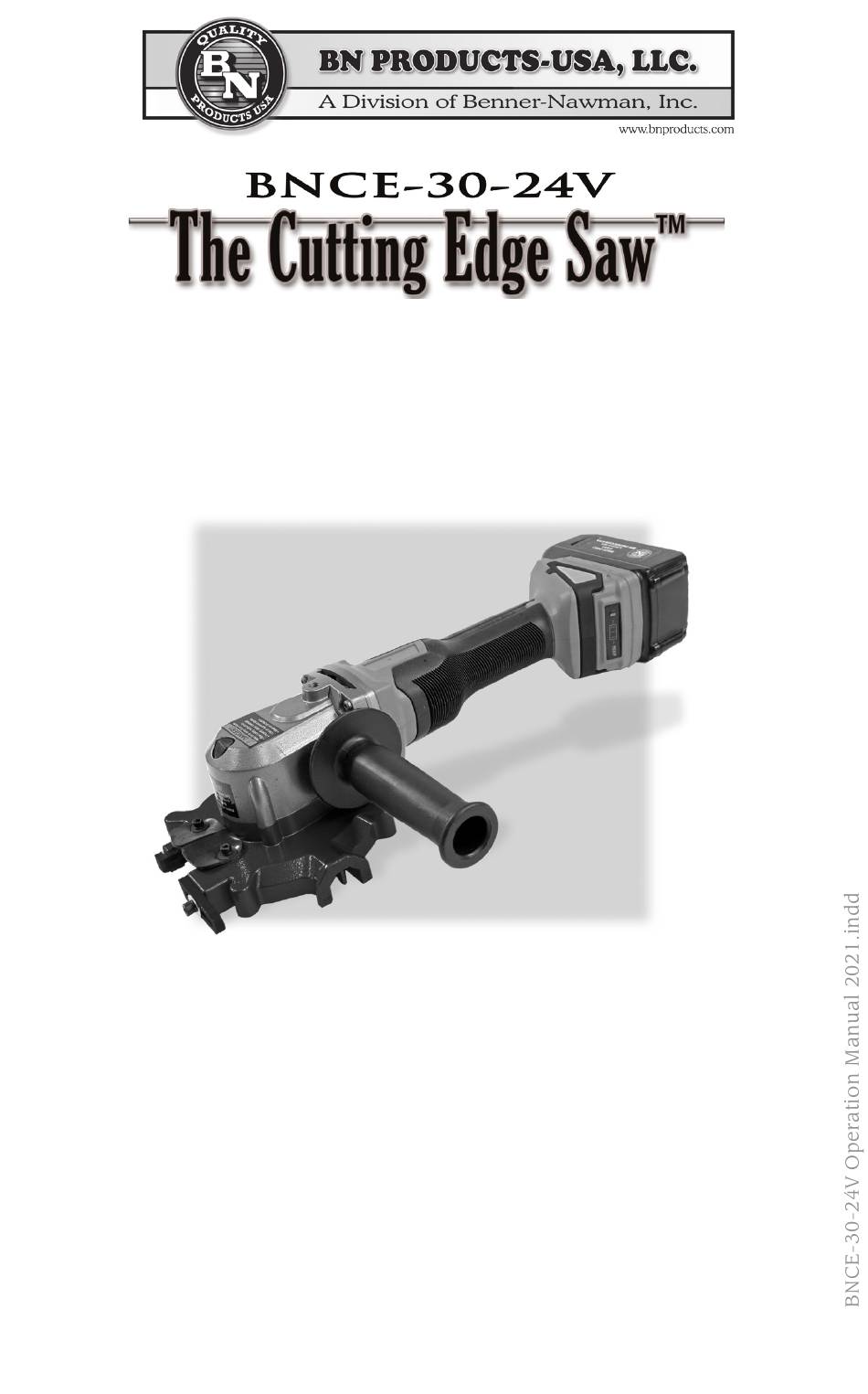

- Page 1 Operation Manual Model BNCE-30-24V SN#___________ Cordless Cutting Edge Saw™ Please keep this booklet and enter your tool serial number in the space above. Page | 1...
-
Page 2: Table Of Contents
Instruction Manual Please read the manual before operating this tool. Contents General Safety Rules Work Area Safety Electrical Safety Personal Safety Power Tool Use and Care Service Functions and Applications Specification Standard Blade Operation Operation Instructions Maintenance of the Main Unit General Operating Cautions Important Safety Instructions BNCE-24VCHGR Battery Charger... -
Page 3: General Safety Rules
General Safety Rules Warning! Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire, or serious personal injury. PLEASE SAVE THESE INSTRUCTIONS! Work Area Safety Keep work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flam- mable liquids, gases or dust. -
Page 4: Power Tool Use And Care
Cutting Edge Saw, open the carrying case and check the contents for the following: • BNCE-30-24V Cutting Edge Saw with blade mounted • Removable Side Handle and Chip Collector Attachment • Allen Wrenches for Blade Removal and Installation •... -
Page 5: Functions And Applications
Cutting Edge Saw can be used for are as follows: The BNCE-30-24V can cut up to 1” grade 60 rebar (reinforcing bars, up to 3/5” I.D pipe, 1” O.D. copper water pipe, 1” O.D. tubing, 3/4” EMT conduit, 1” square steel tubing and bar, up to 1”water pipe sch40 and schedule 80, up to 1-1/8”... -
Page 6: Operation Instructions
Operating Instructions Attach the front handle in the mounting hole that provides the best grip. To operate the trigger, depress the trigger to start the saw. Start the saw before cutting, and then apply a light pressure moving forward through the cut. Do not use excessive force. ! DANGER: Electric Shock Hazard. -
Page 7: General Operating Cautions
2/3 full of cut material. RB-BNCE-30 Blade The Blade for the BNCE-30-24V Cutting Edge Saw™ should be replaced when the blade is dull or chipped and a noticeable increase in cutting time has occurred. To change the Blade, remove the screws that hold the Blade Cover to the Body. Next, re- move the cover and unscrew the four bolts holding the blade to the Hub. -
Page 8: Bnce-24Vchgr Battery Charger
• Do not operate charger with damaged cord or plug. If the cord or plug is damaged, ask BN Products-USA authorized service center to replace it to avoid a hazard. • Do not operate or disassemble the charger if it has received a sharp blow, been dropped, or otherwise damaged in any way;... - Page 9 Fuel Gauge Page | 9...
-
Page 10: Installing Or Removing The Battery
If you press the switch on the bottom of the power tool, the LED light will turn off after a few seconds. Check the battery level as follows. Installing or Removing the Battery Do not use force when inserting the battery. To insert the battery, align the tongue with the groove in the housing and slip it into place. -
Page 11: Charger Light
• After charging, remove the battery cartridge from the charger and unplug the charger NOTE: The battery charger is for charging BN Products-USA battery cartridge only. Never use it for other purposes or other manufacturer’s batteries. If the charging light flashes red/green, this indicates that the battery may be damaged and cannot be charged. -
Page 12: Environmental Protection
2. The green LED flickering when the battery is inserted. • Low temperature: Let stand at room temperature until normal temperature. • If Checking does not solve the problem, please contact BN Products-USA, LLC or an authorized service center nearest you.
