Mounts by
A division of David Engineering & Mfg. Inc.
Model
UPM50 PROJECTOR MOUNT CEILING/WALL
Thank you for purchasing the PDR Projector mount with the exclusive "Bayonet locking system" (patent applied for)
To ensure the correct usage, please read and follow the instructions manual thoroughly. Please store the instructions in a safe place for future reference.
All PDR mounts and adapters carry a limited lifetime warranty from ship date against defects in material and workmanship.
We are not liable for improper installation that results in damage to mounts, adapters or presentation equipment.
Special techniques are necessary for installation of the panel display mount.
Do not attempt to perform this work by yourself.
Request an installation specialist to install this unit.
Manufacturer assumes absolutely no responsibility for injuries and damages that may occur due to improper installation and handling.
Please remember that if you remove the mount from the wall/ceiling later, you will find the screw holes and anchor bolts for the
mounting unit left on the wall.
To ensure customer safety, be sure to decide the installation location so that the strength is sufficient to withstand the weight of both the projector
and the mount.
Fully tighten all of the mounting screws as specified in the instructions.

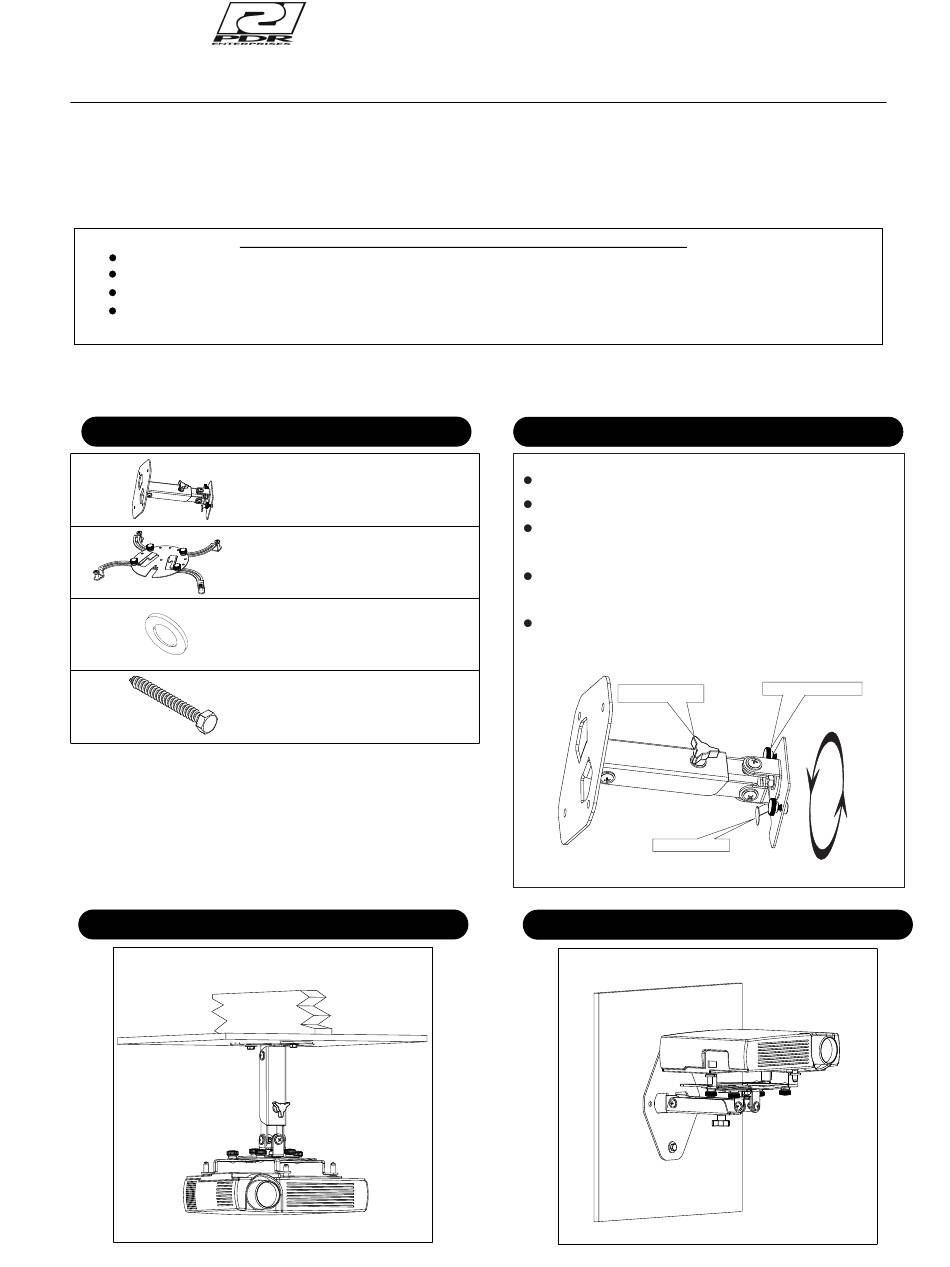

Parts Configuration Chart
A
Universal adapter plate assembly 1pc
B
SEE SHEET 3 FOR INSTRUCTIONS
C
D
Projector ceiling mount application fig 1
Fig 1
Projector mount 1 pc
5/16" Flat washers...4 pcs
5/16" x 2 1/2" Lag bolts ...4 pcs
(Note: used with the 5/16" Flat washers C).
Simple to adjust no tools required
Applications for wall or ceiling mounting
Adjustable height from 2 1/2" to 12"
(adapter req. For additional height)
Pitch + yaw adjustments and 360 deg.
rotation
Quick projector removal with exclusive
"Bayonet locking system"
Slide adjustment
Projector wall mounting application fig 2
Fig 2
1
Features
Locking thumb screw
Safety lever
Rotate 360 deg
Advertisement
Related Manuals for David Engineering & Mfg PDR UPM50
Summary of Contents for David Engineering & Mfg PDR UPM50
- Page 1 Mounts by A division of David Engineering & Mfg. Inc. Model UPM50 PROJECTOR MOUNT CEILING/WALL Thank you for purchasing the PDR Projector mount with the exclusive “Bayonet locking system” (patent applied for) To ensure the correct usage, please read and follow the instructions manual thoroughly. Please store the instructions in a safe place for future reference. All PDR mounts and adapters carry a limited lifetime warranty from ship date against defects in material and workmanship.
-
Page 2: Installation Location
INSTALLATION LOCATION WARNING The wall where the mount is to be installed must be capable of long-term support of the total load of the projector and mount. Measures should be taken to ensure sufficient strength to withstand the force of earthquakes , vibrations and other external forces. Note: Incorrect installation can cause the projector mount to fall and cause injury. - Page 3 ADAPTER PLATE ASSEMBLY 1: Start by screwing the leveling barrels ( F ) into the Adjustable arm (Q and R). A screwdriver slot is provided in the barrel ( F ) .The barrels only need to be threaded approx. 1/8 “ through the bottom of the arm (Q and R) If the mounting plane of the projector is not flat ,the barrels can be adjusted to make up the difference in height.
-
Page 4: Projector Assembly
1. FASTEN THE PROJECTOR MOUNT TO WALL The bracket must be secured to the wall studs capable of at least (5) times the weight of the projector + mount. Locate the wall or ceiling stud using a stud finder. Insure ( D ) ( C ) you find the center of the stud. -
Page 5: Height Adjust
3. MOUNT THE PROJECTOR ASSEMBLY TO THE PROJECTOR MOUNT Place the projector assembly into the bayonet slots on the mount ( small end into large end) and slide backward until the safety lever engages fig 5. Adjust the thumb screws to secure the mount to the projector. To remove loosen the thumb screws and lift the safety lever, slide the unit forward and out.
