PMSW50U SIDE WINDER® PROJECTOR MOUNT
Thank you for purchasing the PDR Projector mount with the exclusive "Bayonet locking system".
To ensure the correct usage, please read and follow the instructions manual thoroughly. Please store the instructions in a safe place for future reference.
All PDR mounts and adapters carry a lifetime warranty against defects in material and workmanship. We are not liable for
improper installation that results in damage to mounts, adapters or presentation equipment.
Special techniques are necessary for installation of the mount.
Do not attempt to perform this work by yourself.
Request an installation specialist to install this unit.
Manufacturer assumes absolutely no responsibility for injuries and damages that may occur due to improper installation and handling.
Please remember that if you remove the mount from the wall/ceiling later, you will find the screw holes and anchor bolts for the
mounting unit left on the ceiling.
To ensure customer safety, be sure to decide the installation location so that the strength is sufficient to withstand the weight of both the projector
and the mount.
Fully tighten all of the mounting screws as specified in the instructions.

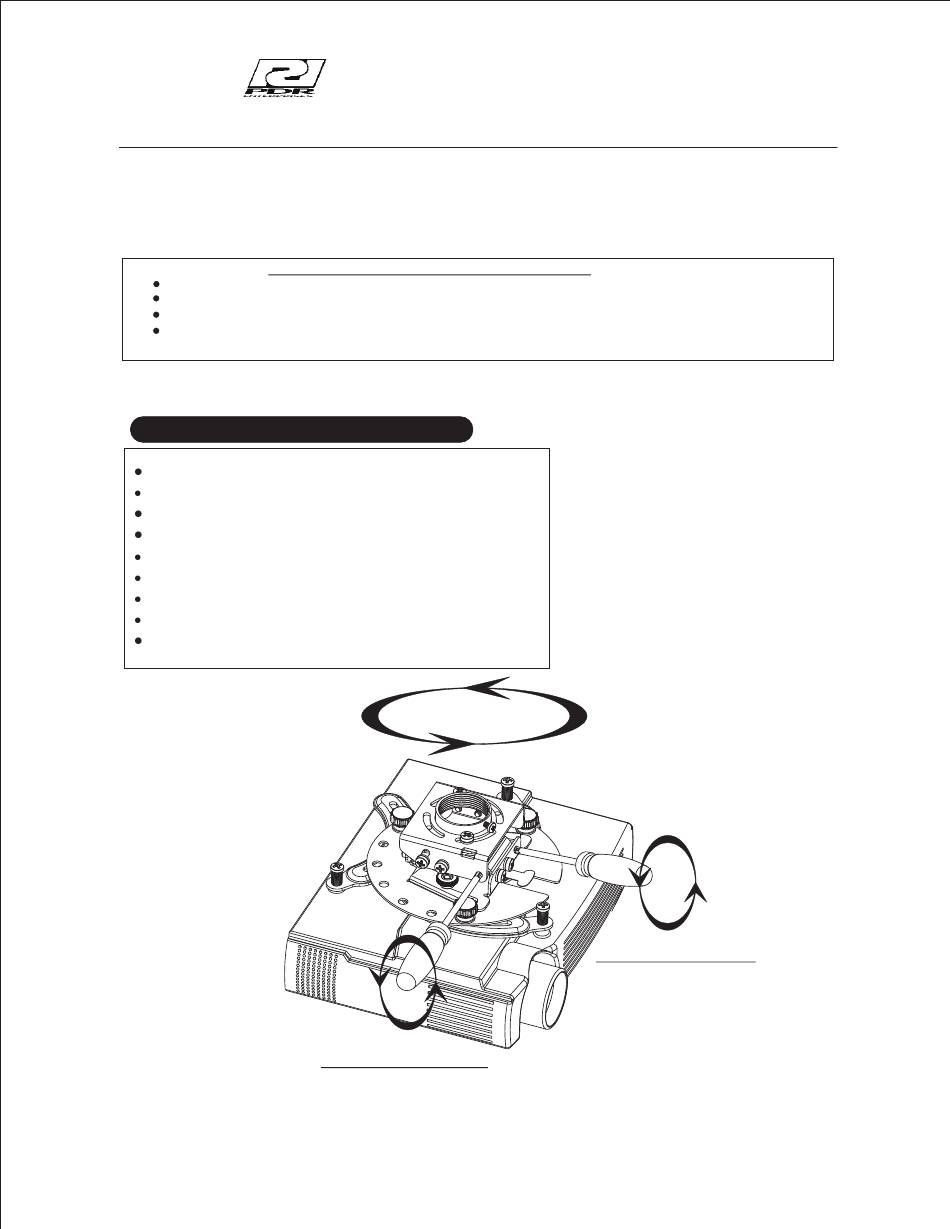

Features
Simple precision adjustments
2 3/8 "
Low profile
1 ½"NPT-ready or flush mount
Micro adjustment +30° -5° Pitch *
Micro adjustment + -5° yaw *
360 ° rotation
55 lb load rating
Lateral shift capable
Quick projector removal with exclusive " Bayonet lock "
* "Patent Pending Micro Adjustment"
Rotate 360 deg
Micro pitch adjustment
1
Micro yaw adjustment

Advertisement

loading

Summary of Contents for David Engineering & Mfg PDR SIDE WINDER PMSW50U

  • Page 1 Mounts by A division of David Engineering & Mfg. Inc. Model PMSW50U SIDE WINDER® PROJECTOR MOUNT Thank you for purchasing the PDR Projector mount with the exclusive “Bayonet locking system”. To ensure the correct usage, please read and follow the instructions manual thoroughly. Please store the instructions in a safe place for future reference. All PDR mounts and adapters carry a lifetime warranty against defects in material and workmanship.
  • Page 2: Installation Location

    INSTALLATION LOCATION WARNING The ceiling where the mount is to be installed must be capable of long-term support of the total load of the projector and mount. Measures should be taken to ensure sufficient strength to withstand the force of earthquakes, vibrations and other external forces. Note: Incorrect installation can cause the projector mount to fall and cause injury.
  • Page 3: Product Specifications

    PRODUCT SPECIFICATIONS PMSW50U SIDE WINDER® PROJECTOR MOUNT 2.36 5° PITCH 30° PITCH 5° ROLL 5° ROLL Ø 16.250...
  • Page 4 ADAPTER PLATE HARDWARE Leveling barrels 4 pcs Fig 1 1/4-20 x 5/8 carriage bolts 4 pcs 9/32” x 47/64” Nylon washer 4 pcs G,H,I,J 4.3 mm x 8.9mm steel washer 4pcs 2.7mm x 6mm steel washer 4 pcs Black plastic knob 4 pcs M6 x 25mm Pan Head Philips machine Screw 4 pcs M4 x 25mm Pan Head Philips machine Screw 4 pcs M 3 x 25mm Pan Head Philips machine Screw 4 pcs...
  • Page 5 1. FASTEN THE PROJECTOR MOUNT TO 1 ½”NPT PIPE 1: The bracket must be secured to a ceiling structure capable of at least (4) times the weight of the projector + mount. 2: Screw the bayonet sub assembly onto the 1 ½” NPT pipe (not supplied). 3: Secure with the locking set screw making sure the sub assembly safety lever is facing the front of the projector.
  • Page 6: Projector Assembly

    3. ATTACH THE ADAPTER PLATE TO THE PROJECTOR. 1: Start by screwing the leveling barrels ( A ) into the Adjustable arms (K and L). A screwdriver slot is provided in the barrel (A). The barrels only need to be threaded approx. 1/8“ through the bottom of the arm (K and L). If the mounting plane of the projector is not flat, the barrels can be adjusted to make up the difference in height.
