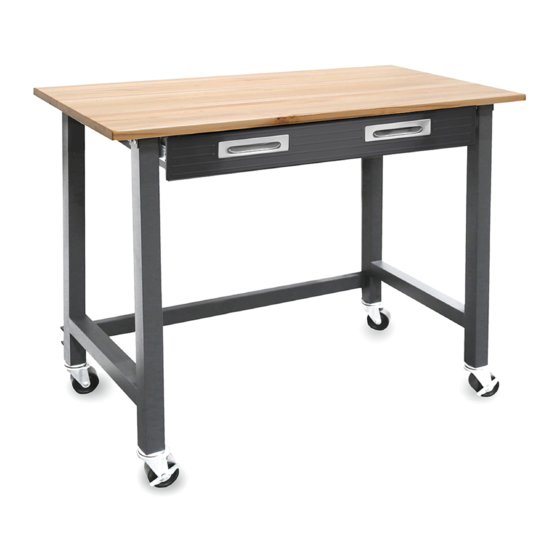

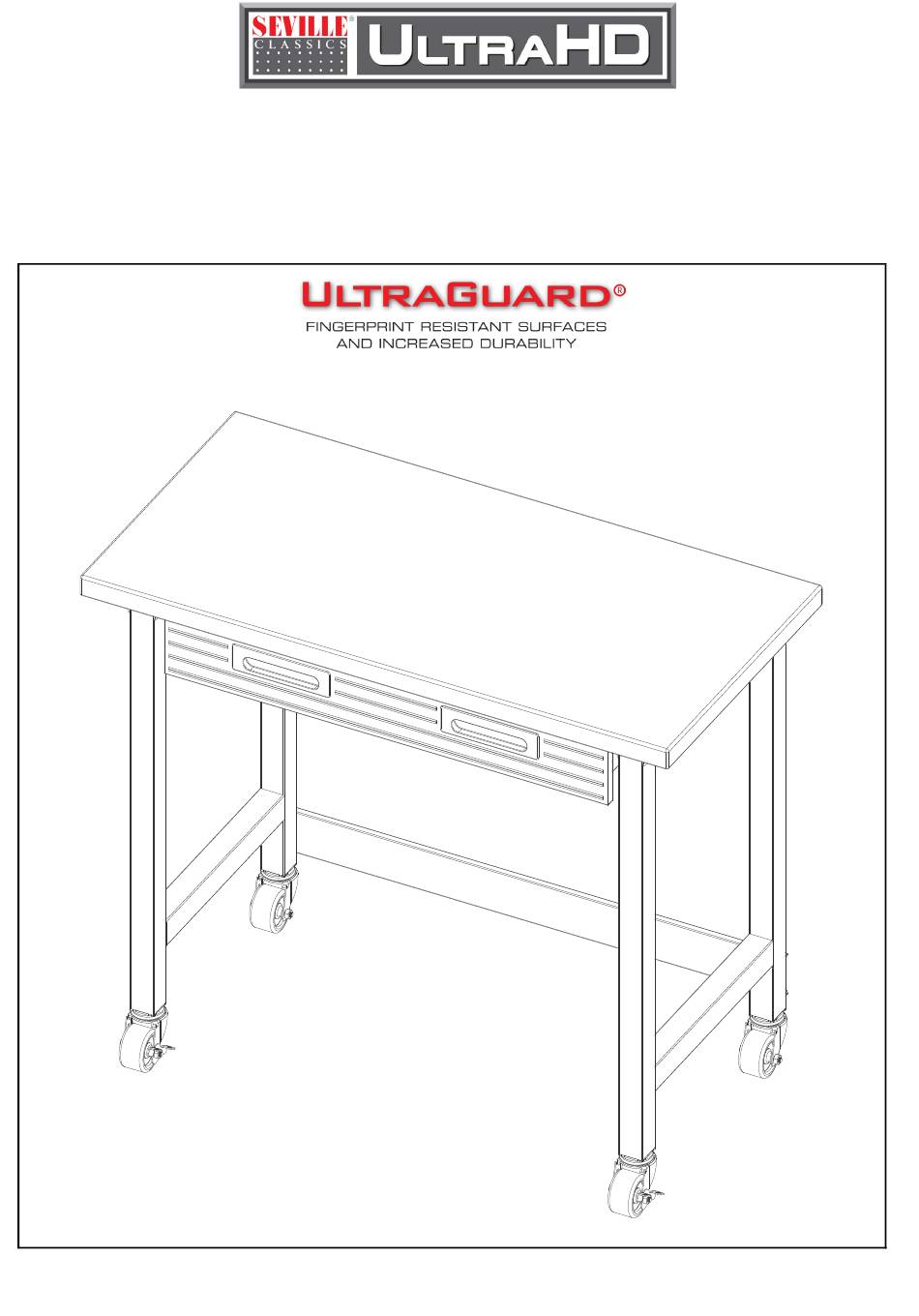

- Page 1 ASSEMBLY INSTRUCTIONS UltraGraphite™ Mobile Workbench (Model No. WEB484) 48 in. W x 24 in. D x 37.5 in. H (1.21 m x 60.9 cm x 82.5 cm) Reference page 6 for special care and maintenance of stainless steel SC200304...
-
Page 2: Parts List
PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 7.) M8X20 pcs #27-B Drawer Parts Parts Qty. Qty. SOLID HARDWOOD BOARD TOP DRAWER FRONT PANEL SUPPORT PLATE 1 PC #20-6... - Page 3 UltraGraphite™ Mobile Workbench (Model No. WEB484) *NOTE: We recommend using TWO people to assemble the workbench. Tip: A magnetic screwdriver is included for your convenience. If using a power screwdriver, keep torque setting on LOW. Step 1: Install (#5-B) Leg Piece. A: Open the package, and put the parts aside.
- Page 4 UltraGraphite™ Mobile Workbench (Model No. WEB484) *NOTE: We recommend using TWO people to assemble the workbench. Step 3: Install (#3-B) Bottom Cross Bar and (#11) Swivel Wheel with Brake & (#13) Swivel Wheel w/o Brake. Attach the (#3-B) Bottom Cross Bar to the back of (#5) Leg Piece, line up the screw holes, use (#40) Screw E with (#27-B) Washer and (#25) Wrench to tighten.
- Page 5 UltraGraphite™ Mobile Workbench (Model No. WEB484) *NOTE: We recommend using TWO people to assemble the workbench. Step 6: Install (#20-6) Drawer Front Panel Support Plate Attach (#20-6) Drawer Front Panel Support Plate as #20-6 the left arrow shows. Line up the screw holes and use (#15) Screw B to tighten.
- Page 6 UltraGraphite™ Mobile Workbench (Model No. WEB484) *NOTE: We recommend using TWO people to assemble the workbench. Insert Drawer Step 8: Pull out the drawer sliders to full length, then attach and fit the Drawer to the inner track of the sliders and slide drawers in.
- Page 7 If the wood top is received with excessive damage or splitting, Seville Classics will guarantee replacement of the top. Variations of color, and minor scratches in the clear cloat finish will not be reason for replacement.
-
Page 8: Contact Information
If you are missing any parts, have any questions, or need additional assistance in assembly, please contact our bilingual (English and Spanish) customer service department at: Seville Classics, Inc. 19401 Harborgate Way Torrance, CA 90501 USA Telephone: (800) 323-5565 within USA... - Page 9 UltraHD® Line UltraHD® 6-Foot Height Adjustable Workbench UltraHD® 4-Drawer Rolling Cabinet Model No. 20296 (Granite) Model No. 20205 (Granite) Model No. 20141 (Graphite) UltraHD® Wall Cabinet with Open Shelf UltraHD® 2-Door Rolling Workbench Model No. 20262 (Granite) Model No. 20230 (Granite) Model No.
