P
ARTS AND

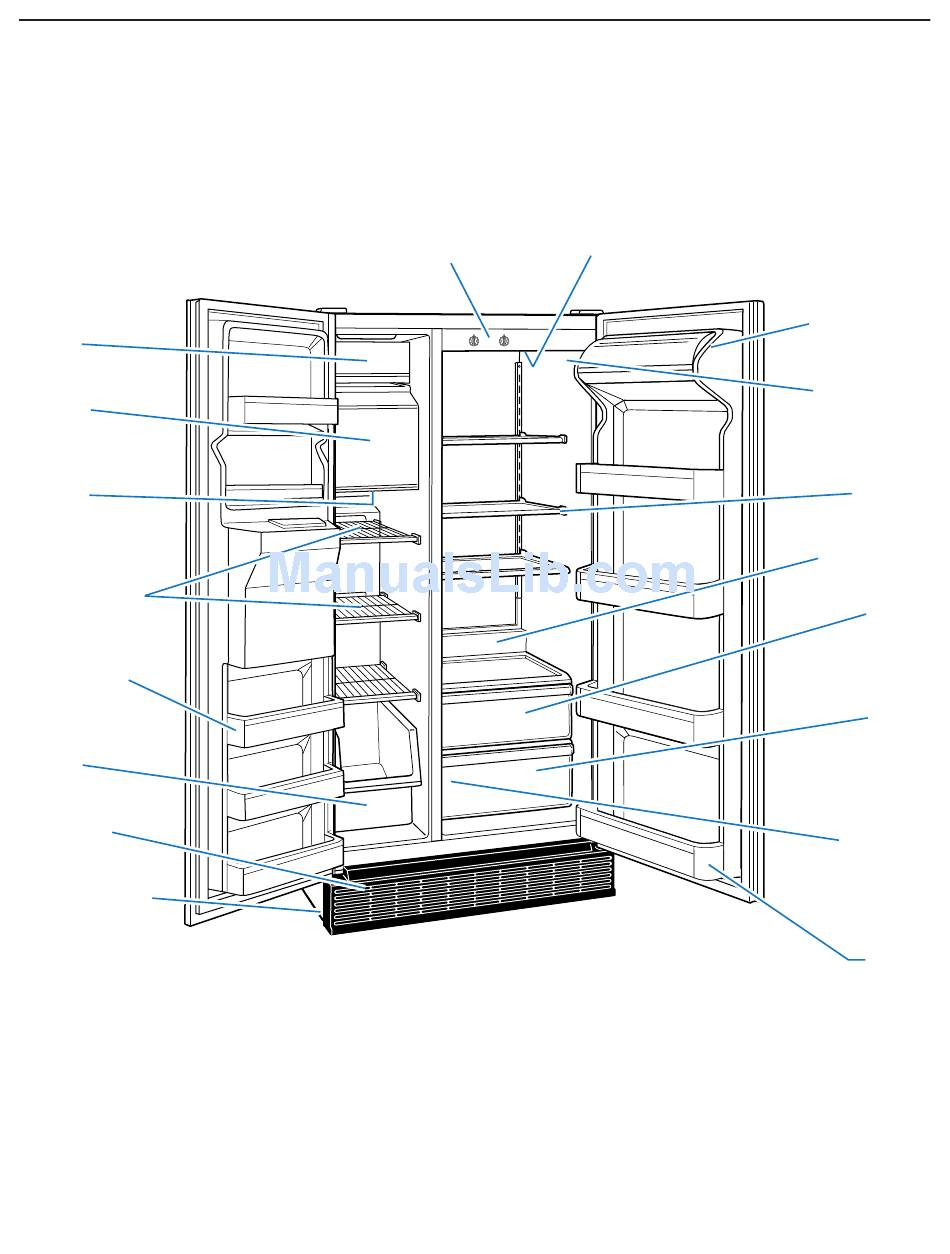

Use this section to become more familiar with the parts and features of your refrigerator. Page
references are included for your convenience.
NOTE:
This manual covers several different models. The refrigerator you have purchased may have
some or all of the items listed below. The locations of the features shown below may not match your
model.
Optional
automatic ice
maker
(p. 30)
Ice bin
(p. 31)
Freezer
light
(p. 35)
Removable
wire shelves
††
(p. 30)
Removable door
shelf fronts
††
(p. 25)
Freezer bin/
basket
(p. 29)
Base grille
(p. 33)
Leveling rollers
(behind base grille)
(p. 11)
on some models
††
number varies with model
Other parts and features
(not shown in illustration above/optional on some models)
Drop-in door trim (p. 25)
Ice cube trays
Snack bin (p. 26)
Snap-on door trim (p. 25)
6
F
EATURES
Control panel
(p. 19)
Light
(p. 33)
FREEZER
REFRIGERATOR
REFRIGERATOR
B
3
2
4
A
C
AUTOMATIC EXTERIOR MOISTURE CONTROL
AUTOMATIC EXTERIOR MOISTURE CONTROL
WARMER
WARMER
COLDER
COLDER
1
5
COLDEST
COLDEST
OFF
OFF
Utility
compartment
Model and serial
number, label
(on side wall)
Adjustable
wire or glass
††
shelves
(p. 26)
Crisper light
(p. 34)
Crisper
(p. 28)
Convertible
vegetable/meat
drawer
(p. 27)
Convertible
vegetable/
meat drawer
air control
(on side wall)
(p. 28)
Removable
door shelf
fronts
††
(p. 25)
