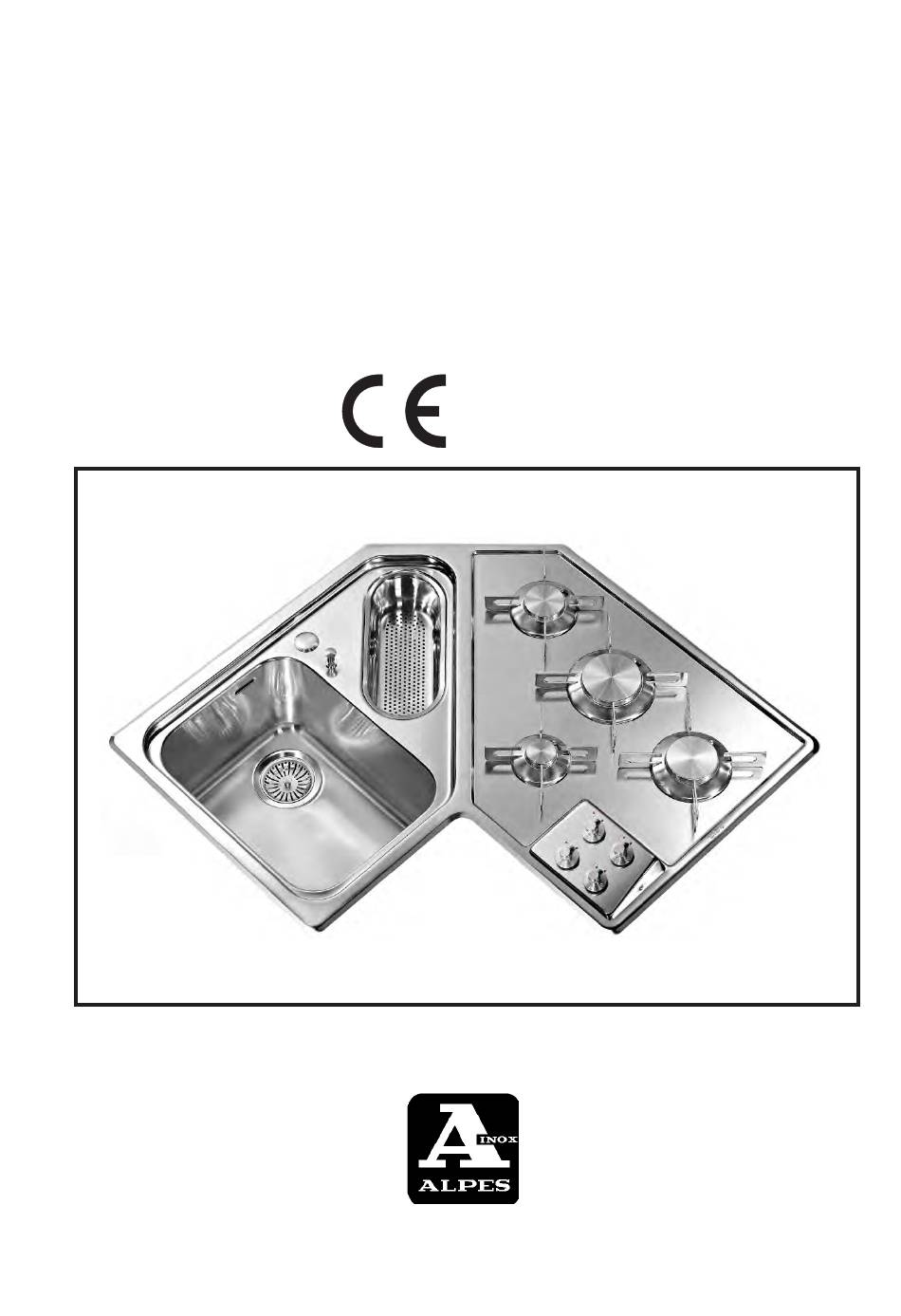

SERIE F "2010" SEMI-FLUSH BUILT-IN CORNER GAS ELEMENTS - DEPTH CM 51 ELEMENTS D’ANGLE A GAS ENCASTRABLES SEMI-AFFLEURANTS - PROF. 51 CM Art. F 583/1V1B4G Art. F 583/5G - F 583/6G GB Class 3 FR Class 3 INSTRUCTIONS MANUAL LIVRET D'INSTRUCTIONS...
INDEX TABLE DES MATIERES INSTALLATION INSTRUCTIONS INSTRUCTIONS POUR L’INSTALLATEUR Important directions ..........page Avertissements importants ........page Installation .............." Installation .............." Diagram of drain connection to the drain trap....." Schemas de raccordement de la bonde au siphon de vidange .........." "Spazio 2"...
INSTALLATION INSTRUCTIONS INSTRUCTIONS POUR L’INSTALLATEUR AVERTISSEMENTS IMPORTANTS IMPORTANT DIRECTIONS Before installing the appliance, make sure it is adjusted to be Avant l’installation, vérifier que les conditions locales de distri- compatible with the type and pressure of the local gas supply. bution (nature et pression du gaz) et la situation de réglage de When opening the package, check that the appliance is not l’appareil sont compatibles.
INSTALLATION INSTALLATION Toutes les opérations relatives à l’installation, au réglage et à All installation, adjustment and gas conversion operations must l’adaptation au type de gaz disponible, doivent être effectuées be performed by qualified professionals as per current law. par du personnel qualifié, conformément aux normes en vigueur. Unpack the corner element, removing all the wrapping and Déballer l'élément d'angle en éliminant avec soin les matériaux protecting material.
Page 7
F 583/1V1B4G Cutout dimensions in cm Dimensions du trou pour l'encastrement exprimées en cm F 583/5G F 583/6G Cutout dimensions in cm Dimensions du trou pour l'encastrement exprimées en cm...
DIAGRAM OF DRAIN CONNECTION TO THE DRAIN TRAP SCHEMAS DE RACCORDEMENT DE LA BONDE AU SIPHON DE VIDANGE F 583/1V1B4G "SPAZIO 2" TRAP SIPHON "SPAZIO 2" EXTENSIONS RALLONGE "SPAZIO 2" MODEL TWO-WAY DRAIN TRAPS + EXTENSION SIPHON A DEUX VOIES MODELE "SPAZIO 2" + RALLONGE min 28.5 cm - max 57.5 cm 7.5 cm Ø...
Page 9
EQUIPPED WITH SPACE SAVING SIPHON Ø 2" ÷ Ø 1" 1/2 SIPHON GAIN DE PLACE (COMPRIS APERTO DANS LA FOURNITURE) Ø 2" ÷ Ø 1" 1/2 OFF EN CHIUSO GESCHLOSSEN OPEN OUVERT CLOSED FERME...
MAINTENANCE ENTRETIEN ART. F 583/5G - F 583/6G ART. F 583/5G - F 583/6G After removing the knobs, the control panels and the burners, Aprês avoir enlevé les boutons, le bandeau de commande et the top of the hob lifts easily. The inside inspection for periodic les feux, la partie supérieure de la table de cuisson se soulève checks or cleaning is therefore simplified.
INSTRUCTION ON VENTILATION OF INDICATIONS POUR L’AERATION DES PREMISES LOCAUX This appliance must only be installed for use in permanently Cet appareil ne peut être installé pour fonctionner que dans des ventilated rooms, as per current law. pièces ventilées en permanence, conformément aux normes en vigueur.
Natural indirect ventilation Fig. 1 Indirect ventilation is also possible, through collection of air from adjacent premise (fig. 3) as long as: - the adjacent room is fitted with direct ventilation, as per letters a), b) and c) of the section "Direct natural ventilation" - in the premise to be ventilated, the appliances installed are connected to exhaust systems - the adjacent premise is not a bedroom nor is it of common...
CONNECTION TO GAS SYSTEM Fig. 4 Our hobs have been designed for methane gas functioning at a rated pressure of 20 mbar and must be connected to the gas supply system in accordance with BS 5386 part. 4. The hobs are outfitted with tapered coupling (art.
CONNECTION TO THE MAINS Fig. 7 These hobs are equipped with three-pole HAR H05 VV-F sec. 3x1 mm type power cord with die-casted three-pole plug in compliance with BS 1363/A standard, for 230 V - 50 Hz A.C. operation. The earth wire is yellow-green (fig. 7). In case the cord is damaged or needs to be replaced make sure to replace it with one of the same type.
Gasket on the control panel Joint sur le panneau de commande Fig. 8 Fig. 9 CLOSED MAXIMUM MINIMUM FERME MAXIMUM MINIMUM Fig. 10 Fig. 11 CONVERSION TO LIQUID GAS (LPG) AND TRANSFORMATION AU GAZ LIQUIDE (GPL) MINIMUM FLAME ADJUSTMENT ET REGLAGE DU MINIMUM The hob is designed for methane gas connection at a pressure La table de cuisson est prévue pour utiliser du gaz méthane à...
OPERATING INSTRUCTIONS INSTRUCTIONS POUR L’UTILISATEUR IMPORTANT DIRECTIONS AVERTISSEMENTS IMPORTANTS Before installing the appliance, make sure it is adjusted to be Avant l’installation, vérifier que les conditions locales de distri- bution (nature et pression du gaz) et la situation de réglage de compatible with the type and pressure of the local gas supply.
DIRECTIONS FOR USE OF GAS BURNERS CLOSED FERME Keep an eye on children during use and make sure they do not touch the surfaces and that they keep distant from the appliances when hot and until not completely cooled down. To ignite the burners press the knob and turn it to the large flame position.
NETTOYAGE ET ENTRETIEN CLEANING AND MAINTENANCE Before carrying out any type of cleaning operation, remove Avant tout nettoyage de l’appareil, débrancher la fiche de la the plug from the socket or simply turn off the main switch. prise de courant ou plus simplement, éteindre l’interrupteur général.
DISPOSAL TRAITEMENT DES DÉCHETS Disposal of packaging: Traitement des matériaux d’emballage : séparer les différents types de matériaux en se conformant separate the various materials in observance of local disposal aux normes locales relatives au traitement et au recyclage des and recycling bylaws.
ELECTRICAL DIAGRAM ART. F 583/1V1B4G - SCHEMA ELECTRIQUE ART. F 583/1V1B4G Legende Power supply cord-cross-section 3x1 Câble d'alimentation section 3x1 Terminal board item PA 299 Porte-bornes art. PA 299 Hob earthing Mise à la terre table de cuisson Control board earthing Mise à...
ELECTRICAL DIAGRAM ART. F 583/5G - SCHEMA ELECTRIQUE ART. F 583/5G Legende Power supply cord-cross-section 3x1 Câble d'alimentation section 3x1 Terminal board item PA 299 Porte-bornes art. PA 299 Hob earthing Mise à la terre table de cuisson Snap-in micro-catenary for ignition from knob Microcaténaire snap-in pour allumage par le bouton Burner spark plugs Bougies brûleurs...
ELECTRICAL DIAGRAM ART. F 583/6G - SCHEMA ELECTRIQUE ART. F 583/6G Legende Power supply cord-cross-section 3x1 Câble d'alimentation section 3x1 Terminal board item PA 299 Porte-bornes art. PA 299 Hob earthing Mise à la terre table de cuisson Snap-in micro-catenary for ignition from knob Microcaténaire snap-in pour allumage par le bouton Burner spark plugs Bougies brûleurs...
TECHNICAL LABEL ETIQUETTE TECHNIQUE CA 06 - CA 20 The manufacturer refuses all responsibility for possible imprecisions contained in this booklet, due to misprints or clerical errors, for damages to things or people, in case all the accident prevention norms useful to the normal and regular operation of the electric and gas systems are not complied with.
