P R I S M + P R O K I T W I T H C O N T R O L L E R
DOWNLOAD APP TO PHONE: KURYAKYN PRISM+
THANK YOU FOR CHOOSING KURYAKYN!
Protect yourself and others from possible injury and property damage or loss. Pay close attention to all instructions, warnings, cautions, and notices regarding the
installation, use, and care of this product.
THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING THE CONTENTS DESCRIBED HEREIN CAN RESULT IN POTENTIAL DEATH OR SERIOUS INJURY.
THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING THE CONTENTS DESCRIBED HEREIN CAN RESULT IN MINOR OR MODERATE POTENTIAL INJURY.
THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING THE CONTENTS DESCRIBED HEREIN MAY NEGATIVELY AFFECT PRODUCT PERFORMANCE AND
FUNCTIONALITY OR DAMAGE THE PRODUCT ITSELF OR THE PRODUCT TO WHICH IT IS BEING ATTACHED.

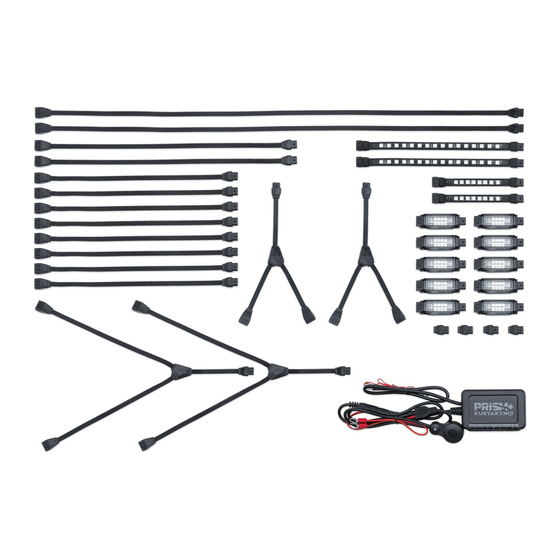

ENSURE THAT THE FOLLOWING PARTS HAVE BEEN INCLUDED IN THE KIT:
1
Bluetooth Controller
10
Light Pod
2
8" Flex-Strip
2
4" Flex-Strip
8
9" Extension Cords
2
12" Extension Cords
2
24" Extension Cords
2
Y-Connectors - Short
2
Y-Connectors - Long
4
Loop Connectors
YOU WILL ALSO NEED:
Phillips screw driver, wire crimper, electrical tape, masking tape, clean rag and warm soapy water
THESE INSTALLATION INSTRUCTIONS CONTAIN IMPORTANT INFORMATION. ENSURE THE END USER RECEIVES THIS COPY
AND IS AWARE OF ITS IMPORTANCE FOR FUTURE USE.
BLUETOOTH
CONTROLLER
REFER TO THE LAST PAGE OF THE INSTALLATION INSTRUCTIONS FOR L.E.D. COUNTS FOR EACH VARIATION OF PRISM+
LIGHTS. BLUETOOTH CONTROLLERS HAVE A MAX CAPACITY OF 250 L.E.D.S CONNECTED TO IT AT A TIME. MAX CAPACITY
PER CHANNEL IS 100 L.E.D.S, BUT THE CONTROLLER SHOULD NEVER EXCEED A TOTAL OF 250 L.E.D.S CONNECTED TO IT.
STEP 1
Read and understand all steps in the instructions before
starting the installation. Park the motorcycle on a hard, level
surface and turn off the ignition. Let motorcycle cool.
PAGE 1
302803
DPF-MRK-003 REV D 7/24/19
1
LIGHT PODS
9" EXTENSION CORDS
24" EXTENSION CORDS
Hardware Kit, containing:
12 Alcohol Pad
1
Dielectric Grease
16 4" Cable Tie
5
Adhesive Pads
1
Adhesive 4" Strip
1
Adhesive 8" Strip
3
T-Tap Connector
3
Spade Connector
8" FLEX-STRIP
4" FLEX-STRIP
Y-CONNECTORS
LONG
2803
SPADE
CONNECTORS
T-TAP
CONNECTORS
LOOP
CONNECTORS
Y-CONNECTORS
SHORT
12" EXTENSION CORDS
KURYAKYN.COM
866 277 9598 | INFO@KURYAKYN.COM
454 COUNTY ROAD VV SOMERSET, WI 54025
PIC 1
Advertisement
Table of Contents
Related Manuals for Kuryakyn PRISM+ PRO KIT WITH CONTROLLER
Summary of Contents for Kuryakyn PRISM+ PRO KIT WITH CONTROLLER
- Page 1 P R I S M + P R O K I T W I T H C O N T R O L L E R 2803 DOWNLOAD APP TO PHONE: KURYAKYN PRISM+ THANK YOU FOR CHOOSING KURYAKYN! Protect yourself and others from possible injury and property damage or loss. Pay close attention to all instructions, warnings, cautions, and notices regarding the installation, use, and care of this product.
- Page 2 RAISED LOGO Note: Refer to PIC 4. Make note of the raised dot and the Kuryakyn K-shield logo on opposite ends on each part. When connecting cords to cords, cords to lights, or lights to lights be sure that the raised dot and K-shield logo are both visible when connecting.
- Page 3 OPTIONAL BRAKE - REAR TURN SIGNAL FUNCTIONALITY • Brake-rear turn light features work when “RIDE” mode is turned on in the Kuryakyn Prism+ App. • Optional Brake-Rear Turn functionality is not compatible with all years, makes and models. STEP 9...
- Page 4 CONTROLLER’S SWITCH SECURE ALL WIRING AWAY FROM ANY MOVING PARTS, PINCH OFF BIKE VIEW POINTS OR EXTREME HEAT. KURYAKYN WILL NOT ISSUE A WARRANTY ON ANY ELECTRICAL COMPONENT THAT FAILS DUE TO PINCHED, CRIMPED, BROKEN, ABRADED, MELTED OR FRAYED WIRES.
- Page 5 ©2015 KURYAKYN HOLDINGS, LLC ALL RIGHTS RESERVED KURYAKYN, KURYAKYN K logo and the marks appearing on this instruction sheet are registered and common law trademarks of Kuryakyn Holdings except noted third-party trademarks. A full listing of trademarks and trademark registrations owned by Kuryakyn Holdings can be found at www.kuryakyn.com/legal-notice.
- Page 6 Refer to FIG 4.1 and 4.2. When using Y-Connectors, the branch CONNECTOR with the most L.E.D.s on it needs to have a loop connector added to the end of it. KURYAKYN.COM 866 277 9598 | INFO@KURYAKYN.COM PAGE 6 454 COUNTY ROAD VV SOMERSET, WI 54025 302803 DPF-MRK-003 REV D 7/24/19...
