Kuryakyn 9411 Installation Instructions Manual

P r o s e r I e s h y P e r c h a r g e r
fI ts: '02- uP V tX 18 00 Mode ls
Part # Included
500204 1
5
3
2
400542 1
409411 1
909411H 1
3
4
2
1
1
1
1
1
1
309411 1
Please read and understand entire instructions before starting installation.
thank you for choosIng küryakyn!
ATTENTION! It is the installer's responsibility to ensure all fasteners (including pre-assembled)
are tightened before operation of the motorcycle. Kuryakyn will not warranty
components lost due to improper installation. Periodic maintenance may be
required.
note
Some of our high performance air cleaners extend beyond the stock/OEM unit
to achieve smoother airflow and better performance. Riding position may be
affected.
note
The addition of this air cleaner may change the fuel requirements of the engine.
For best drivability and performance we recommend the use of a "Techlusion"
TFI control box. (Sold separately, P/N 9218.)

Procedure

steP 1 Remove the seat and the rear mounting bolt of the fuel tank.

steP 2 Either prop the rear of the tank up, or have an
assistant hold the rear of the tank up. (See PIC.1.) Remove
the four Phillips head screws form the "air horn" assembly in
the stock air cleaner backing plate. Gently "tug" outward at
the bottom of the stock air cleaner back and it will become
free from the bike, only to be connected by hoses and a wire
harness. Remove the three hoses from the backing plate as
well as the plug from the air mass (temp) sensor.
-cont.-
9411-14MC-0507
Pro Hypercharger Assembly
Screws in Plastic Bag Including The Following 2 Items:
to Secure Hyper Front to Back
to be used in Pro R End Caps
K&N Hyper Filter Round
Throttle Body Adapter
Hardware Kit Including the Following:
1/4"-20 x 1/2" SHCS Alloy W/Patch
M5 x .80 x 16mm Hex Flange Screw
10-24 x .4 18-8 BSCS
14" Long 5/32" Rubber Hose
Gasket with Adhesive
Nipple, 1/8" NTP EFI Chrome
Elbow, 1/4" NTP 90 Degree Chrome
Cap Grey Vinyl
1" Pin
Installation Instructions
I N S TA L L AT I O N
9 4 1 1
Küryakyn warrants that any Küryakyn products sold
hereunder, shall be free of defects in materials and
workmanship for a period of one (1) year from the
date of purchase by the consumer excepting the fol-
the customer is unable to provide a receipt showing
the date the customer purchased the product(s).
maintained and operated under normal conditions.
implied, with respect to any gold plated products.
• Küryakyn shall not be liable for any consequential
paint, resulting from failure of a Küryakyn product,
failure to deliver, delay in delivery, delivery in noncon-
forming condition, or for any breech of contract or
• Küryakyn electrical products are warranted for one
(1) year from the date of purchase by the consumer.
Components of Küryakyn products containing L.E.D.s
workmanship for 3 years from the date of purchase.
• Küryakyn makes no warranty of any kind in regard
Küryakyn. Küryakyn will pass on all warranties made
by the manufacturer and where possible, will expedite
but ultimately, responsibility for disposition of the

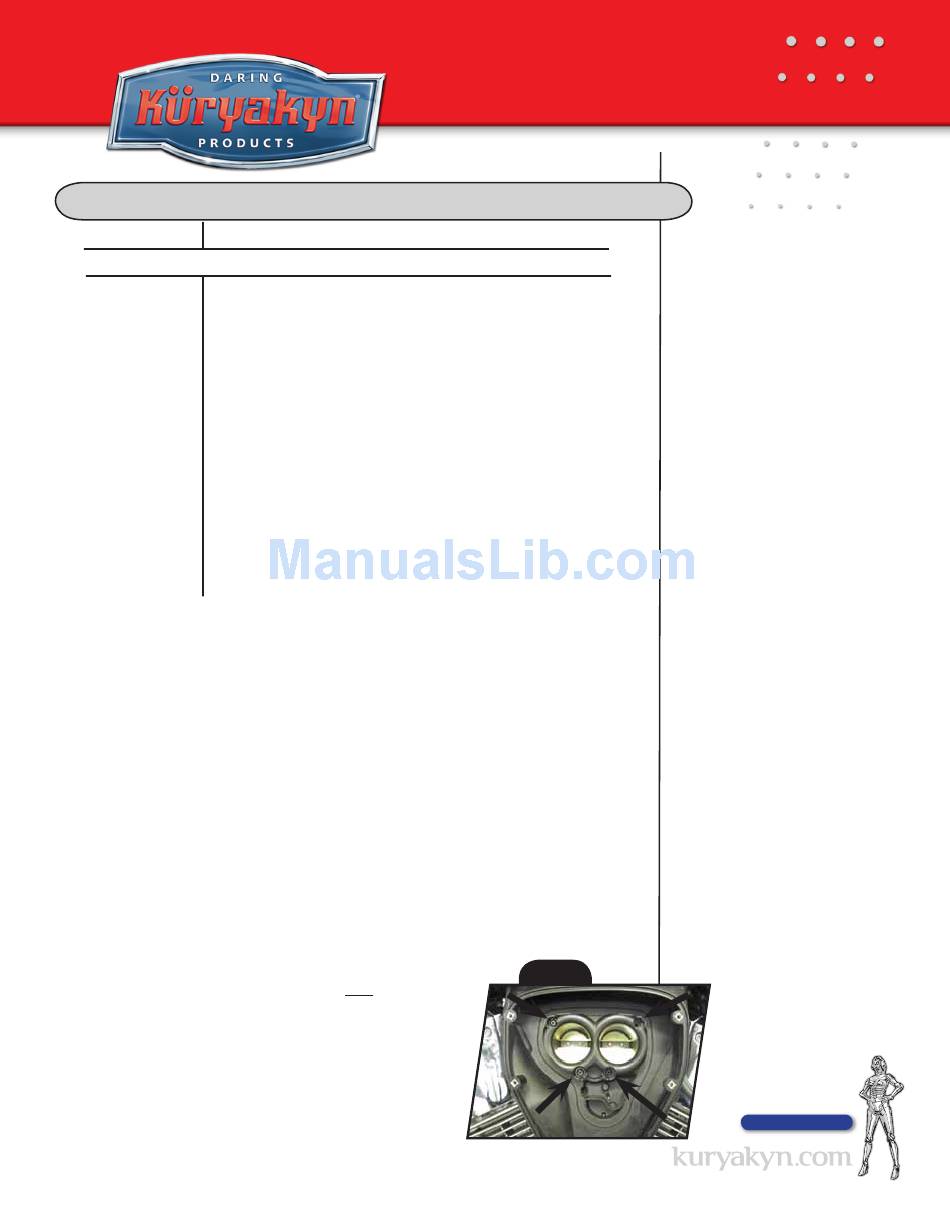

PIc.1
