V-TAC VT-6053-5 Instruction Manual

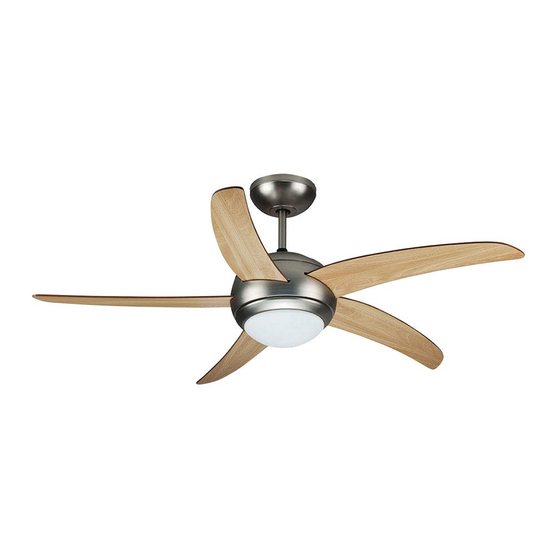

Decorative ceiling fan
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SAFETY INSTRUCTIONS
• Make sure that the mains voltage matches the voltage stated on the rating label of the
appliance.
• Check the power cord regularly for visible damage. If the cord is damaged, it must be
replaced by the official Technical Support Service, in order to avoid any type of danger.
WARNING: Do not use the appliance if its cord, plug, or housing is damaged, nor after it
malfunctions or has been dropped or damaged in any way.
• The appliance is not intended to be used by children under the age of 8. It can be used by
children over the age of 8, as long as they are given continuous supervision.
• This appliance is not intended to be used by persons with reduced physical, sensory, or
mental capabilities, or lack of experience or knowledge, unless they have been given supervi-
sion or instruction concerning the use of the appliance in a safe way by a person responsible
for their safety, and understand the hazards involved.
• Supervise young children to make sure that they do not play with the appliance. Close
supervision is necessary when the appliance is being used by or near children.
• Keep the appliance and its cord out of reach of children under the age of 8.
• Do not try to repair the appliance by yourself. Contact the official Technical Support Service
for advice.
• Cleaning and maintenance must be carried out according to this instruction manual to make
sure the appliance functions properly. Turn off and unplug the appliance before cleaning it.
• Make sure the fan is not placed near drapes, curtains, or any objects that may be drawn into
the fan.
• The minimum distance between the fan blades and the floor must be 2.3 m. The minimum
carrying capacity of the outlet box from which the fan is hung must be 45 kg.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VT-6053-5 and is the answer not in the manual?

Questions and answers

Related Manuals for V-TAC VT-6053-5

Summary of Contents for V-TAC VT-6053-5

  • Page 1 SAFETY INSTRUCTIONS • Make sure that the mains voltage matches the voltage stated on the rating label of the appliance. • Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the official Technical Support Service, in order to avoid any type of danger. WARNING: Do not use the appliance if its cord, plug, or housing is damaged, nor after it malfunctions or has been dropped or damaged in any way.
  • Page 2 • Do not use the appliance in confined spaces with explosive or toxic vapours. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 3 IMPORTANT: Shut off the main electric switch during installation or maintenance. It is recom- mended to switch off the plug of the automatic switch before the fan (Both mains and fan switch should be not powered). • Do not use outdoors. The product must be installed in a dry place, where it is not exposed to water or moisture.

  • Page 4: Introduction & Warranty

    INTRODUCTION & WARRANTY Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product.

  • Page 5: Technical Data

    1) 52" (132CM ) Decorative ceiling fan 2) With forward and reverse function INSTRUCTION MANUAL 3) 5 MDF blades DECORATIVE CEILING FANS (VT-6053-5) 4) Powerful Motor:153*15mm, 2.3kg 5) Revolutions per minute:190±10 RPM 6) Blade angle 13° 7) 3 speeds and light remote control...

  • Page 6: Parts And Components

    PARTS AND COMPONENTS 1. Mounting bracket 2. Down rod and hanging ball 3. Canopy 4. Fan motor housing 5. Light 6. Glass shade 7. Blades 8. Screw kit, mounting bracket hardware (wire, nuts, rubber washers) and attachment hardware Tools and material required (not included) 9.

  • Page 7: Before Use

    1. BEFORE USE Unpack your ceiling fan carefully then remove all parts and components and lay on a cloth or soft surface to avoid damage. Do not lay the motor housing on its side, the housing may get damaged. Before commencing installation, check that all parts are included. 2.
  • Page 8 2.2. INSTALLATION OF THE DOWN ROD AND HANGER BALL • Unscrew the screw on the down rod’s hanger ball, then loosen the hanger ball. Remove the stop pin from inside the down rod and remove the hanger ball from the rod. •...
  • Page 9 • If screws are not properly tightened, the motor might oscillate. This could be dangerous. • Once the above steps are all finished, install the hanger ball onto the down rod, insert the stop pin in the down rod and lift up the hanger ball.

  • Page 10: Wiring Diagram

    WIRING DIAGRAM WHITE(neutral) N(WHITE) N(WHITE) V(BLACK) BLACK(fan connection) MOTOR L(BLACK) BLUE(light connection) LIGHT(BLUE) SENSOR...

  • Page 11: Blade Assembly

    2.5. BLADE ASSEMBLY Insert the blades through the motor housing’s side slots and align them with the 3 holes. Secure the blades with 3 blade screws & ensure that the 3 blade screws are tightened properly. Removed the 3 screws & the lamp Do not over tighten the screws as this can damage the holder from the fixing panel.

  • Page 12: Operation

    Align the lamp holder’s screw Insert-2-E27 Max.40W light Carefully install the glass holes with those on the motor bulb mounted on lamps. shade into the main body and and attach both parts by turn it clockwise to lock it. means of the screws provided. Connect the LED light’s wires to the fan motor’s wires.

  • Page 13: Remote Control

    WARNING: Before using the direction switch, turn the fan off and make sure the fan has stopped rotating in order to prevent possible injuries and motor damage. Change direction by pushing the switch up or down when the fan is off. REMOTE CONTROL Use the remote control to turn the fan on and off and to change speed.

  • Page 14: Cleaning And Maintenance

    WARNING: • Always ensure the battery compartment cover is closed properly. • Never leave the remote control directly exposed to sun light. • Do not try recharging the discharged batteries by heating them or with a battery charger. Rechargeable batteries are always specified as so. •...
  • Page 15 5. TROUBLESHOOTING THE FAN DOES NOT START UP 1. Check all the fuses or circuit breakers. 2. Turn off the electrical power and check all wire connections. THE FAN EMITS NOISES 1. Always allow a few days “break in” time for any new fan at medium or high speed. Try to diagnose the exact location of the noise by listening carefully from several sides (blades, motor, light kit, etc.) The fan noise can come from a light kit.
  • Page 16 Make sure the light kit and the glass screws are tight. In case of any query/issue with the product, please reach out to us at: support@v-tac.eu For More products range, inquiry please contact our distributor or nearest dealers. V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B...
