Gas and Air Sensors
eSENSE Duct (Disp)

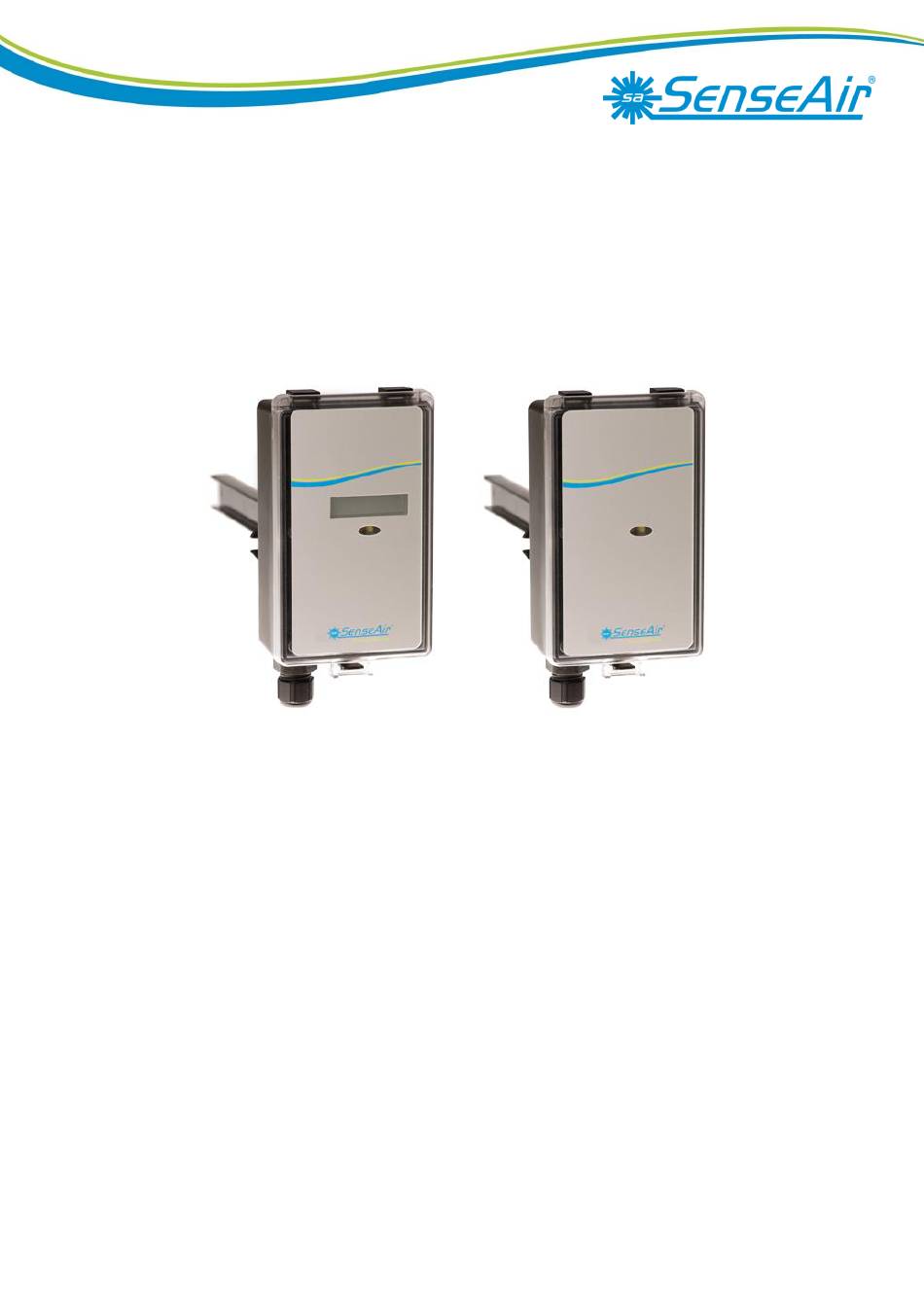

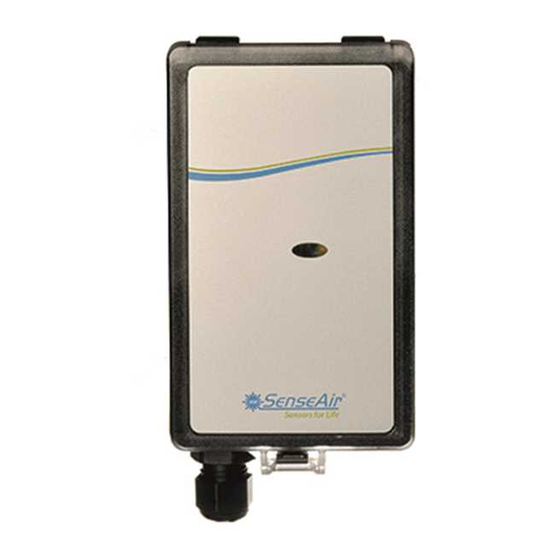

Figure 1 The eSENSE Duct with and without display
General
The IAQ-sensor product eSENSE Duct (for mounting in ventilation ducts) is designed
to measure carbon dioxide (CO
measurements by the resistive temperature probe mounted by the user. Option -Disp
displays the measured CO
The units are designed for connecting to Direct Digital Control (DDC) with 0-10V or
2-10V signal inputs. The two parallel signal outputs Out(1) (0-10V) and Out(2) (2-10V
or 4-20 mA) give linear signal voltages or currents corresponding to the measuring
range.
The output Out(2) also indicates the status by setting the output voltage to 1V or the
output current to 2 mA when the sensor self-diagnostics detects any error.
Installation Manual
). Option - TR is prepared for temperature
2
value in ppm (parts-per-million) on the LCD.
2
Document
Rev
IMA0215
7
Page
1 (8)
Advertisement
Table of Contents
Related Manuals for SenseAir eSENSE Duct-TR
Summary of Contents for SenseAir eSENSE Duct-TR
- Page 1 Gas and Air Sensors Installation Manual eSENSE Duct (Disp) Figure 1 The eSENSE Duct with and without display General The IAQ-sensor product eSENSE Duct (for mounting in ventilation ducts) is designed to measure carbon dioxide (CO ). Option - TR is prepared for temperature measurements by the resistive temperature probe mounted by the user.
- Page 2 1 Sampling probe 6 O-ring 29,2x3,53 2 Sealing gasket 7 PCB (Factory supplied mounted in box) 3 Largest locking nob 8 Snap-in lid 4 2 washers (Not included) 9 Cable entry bushing 5 2 screws (Not included) Figure 2 Parts of the eSENSE for duct mounting Document Page IMA0215...
- Page 3 Mounting of on to the duct. eSENSE Hole with 25 mm diameter Figure 3 Mounting of the sensor to the ventilation duct Mounting Instruction Since there might be a substantial pressure difference in duct mounting applications, it is essential to avoid ambient air from suction into the duct mounting box. For correct function it is indispensable that the sealing of the box cover, the cable entry bushings, the cable feed through and the duct entrance are absolutely tight.
- Page 4 Electrical connections The power supply has to be connected to is considered as system ground. The same ground reference has to be used for the eSENSE unit and for the DDC/signal receiver. PLEASE NOTE! The same ground reference has to be used for the eSENSE unit and for the control system! Terminal...
- Page 5 Option display Figure 4 PCB with jumper to configure OUT2 for current output 4-20mA or voltage output 2-10VDC Figure 5 Enlarged picture of the PCB with the jumper set to current output (left position) Figure 6 Enlarged picture of the PCB with the jumper set to voltage output (right position) Self-diagnostics The system contains a complete self-diagnostic procedure that is executed automatically when the sensor is in operation.
- Page 6 Maintenance The eSENSE is basically maintenance free in normal environments thanks to the built-in self-correcting ABC algorithm. Discuss your application with SenseAir in order to get advice for a proper calibration strategy. PLEASE NOTE! The sensor accuracy is defined at continuous operation (at least 3 weeks after...
- Page 7 Dimensions Figure 7 The dimensions of the sensor in mm and (inches) Document Page IMA0215 7 (8)
- Page 8 The product fulfils the following demands: EN 61000-4-2 level 2, EN 61000-4-3 level 2, EN 61000-4-4 level 4, EN 61000-4-6, EN 61000-4-8 level 4, EN 55022 class B ® SenseAir AB (headquarter) Stationsgatan 12 Phone: +46-(0)653 - 71 77 70...
