Item #31700
QST-30/60
SCROLL COMPRESSOR
INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QST-30/60 and is the answer not in the manual?

Questions and answers

Summary of Contents for Eastwood QST-30/60

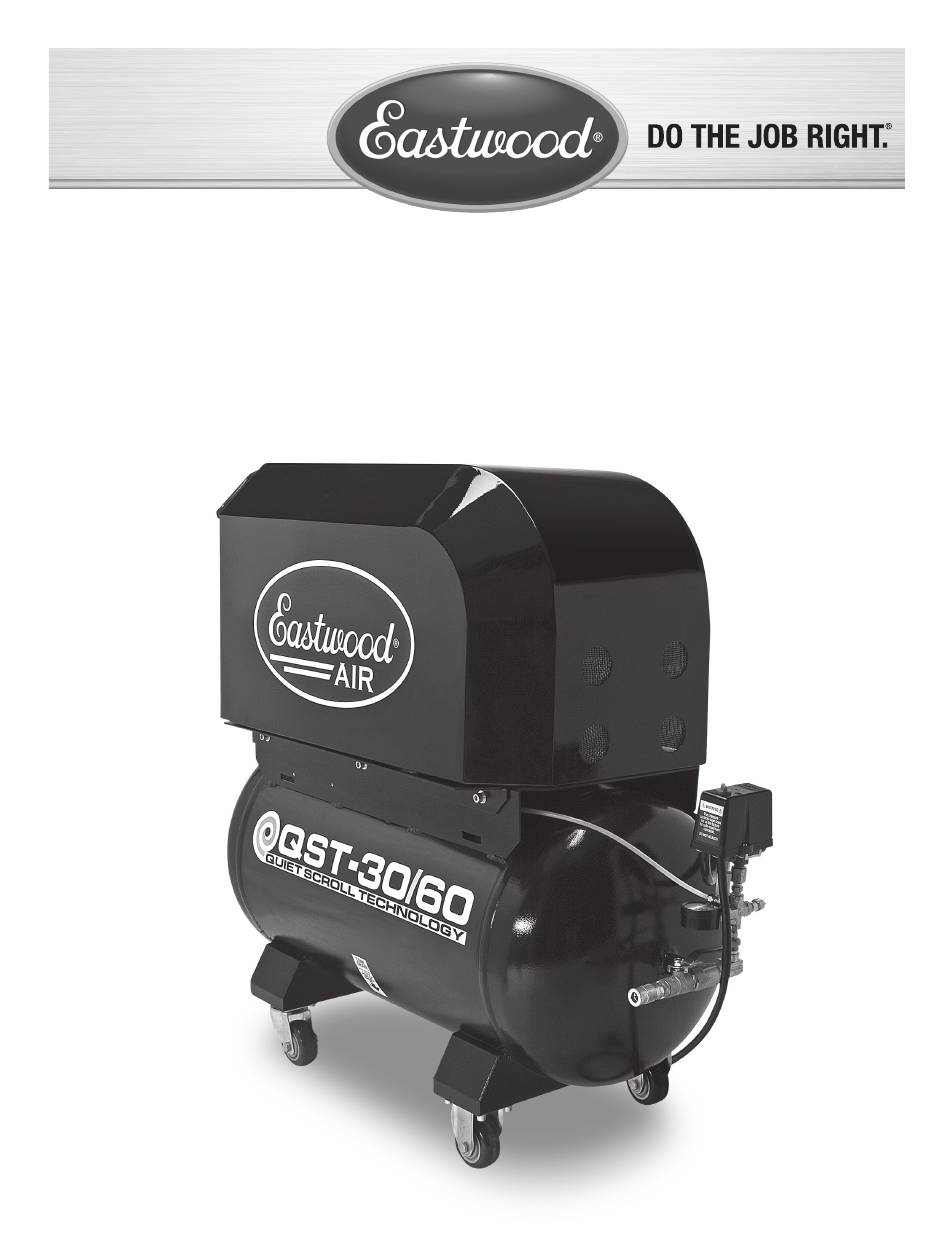

  • Page 1 Item #31700 QST-30/60 SCROLL COMPRESSOR INSTRUCTIONS...
  • Page 2: Specifications

    The EASTWOOD QST 30/60 AIR COMPRESSOR has been engineered and developed using breakthrough Scroll Pump Technology. It operates at much lower sound and vibration levels while producing much greater air output with lower power demands than old technology, conventional piston-type air compressors.
  • Page 3: Safety Information

    Air, moisture and debris can be ejected at high velocity while using this equipment. HEALTH HAZARD! • Air discharged from this compressor is not intended for and should never be used as supply air for human consumption. To order parts and supplies: 800.343.9353 >> eastwood.com...
  • Page 4 DO NOT allow the Cover ventilation holes to be blocked or permanent damage could occur. • The Eastwood QST 30/60 Compressor is mounted on Casters and can vibrate or move slightly during operation. Always lock Casters before running.
  • Page 5 Reservoir. The oil level is 100% full when it is at the top mark (FIG 5). If the oil is below the lower mark, oil must be added. • Add #31718 Eastwood Synthetic Scroll Compressor Oil to the fill port of the Oil Reservoir using a suitable funnel (FIG 6).
  • Page 6: Step 2 - Check Air Filter

    Compressor is disconnected. When the switch is on, the compressor will start and stop automatically as it will be FIG. 9 controlled by the pressure switch. Eastwood Technical Assistance: 800.343.9353 >> techelp@eastwood.com...
  • Page 7 • DO NOT allow the Cover ventilation holes to be blocked or permanent damage could occur. CASTER LOCKING The Eastwood QST 30/60 Compressor is mounted on Casters and can vibrate or move slightly during operation. Always lock Casters before running. To Lock: •...
  • Page 8: Compressor Operation

    AIR LINE CONNECTION The Eastwood QST 30/60 Compressor is designed with a high efficiency, 1/2” Ball Valve at the air outlet with 1/2” FNPT threads. It is strongly recommended to use 1/2” or larger air lines and fittings throughout your system. The use of 3/8” or smaller lines is acceptable but will greatly hamper performance.
  • Page 9: Condensation Drain

    Reservoir into a suitable container (FIG 14). TIP: A 3/8” NPT barbed fitting installed into the Drain Valve with a length of tubing or hose attached is helpful for directing oil into drain pan. To order parts and supplies: 800.343.9353 >> eastwood.com...
  • Page 10 • Remove the brass Oil Fill Plug from the upper front corner of the Oil Reservoir with a 10mm Hex Key (FIG 3). • Add #31718 Eastwood Synthetic Scroll Compressor Oil to the fill port of the Oil Reservoir (FIG 6) using a suitable funnel.
  • Page 11: Air Filter Change

    • Remove the Air Filter Element and discard it (FIG 8). • Replace the Air Filter Element with a new Eastwood #31717 and re-install the Air Filter Housing Lid. Note that the arrows on the Air Filter Lid must be indexed with the 5 arrows around the circumference of the Filter Housing and the snorkel of the Air Cleaner Housing must be pointing downward (FIG 9).
  • Page 12: Troubleshooting

    If you have any questions about the use of this product, please contact The Eastwood Technical Assistance Service Department: 800.343.9353 >> email: techelp@eastwood.com PDF version of this manual is available at eastwood.com The Eastwood Company 263 Shoemaker Road, Pottstown, PA 19464, USA 800.343.9353 eastwood.com © Copyright 2018 Easthill Group, Inc. 8/18...
