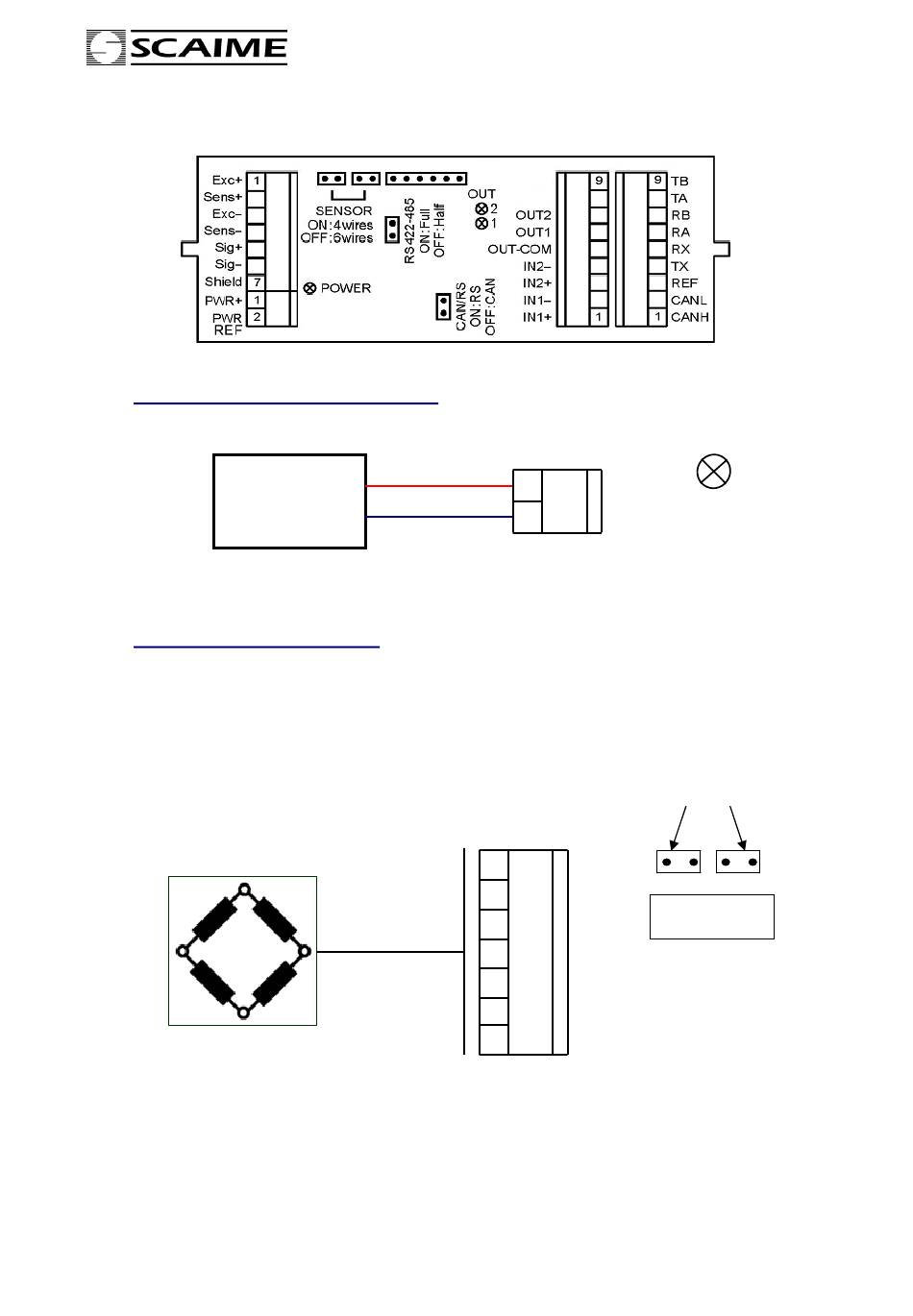

INTERFACES:

2.1 Connection to the power supply:

Power supply
10 to 28V
The 'POWER' light shows whether or not the power supply is connected.

2.2 Connection to load cell(s):

supplies power to the load cells (5 V
eNod3-C
Up to four 350Ω load cells can be connected in parallel.
allows the use of 4- or 6- wire load cells.
eNod3-C
-
-
7/22
+
_
DC
DC
4-wire load cells: jumpers in place.
6-wire load cells: jumpers removed.
eNod3-C: User's instructions
1
PWR
2
PWR
).
Exc+
1
Sens+
2
Exc-
3
Sens-
4
Sig+
5
6
Sig-
7
Shield
eNod3-C
Digital Transmitter
POWER
+
REF
4/6- wire jumpers
ON : 4 wires
OFF : 6 wires
