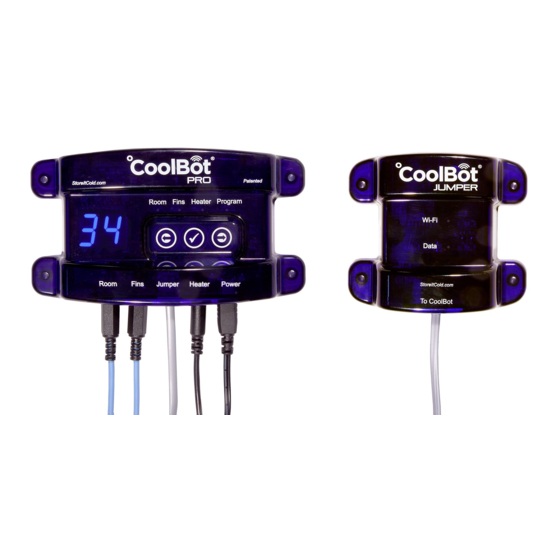

CoolBot Pro
Temperature Sensors
BOX CONTENTS
Qty
Item
1
CoolBot Pro
1
CoolBot Jumper
2
Temperature Sensors
1
Heater
1
Data Cable
1
Power Supply
TECHNICAL DATA
Classification
Temperature Regulating and Indicating Equipment
Rated
5V DC, SELV, <15W, Class 2
Purpose
Operating Control
Control Construction
Independently Mounted for Surface Mounting
Power Supply
For use with Phihong PSAC05A-050L6 power supply
BEFORE STARTING
•
Should I read this guide?
We also encourage you to visit our support page
•
I don't have Wi-Fi.
just like the previous generation CoolBot. If you have a window A/C, go straight to the "CONNECTING YOUR COOLBOT PRO TO
YOUR AIR CONDITIONER" Section of this Guide (page 3). NOTE: Your CoolBot Pro will keep your cooler cold but you won't be
able to access online data or change settings from the CoolBot Pro App.
•
I have Wi-Fi AND Internet connection.
with "CONNECTING YOUR COOLBOT PRO TO YOUR WI-FI NETWORK" (page 2), and then move to the "CONNECTING YOUR
COOLBOT PRO TO YOUR AIR CONDITIONER" Section of this Guide (page 3).
•
I have a Mini-Split
compatible Mini-Split air conditioners.
CoolBot Pro Quick Start Set Up Guide Rev 2020 – 01A UL
CoolBot Jumper
Heater
Patented Digital Temperature Controller
Wi-Fi Radio Signal Module
Sensor Cables (Blue Cable - Black Tip) with external 2.5mm jack connector
CoolBot Heater Cable (Black Cable - Red Tip) with external 2.5mm jack connector
Data Transfer Cable (Silver or Grey) with RJ11 connector on both ends
Mini-USB port connector cable. Input: 110V-240V / Output: 5V, 1Amp
Yes! We highly recommend reading this "Step by Step" guide entirely to ensure proper installation.
No problem! You can still use the CoolBot Pro without the CoolBot Jumper and without a Wi-Fi connection
Awesome! Then you will enjoy all of the benefits the CoolBot Pro and its app. First start
A/C! Please visit our library at
Power Supply
Description
www.storeitcold.com/support
www.storeitcold.com/support-library
Data Cable
UL File Number
E500290
Action Type
Type 1
Software Class
Class A
Pollution Degree
2
Rated Impulse Voltage
330V
and read the detailed CoolBot Pro Manual.
for a detailed Installation Guide on
©2020 Store It Cold, LLC
1 |
P a g e
Advertisement
Table of Contents
Related Manuals for Store It Cold CoolBot Pro
Summary of Contents for Store It Cold CoolBot Pro
- Page 1 CoolBot. If you have a window A/C, go straight to the “CONNECTING YOUR COOLBOT PRO TO YOUR AIR CONDITIONER” Section of this Guide (page 3). NOTE: Your CoolBot Pro will keep your cooler cold but you won’t be able to access online data or change settings from the CoolBot Pro App.
- Page 2 STEP 1 Unpack the CoolBot Pro in an area with good Wi-Fi reception (outside of your cooler and close to your Router is best). Plug in the Temperature Sensors and the Heater Cable into the corresponding ports (See diagram on page 4). Don’t connect the cables to your A/C and don’t plug in the power supply yet.
- Page 3 STEP 8 If you are not connecting your CoolBot Pro to a Wi-Fi network, skip this step and go to Step 9. Mount the CoolBot Jumper outside of your cooler in a location close enough for the provided Data Cable (~25ft) to connect the CoolBot Jumper to the CoolBot Pro.
- Page 4 P a g e CoolBot Pro Quick Start Set Up Guide Rev 2020 – 01A UL ©2020 Store It Cold, LLC...
