Store It Cold CoolBot pro Quick Start Manual
Wi-fi enabled patented digital temperature controller
Hide thumbs
Also See for CoolBot pro:
- Construction manual (72 pages) ,
- Instruction manual (26 pages) ,
- Manual (4 pages)
Table of Contents
Advertisement
Quick Links
CoolBot Pro
Temperature Sensors
BOX CONTENTS
Qty
Item
1
CoolBot Pro
1
CoolBot Jumper
2
Temperature Sensors
1
Heater
1
Data Cable
1
Power Supply
TECHNICAL DATA
Classification
Temperature Regulating and Indicating Equipment
Rated
5V DC, SELV, <15W, Class 2
Purpose
Operating Control
Control Construction
Independently Mounted for Surface Mounting
Power Supply
For use with Phihong PSAC05A-050L6 power supply
BEFORE STARTING
•
Do you have a compatible air conditioner?
•
Mini Split A/Cs.
Skip this step-by-step guide. Detailed Mini Split-CoolBot Installation Guide available at:
www.storeitcold.com/support-library/
•
Important.
Follow this step-by-step guide entirely to ensure proper installation of the CoolBot Pro to the air conditioner.
Complete CoolBot Pro Instruction Manual available at our CoolBot Info section at:
•
No Wi-Fi? Or don't want to use the Wi-Fi feature?
generation CoolBots without connecting the CoolBot Jumper. NOTE: The CoolBot Pro will keep your cooler cold but you won't be
able to access online data or change CoolBot Pro settings directly from the App.
•
Using with Wi-Fi?
Start on page 2. Connect only to a secured 2.4GHz Wi-Fi Network (5GHz is not supported).
•
Installation Video.
Watch our CoolBot Pro installation video at:
CoolBot Pro Quick Start Set Up Guide
CoolBot Jumper
Power Supply
Heater

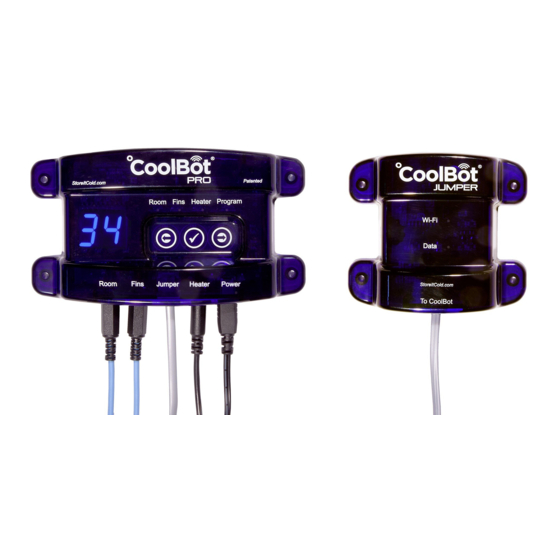

Patented Digital Temperature Controller
Wi-Fi Radio Signal Module
Sensor Cables (Blue Cable - Black Tip) with external 2.5mm jack connector
CoolBot Heater Cable (Black Cable - Red Tip) with external 2.5mm jack connector
Data Transfer Cable (Silver or Grey) with RJ11 connector on both ends
Mini-USB port connector cable. Input: 110V-240V / Output: 5VDC, 1Amp
For a list of compatible A/Cs visit:
Go straight to page 3. You can use the CoolBot Pro just like previous
www.storeitcold.com/build-it/install-your-coolbot/
Rev 2021 – 01A UL
Data Cable
Description
UL File Number
Action Type
Software Class
Pollution Degree
Rated Impulse Voltage
www.storeitcold.com/support-library/
www.storeitcold.com/support-library/
E500290
Type 1
Class A
2
330V
1 |
P a g e
©2021 Store It Cold, LLC
