MULTIQUIP WHITEMAN Series Operation Manual page 25

24
22
28
20
17. Rear Guard — Remove to access the right side
of the engine and internal components for service
and maintenance.
18. Seat Switch — Recognizes when the operator is
seated. Trowel blades will not turn and engine speed
will not rise above idle unless the operator is seated.
19. Right-Side Spider — Consists of trowel arms, blades,
wear plate, thrust collar, etc.
20. Left-Side Spider — Consists of trowel arms, blades,
wear plate, thrust collar, etc.
21. Fuel Selection Switch — When the rocker switch
is pressed to the right, PROPANE mode is selected,
and the GREEN light is ON. When the rocker switch
is pressed to the left, GAS mode is selected, and the
GREEN light is OFF.
22. Fuel Filler Cap/Fuel Gauge — Remove this cap to
add fuel when the fuel gauge indicates low fuel level.
PAGE 25 — HHXDF4-DF5 RIDE-ON TROWEL • OPERATION MANUAL — REV. #5 (08/30/19)
26

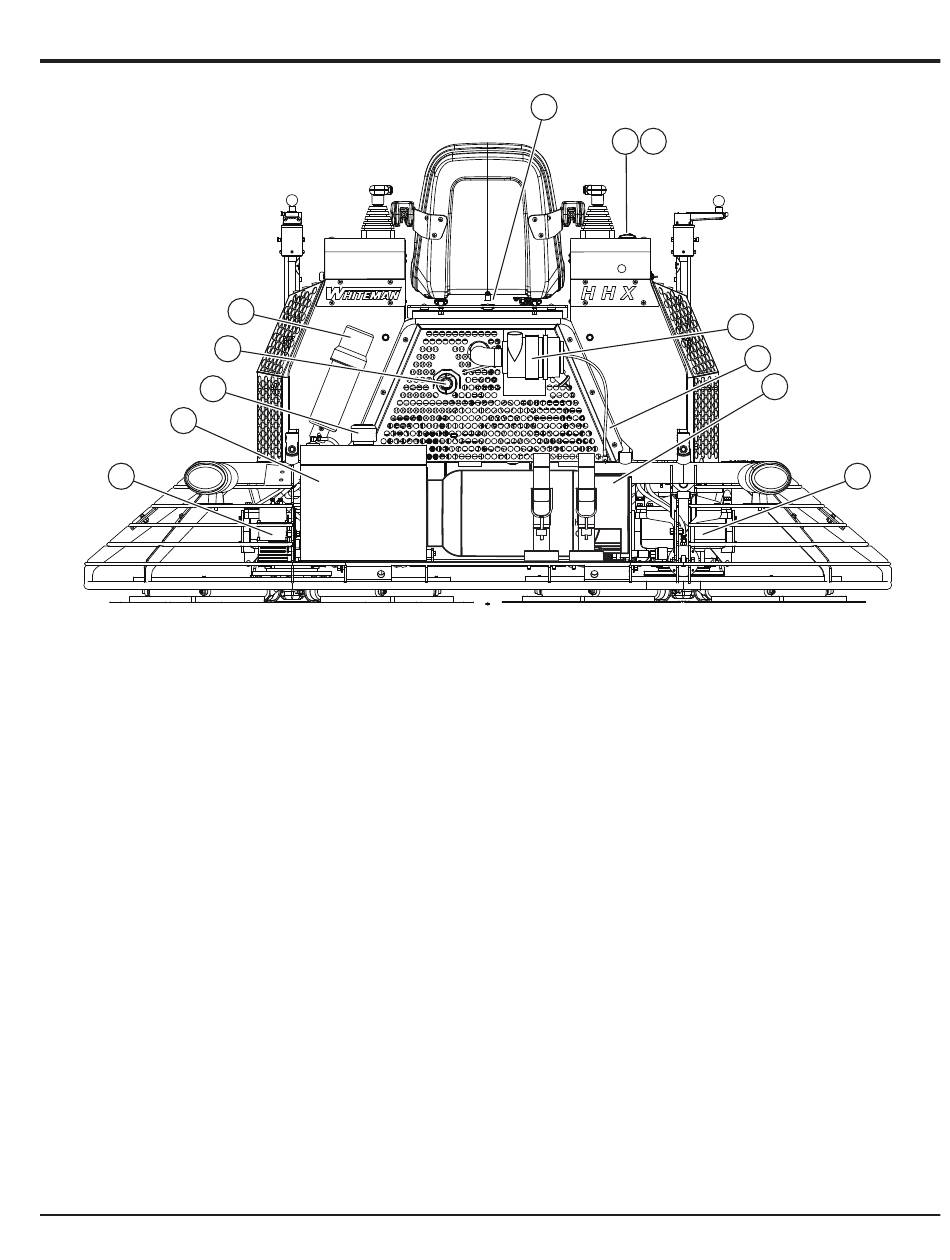

Figure 6. HHXDF4-DF5 Rear
COMPONENTS (TROWEL)
18
21 23
23. Engine Status Gauge — Multi-cluster gauge indicates
the following:
„ Low pressure oil LED
„ Overheat LED
„ Auxiliary LEDs
„ Glow plug pre-heat LED
„ Battery charge LED
24. Exhaust Outlet — Exhaust gases are routed through
the muffler and out of the back of the rear guard.
25. Air Filter Assembly — Helps prevent dirt and debris
from entering the fuel system. Lift the locking latch on
the canister to gain access to the filter element.
26. Documentation Canister — Storage for trowel and
engine manuals or any other relevant documentation.
27. Propane Tank — Holds 33.5 lb. (36.3 liters) of
propane. Uses HD-5 or HD-10 liquid propane. HD-5
is recommended.
28. Fuel Tank (Gasoline) — Holds 9.5 gallons (36 liters)
of gasoline. Use either 87 or 89 octane rated gasoline.
25
17
27
19
