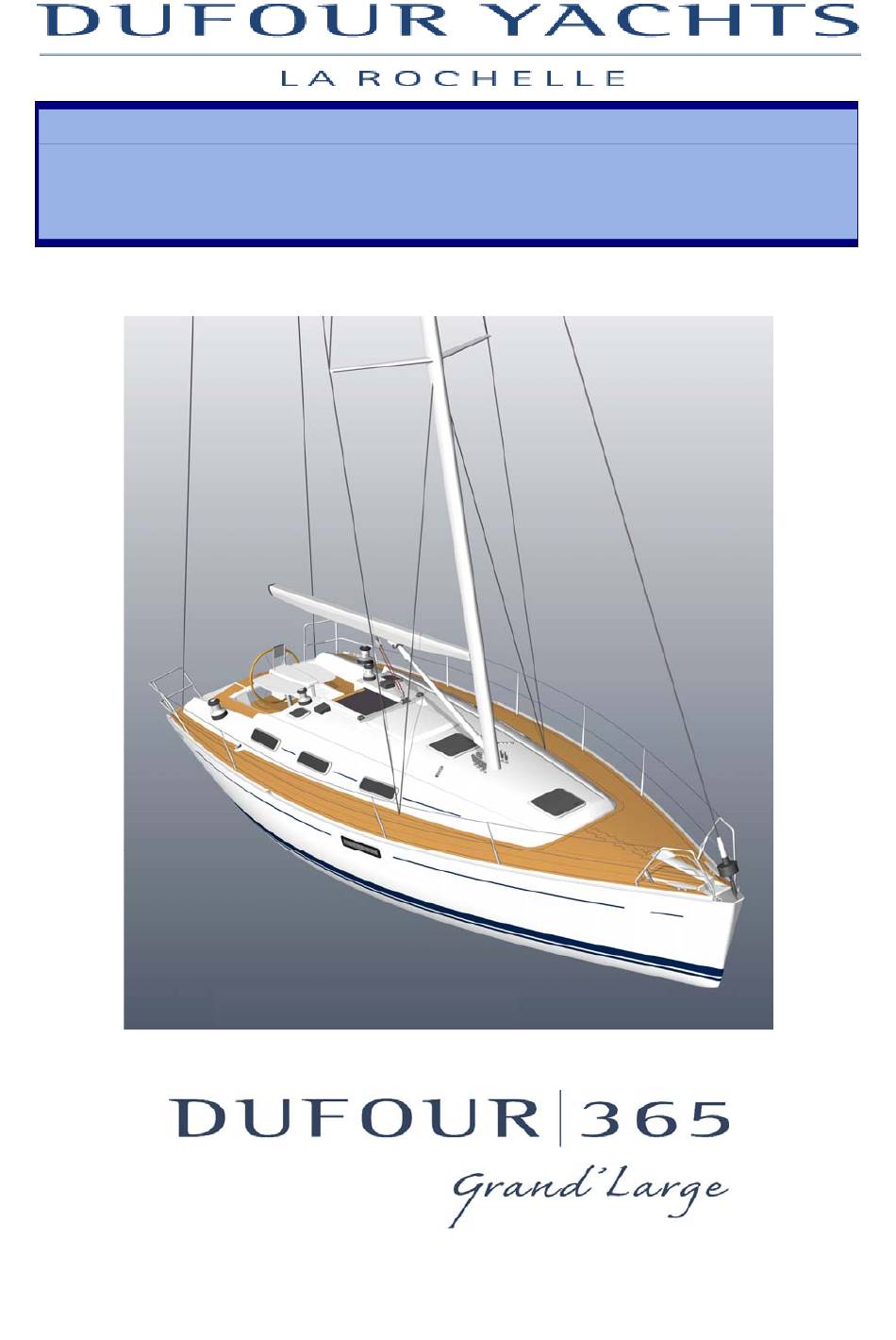

  • Page 1 OWNER’S MANUAL EN G LI S H 1 8 . 1 1 . 0 8 A 0 9...
  • Page 2 EN G LI S H 2 0 0 8 - 1 1 - 1 8 Page 2 / 80 D U F O U R 3 6 5...
  • Page 3 I have received the Owner’s Manual for my DUFOUR 365 and accept its being written in English. Dated: Signature: Detach along dotted line ………………………………………………………………………………………………………………… Owner’s Manual receipt acknowledgement to be returned to DUFOUR YACHTS 1, Rue Blaise Pascal- 17187 PERIGNY CEDEX- FRANCE I, the undersigned: Name Address owner of DUFOUR 365 no.
  • Page 4 EN G LI S H 2 0 0 8 - 1 1 - 1 8 Page 4 / 80 D U F O U R 3 6 5...

  • Page 5: Table Of Contents

    CONTENTS INTRODUCTION____________________________________________________________________________ 7 GENERAL INFORMATION __________________________________________________________ 8 Design category _____________________________________________________________________ 8 Certification ________________________________________________________________________ 8 Identification _______________________________________________________________________ 8 Builder's plate ______________________________________________________________________ 9 PRINCIPAL SPECIFICATIONS ______________________________________________________ 10 III. ELECTRICAL SYSTEMS ____________________________________________________________ 11 Safety and operating instructions for the electrical system _________________________________ 11 Installing new equipment ____________________________________________________________ 11 Batteries __________________________________________________________________________ 12 Electric windlass____________________________________________________________________ 12...
  • Page 6 Accommodation layout ______________________________________________________________ 31 III. Deck fittings plan ___________________________________________________________________ 32 Sail plan __________________________________________________________________________ 34 Halyard & sheet routing diagram ______________________________________________________ 36 110 V circuit diagram _______________________________________________________________ 38 VII. 220 V circuit diagram _______________________________________________________________ 40 VIII. Charging & power circuit diagram _____________________________________________________ 42 12 V / 220 V Electrical panel diagram __________________________________________________ 44 Distribution panel terminal rail diagram ________________________________________________ 46 12 V electrical installation diagram ____________________________________________________ 48...

  • Page 7: Introduction

    DUFOUR YACHTS is pleased to present you with this Manual which will help you get to know your boat better. This manual has been produced to help you enjoy the use of your boat in complete safety. It contains details about on board fittings and installations as well as information about use and maintenance.

  • Page 8: General Information

    So always take care before putting to sea. DUFOUR YACHTS is not able to guarantee perfect functioning of the boat in exceptional sea conditions (violent storms, hurricanes, cyclones, waterspouts, etc.) SUMMARY OF DESIGN CATEGORIES...

  • Page 9: Builder's Plate

    The Builder’s identification plate is located in the cockpit. It carries important information, which is explained below. Design category = A : Ocean-going (see 1.1) : Recommended by the builder for navigation in sea Max. number of people = 8 conditions for category for which it was built.

  • Page 10: Principal Specifications

    Model: DUFOUR 365 Designer: Umberto Felci Design category Notified body no. CE/0609 LOA: 10.81 m Hull length: 10.53 m LWL: 9.26 m Maximum beam: 3.65 m Draught (shallow / deep keel): 1.70 m / 1.90m Mast height clearance: 15.00 m Ballast weight: 1,740 kg / 1,650 kg Light displacement (incl.

  • Page 11: Electrical Systems

    WARNING Always: - Check the condition of the batteries (charge and electrolyte level) and the charging system before putting to sea. - Disconnect and remove batteries for wintering. - Do not let battery voltage drop below 10.5V during wintering. - Carry spare lamps for all navigation lights and interior lighting.

  • Page 12: Batteries

    The battery capacity has been designed to meet the power requirements of the on-board accessories. To avoid any problems, it is necessary to keep a close eye on the maintenance and correct charging of the batteries. NOTE When installing new electrical appliances, take care that the overall consumption of these appliances remains within the capacity of your batteries.

  • Page 13: 220 / 110 Volt Installation

    Your boat is delivered without a supply cable or shore connection plug. The cable used must be designed for exterior use. Its cross-sectional area must be appropriate for its length and the rating of the main circuit-breaker (see electrical diagram). The plug must be suitable for the socket on the shore (if necessary, seek the advice of a professional).

  • Page 14: Gas Installation

    Read carefully all instructions for cooker and regulator before use or maintenance. Ensure that the gas cylinder and regulator are in accordance with the requirements of the cooker (flow rate, pressure, type of gas) and with the regulations in force in the country where it is being used.

  • Page 15: Checking The System

    - The gas system must be tested periodically: ° Close all the cooker taps. ° Open the cooker supply and regulator valves. ° Check all connections are gas-tight using a leak detector or by applying soapy water. ATTENTION! Do not use solutions containing ammonia. DANGER! Never use a flame to look for leaks.

  • Page 16: Drain & Sanitation System

    & & Pump type Theoretical flow rate Manual 40.5 l / 45 strokes/min Electric 15 l / min Read carefully the operating and maintenance instructions for the bilge pump that goes with your boat. WARNING! - Ensure that bilge pumps are in working order before putting to sea. - Know where to find the hand pump and its handle - Know where to find the switch for the electric pump on the electrical panel - Clean the well and pump filters regularly...

  • Page 17: Seacocks

    Seacocks are of the ¼-turn type: - OPEN position: handle in line with seacock body, - CLOSED position: handle perpendicular to seacock body. OPEN position Vanne ouverte CLOSED position Vanne fermée ATTENTION! - Never interfere with the tightening of the seacocks to the hull. In the event of a leak, consult a professional.

  • Page 18: Flooding

    Boat flooding risks: - Before putting to sea, always check that portholes, deck hatches and any other openings that could allow flooding are shut. - When under sail, close all seacocks, except the engine water intake. - Periodically check: - Skin fittings, seacocks and pipes are watertight - Proper emptying of the cockpit drains.

  • Page 19: Safety Instructions

    NOTE It is the responsibility of the owner / skipper to: - Have fire-fighting equipment checked in accordance with the stipulations of the builder and the regulations in your country. - Replace fire-fighting equipment if it has expired or been discharged, by extinguishers of equal or greater capacity.

  • Page 20: Engine

    Regular maintenance must be carried out in accordance with the engine manufacturer’s recommendations. Read carefully the engine operating instructions that come with the boat. Do not hesitate to consult your agent or a qualified professional. NOTE Ensure that the cooling circuit water intake seacock is open, and that water is coming out of the engine exhaust.

  • Page 21: Wintering

    Read carefully the operating and maintenance instructions for the engine that goes with your boat and the instructions for wintering. In the absence of other instructions, proceed as follows: Close the engine water intake seacock, Disconnect the pipe from the engine water intake seacock, Drain the sea-water circuit, Place the pipe into a drum of –25°...

  • Page 22: Sailing

    NOTE - The Dufour 365 is equipped with an emergency tiller that must be kept readily accessible, we advise you to stow it in a cockpit locker near the tiller deck plate. - It is only designed for sailing at reduced speed in the event of damage to the helm. To use it: - Unscrew the tiller deck plate cover located in the cockpit floor, Fit the tiller onto the head of the rudder stock.

  • Page 23: Lightning Protection

    Your boat is protected against lightning. The rigging is electrically connected to earth. Nonetheless, for your safety, it is necessary to respect certain precautions. If the vessel has been hit by lightning: - The protection installation must be inspected to detect physical damage and check the integrity of the device, as well as the continuity of the earthing.

  • Page 24: Safety Facilities

    There is no harmonization of mandatory safety equipment across the European Community. You should find out about current national requirements for CE-marked vessels. In France, yachts that have the CE label must carry safety material and equipment on board as specified in Division 224 amended, according to two categories of sailing: closer or farther than 6 nautical miles from shelter.

  • Page 25: Handling, Transporting, Haulout

    When craning, take care that the slings are correctly positioned and are not fouling the propeller, the sail-drive or a fragile transducer. Lifting frames must be wide enough, or fitted with spreaders, so as to avoid applying excessive lateral pressure on the rubbing strakes. Avoid allowing slings to foul the life-lines.

  • Page 26: Guarantee Conditions, Transfer Of Ownership

    EN G LI S H 2 0 0 8 - 1 1 - 1 8 Page 2 6 / 80 D U F O U R 3 6 5...
  • Page 27 EN G LI S H 2 0 0 8 - 1 1 - 1 8 Page 2 7 / 80 D U F O U R 3 6 5...
  • Page 28 Signed for DUFOUR YACHTS on: ......Return the copy within 15 days of completing the transaction to S A V DUFOUR YACHTS, 1 rue Blaise Pascal, 17187 - PERIGNY CEDEX FRANCE EN G LI S H 2 0 0 8 - 1 1 - 1 8...
  • Page 29 DRAWINGS DUFOUR 365 Presentation plan ___________________________________________________________________ 30 Accommodation layout ______________________________________________________________ 31 III. Deck fittings plan ___________________________________________________________________ 32 Sail plan __________________________________________________________________________ 34 Halyard & sheet routing diagram ______________________________________________________ 36 110 V circuit diagram _______________________________________________________________ 38 VII. 220 V circuit diagram _______________________________________________________________ 40 VIII.

  • Page 30: Presentation Plan

    EN G LI S H 2 0 0 8 - 1 1 - 1 8 Page 3 0 / 80 D U F O U R 3 6 5...

  • Page 31: Accommodation Layout

    ACCOMMODATIONS fig.A 3-cabin version fig.B 2-cabin version EN G LI S H 2 0 0 8 - 1 1 - 1 8 Page 3 1 / 80 D U F O U R 3 6 5...

  • Page 32: Deck Fittings Plan

    Label Description Label Description Stemhead fitting Handle pocket Forestay chain plate Stanchion with strut * Bowsprit jib-boom mount (spinnaker) * Chain anti-chafe plate Outboard motor mount * Bow rail Stainless-steel Life-lines (set) Stainless-steel deflector Stem protector * Deck ventilator Electric winch* Dorade ventilation box + protection * Folding Steering wheel * Releasable stay chain plate *...
  • Page 33 EN G LI S H 2 0 0 8 - 0 6 - 1 1 P a g e 3 3 / 71 D U F O U R 3 6 5...

  • Page 34: Sail Plan

    12.86 m 3.78 m 11.83 m 4.20 m LP (135%) 5.15 m Genoa area 33.0 m² Mainsail area 28.5 m² EN G LI S H 2 0 0 8 - 0 6 - 1 1 P a g e 3 4 / 71 D U F O U R 3 6 5...
  • Page 35 EN G LI S H 2 0 0 8 - 0 6 - 1 1 P a g e 3 5 / 71 D U F O U R 3 6 5...

  • Page 36: Halyard & Sheet Routing Diagram

    & & Label Description Simple swivel block & T 57 shackle Double pulley with becket Mainsail sheet - light blue T40 Fiddle block Boom vang – black Fiddle block and T40 cleat Outhaul - white Mainsail halyard – black Adjusting Mainsail car – blue Reef N°1 –...
  • Page 37 EN G LI S H 2 0 0 8 - 0 6 - 1 1 P a g e 3 7 / 71 D U F O U R 3 6 5...

  • Page 38: 110 V Circuit Diagram

    Label Description Equipment Shore cable * Electrical cabinet with master circuit breaker * Electrical box with circuit breaker * Battery charger * Junction box * Water-heater 110V-60Hz outlets * Electrical wiring colours light blue green brown black green/yellow white Option Not supplied EN G LI S H 2 0 0 8 - 0 6 - 1 1 P a g e 3 8 / 71...
  • Page 39 EN G LI S H 2 0 0 8 - 0 6 - 1 1 P a g e 3 9 / 71 D U F O U R 3 6 5...

  • Page 40: 220 V Circuit Diagram

    Label Description Equipment Shore cable * Electrical cabinet with master circuit breaker * Electrical box with circuit breaker * Battery charger * Junction box * Water-heater 220V outlets * Electrical wiring colours light blue green brown black green/yellow white Option EN G LI S H 2 0 0 8 - 0 6 - 1 1 P a g e 4 0 / 71 D U F O U R 3 6 5...
  • Page 41 EN G LI S H 2 0 0 8 - 0 6 - 1 1 P a g e 4 1 / 71 D U F O U R 3 6 5...

  • Page 42: Charging & Power Circuit Diagram

    & & Label Description Electric winch* Windlass remote control * Remote control relay * D Connector Battery charger * 12V distribution panel Single-pole 80A circuit breaker* Auxiliary batteries (1 ; 2*) 125A fuse Auxiliary battery isolator 5A fuse* Alternator Splitter Starter motor Engine battery Engine battery isolator...
  • Page 43 11-06-08 Dufour 365 EN G LI S H 2 0 0 8 - 0 6 - 1 1 P a g e 4 3 / 71 D U F O U R 3 6 5...

  • Page 44: 220 V Electrical Panel Diagram

    Description Protection Deck light * / Spares 1 Miscellaneous 2 Windlass control Water pump unit Bilge pump Shower pump Navigation lights Mooring light Steaming light 10 Refrigerator 11 Navigation instrument pack 12 Autopilot 13 Saloon lights 14 Cabins lighting 15 HIFI / 12V outlet * not supplied EN G LI S H 2 0 0 8 - 0 6 - 1 1 P a g e 4 4 / 71...
  • Page 45 11-06-08 Dufour 365 EN G LI S H 2 0 0 8 - 0 6 - 1 1 P a g e 4 5 / 71 D U F O U R 3 6 5...

  • Page 46: Distribution Panel Terminal Rail Diagram

    Label Description A Connector Water pump unit Battery positive Fridge thermostat relay Bilge pump Navigation equipment * and chart table reading light Shower drain pump(s) Battery negative Autopilot* B connector Navigation lights and compass Battery positive Saloon and chart table lights Mooring light Cabin and head lights Steaming light...
  • Page 47 11-06-08 Dufour 365 EN G LI S H 2 0 0 8 - 0 6 - 1 1 P a g e 4 7 / 71 D U F O U R 3 6 5...

  • Page 48: Electrical Installation Diagram

    Label Description Port navigation light Starboard navigation light Windlass * Windlass relay* Swivelling spot Bulkhead light + switch Head bulkhead light + switch Hi-fi/radio CD speaker * Cockpit speaker * Chart table reading light 12V control panel 12V outlet Refrigeration unit Shower pump Bilge pump Engine battery...
  • Page 49 EN G LI S H 2 0 0 8 - 0 6 - 1 1 P a g e 4 9 / 71 D U F O U R 3 6 5...

  • Page 50: 220 V Electrical Installation Diagram

    Label Description 220 V ( or 110 V ) outlet * Water-heater Battery charger * Master circuit breaker* Shore cable * Electrical box * Option EN G LI S H 2 0 0 8 - 0 6 - 1 1 P a g e 5 0 / 71 D U F O U R 3 6 5...
  • Page 51 EN G LI S H 2 0 0 8 - 0 6 - 1 1 P a g e 5 1 / 71 D U F O U R 3 6 5...

  • Page 52: Steering System Diagram

    Label Description Emergency tiller Steering wheel Compass Rudder stop Quadrant pin Rudder blade + stock Thrust bearing Nylon grommet Upper and lower bearings Rudder trunk Tiller deck plate Pilot chain Autopilot motor * Automatic pilot gear * Pilot plate * Bulkhead fitting + brake 5/8P chain assembly Quadrant...
  • Page 53 EN G LI S H 2 0 0 8 - 0 6 - 1 1 P a g e 5 3 / 71 D U F O U R 3 6 5...

  • Page 54: Gas System Diagram

    Label Description Gas cylinder ** Shut-off valve ** Regulator ** Medium-length connecting hose Spacer piece / 6×8 pipe Watertight bulkhead fitting PVC pipe 6×8 copper pipe CE gas shut-off valve (in compartment below cooker) Long connection hose 2-burner stove / oven Not supplied EN G LI S H 2 0 0 8 - 0 6 - 1 1 P a g e 5 4 / 71...
  • Page 55 EN G LI S H 2 0 0 8 - 0 6 - 1 1 P a g e 5 5 / 71 D U F O U R 3 6 5...

  • Page 56: Abandon Ship Plan

    Label Description EXIT Emergency exit Recommended fire-extinguisher locations Under chart table ** Under saloon's settee ** Engine compartment extinguishing hole Not supplied EN G LI S H 2 0 0 8 - 0 6 - 1 1 P a g e 5 6 / 71 D U F O U R 3 6 5...
  • Page 57 EN G LI S H 2 0 0 8 - 0 6 - 1 1 P a g e 5 7 / 71 D U F O U R 3 6 5...

  • Page 58: Fresh-Water System Diagram

    Label Description Filler deck-plate Filler hose Vent Vent hose Bow water tank Cold water pipe 2 way manifold Single-lever shower mixer tap Water pump unit Fresh-water pump Hot-water tank/engine heat exchanger pipe Water-heater Single-lever mixer tap Deck shower Stern water tank Hot water pipe EN G LI S H 2 0 0 8 - 0 6 - 1 1 P a g e 5 8 / 71...
  • Page 59 EN G LI S H 2 0 0 8 - 0 6 - 1 1 P a g e 5 9 / 71 D U F O U R 3 6 5...

  • Page 60: Drain System Diagram

    Label Description Electric bilge pump Strainer Ø20 discharge hose Electric bilge pump Skin fitting Manual bilge pump Strainer Ø25 discharge hose Manual bilge pump Skin fitting EN G LI S H 2 0 0 8 - 0 6 - 1 1 P a g e 6 0 / 71 D U F O U R 3 6 5...
  • Page 61 EN G LI S H 2 0 0 8 - 0 6 - 1 1 P a g e 6 1 / 71 D U F O U R 3 6 5...

  • Page 62: Skin Fitting Location Diagram

    Label Description Ø Skin-fittings + seacocks Galley sink discharge 1" Washbasin discharge 1" Toilet sea-water intake 3/4" Toilet discharge 1"1/4 Holding tank discharge * 2" Foot pump sea water intake* 1/2" Shower waste 3/4" Skin fittings Electric bilge pump discharge 3/4"...
  • Page 63 EN G LI S H 2 0 0 8 - 0 6 - 1 1 P a g e 6 3 / 71 D U F O U R 3 6 5...

  • Page 64: Mechanical Installation Diagram

    Label Description General Engine Sail-drive Engine sea-water pump Polyester engine bearer Engine control panel (Port) Propeller Anode Cooling / Exhaust system Sea-water seacock Anti-siphon swan neck Waterlock silencer Exhaust pipe Exhaust outlet Fuel system Fuel filler deck plate Filler hose Diesel tank vent Diesel tank vent hose Fuel tank...
  • Page 65 EN G LI S H 2 0 0 8 - 0 6 - 1 1 P a g e 6 5 / 71 D U F O U R 3 6 5...

  • Page 66: Holding Tank Fitting Drawing - Layout 3 Cabins

    Label Description 3-cabin version Skin fitting & seacock, ¾" Skin fitting & seacock, 1¼" Skin fitting & seacock, 2" * 20 mm Ø hose 38 mm D anti-odor hose * 51 mm Ø anti-odour hose * 38 mm Ø PVC 3-way valve * Polythene holding tank * 50 mm D alu.
  • Page 67 EN G LI S H 2 0 0 8 - 0 6 - 1 1 P a g e 6 7 / 71 D U F O U R 3 6 5...

  • Page 68: Holding Tank Fitting Drawing - Layout 2 Cabins

    Label Description 2-cabin version Skin fitting & seacock, ¾" Skin fitting & seacock, 1¼" Skin fitting & seacock, 2" * 20 mm Ø hose 38 mm D anti-odor hose * 51 mm Ø anti-odour hose * 38 mm Ø PVC 3-way valve * Polythene holding tank * 50 mm D alu.
  • Page 69 EN G LI S H 2 0 0 8 - 0 6 - 1 1 P a g e 6 9 / 71 D U F O U R 3 6 5...

  • Page 70: Sea And Inland Waterways Charter

    EN G LI S H 2 0 0 8 - 0 6 - 1 1 P a g e 7 0 / 71 D U F O U R 3 6 5...
  • Page 71 EN G LI S H 2 0 0 8 - 0 6 - 1 1 P a g e 7 1 / 71 D U F O U R 3 6 5...
