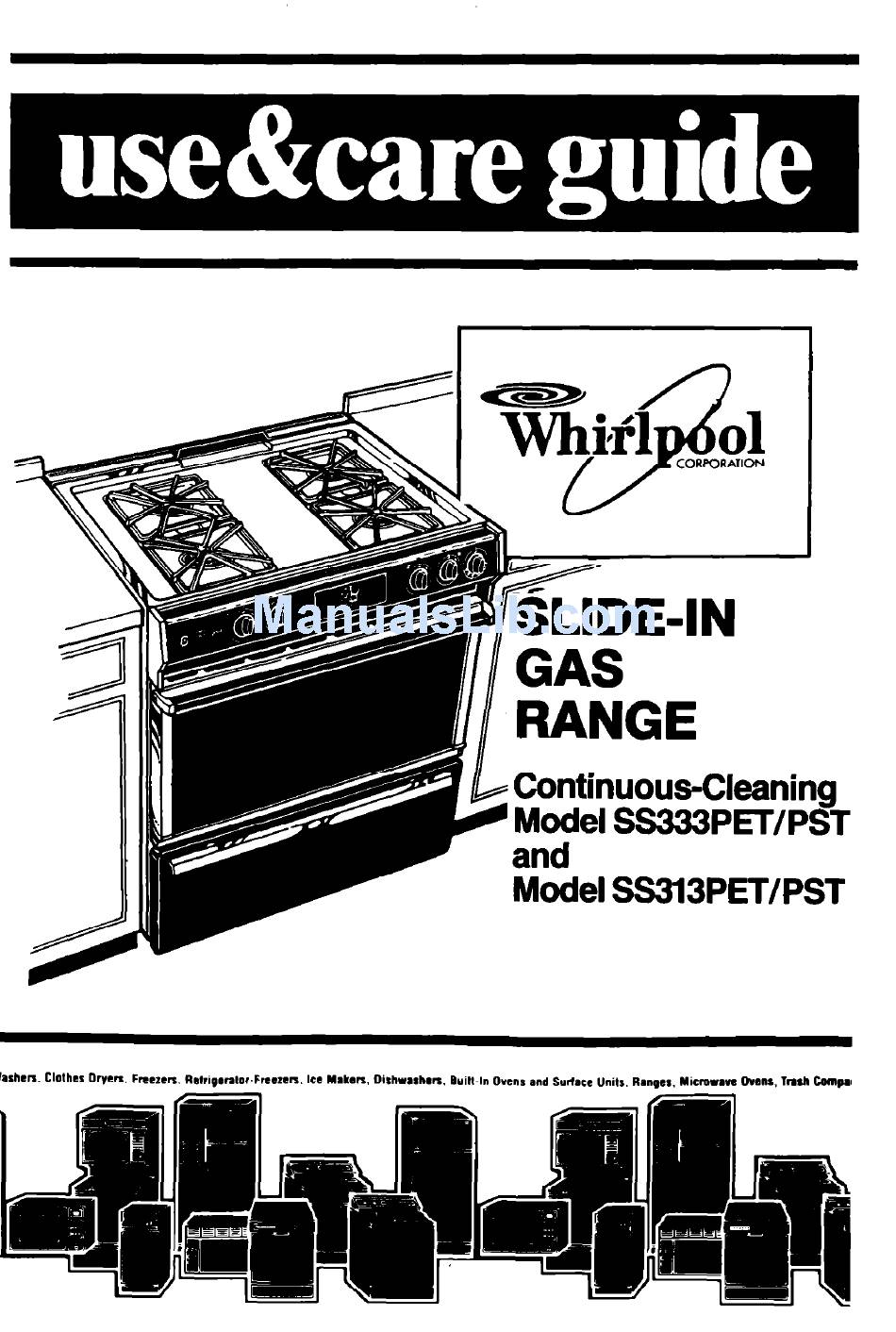

- Page 1 L Continuous-Cleaning Model SS333PEUPST Model SS3l3PET/PST...
-
Page 2: Table Of Contents
Oven Light . . . Optional Trim Kit . . IF YOU NEED SERVICE OR . . . ASSISTANCE WHIRLPOOL WARRANTY 01988 Whirlpool Corporation INSTRUCTIONS” and the Cooklng Gulde Page ... . -
Page 3: Instructions
You are personally responsible Reading and following all safety precautions the Cooking Guide. Having your range installed by a qualified Installing the range where if is protected from the elements, and on a level floor strong enough to hold its weight. Having your range properly connected [See “Installation Instructions”.) Having your range properly connected... - Page 4 use a wet pot holder. DO NOT Steam burns can result. use a towel or bulky cloth as a pot holder. They could catch fire and burn you. the utensils you use 12. MAKE SURE are large enough to contain food and avoid boii-overs and spill~vers.
-
Page 5: Parts And Features
Parts and features Models SS333PEl/PST and SS313PETIPST CHROME COOKTOP CONTINUOUS- CLEANING (SS333PETlPST) STANDARD (SS313PElTIPST) MODEL AND SERIAL NUMBER PLATE (Under ‘OVEN BURNER (Not Shown) REMOVABLE OVEN DOOR OVEN OVEN Cooktop) REFLECTOR PANS CONTROL OVEN LIGHT OVEN RACK GUIDE... -
Page 6: Using Your Range
Using your range Using the Surface Burners These ranges are equipped Standing pilots must be lit initially with a match following the directions on page12. The pilot light will remain lit when the burners are turned off. To turn a burner on again, just push in and turn the control knob to LITE and the burner will light. -
Page 7: Setting The Clock
SURFACE BURNER INDICATOR RIGHT REAR CONTROL KNOB See the “Cooklng Gulde” Until you get used to the settings, Use LITE to light Use HI to start foods the burner. After the burner lights, or to bring turn control uids to a boil. back to a de- sired setting... -
Page 8: Using The Minute Timer B
Using the Minute Timer The Minute Timer does not start or stop the oven. It works like a kitchen timer. Set it in minutes up to an hour. You will hear a buzzer when the set time is up. DO NOT PUSH IN THE KNOB PUSHING IN AND TURNING THE MINUTE TIMER KNOB CHANGES THE CLOCK SETTING. -
Page 9: Broiling
2. Set the Oven Temp control knob to the baking temperature you want. The oven burner will auto- matically light in 50-60 seconds 4. During baking, the oven burner will turn on and off to maintain the temperature settina. Broiling The Broiler Drawer is located below the oven door. -
Page 10: Oven Tint
3. Place food on broiler pan and position the broiler pan turning on the broiler. See pan placement chart in the “Cooking Guide” for recommended positions. DO NOT PREHEAT THE BROILER BEFORE USING. COMPLETELY CLOSE THE BROILER DRAWER DURING BROILING. The Oven Vent Hot air and moisture escape from the oven through a vent located at the... -
Page 11: Lighting Standing Pilots
Lighting Standing Pilots To light Cooktop Remove the grates and reflector pans from cooktop. Remove the cooktop. (See page 13.) 2. Make sure all controls are OFF. To light Oven Burner Pilot: Make sure the Oven Temp control knob is OFF. 2. -
Page 12: Caring For Your Range
Caring for your range Control Panel Pull knobs straight off. Use warm soapy water or glass cleaner and a soft cloth to wipe the control panel. Rinse and wipe dry. Surface Burner Grates and Reflector Pans 3. Wash knobs with warm soapy water and a soft cloth. -
Page 13: Removable Cooktop
3. Wash the grates and reflector pans in automatic dishwasher or use warm soapy water and plas- tic scrub pad. Rinse and dry well. Removable Cooktop . Remove Surface Burner Grates and Reflector Pans. 3. Wipe surface under the cooktop with warm soapy water. -
Page 14: Surface Burners
Surface Burners To remove the cooktop, follow the instructions on pagel3. Wipe off surface burners with warm soapy water and a soft cloth after each use. Occasionally check surface burner flames for size and shape as shown. If flames do not burn properly, you may need to remove the surface burners for cleaning (see pagel7) or call a qualified technician... -
Page 15: Continuous-Cleaning Oven
The Continuous-Cleaning (Model SS333PET/PST) Standard oven walls are coated with smooth porcelain. Your continuous- cleaning oven walls are coated with a special, rougher porcelain. A fat spat- ter beads up on the smooth surface, but spreads out on the rougher surface. The bead of fat on the smooth surface chars and turns black. -
Page 16: Standard Oven Cleaning
- Use soapy steel wool pad RACKS for best cleaning results. Rinse well. Standard Oven Cleaning (Model SS313PET/PST) The Standard Oven has to be hand cleaned. Use warm soapy water and steel wool pads or a commercial further instructions. Do not allow... -
Page 17: Cleaning Chart
Cleaning Chart PART WHAT TO USE Warm soapy EXferl0r surtaces soft cloth. Plastic scrubbing stubborn Surtace burner Warm soapy grafes a plastic Chrome Warm soapy reflector pans a plastic Surface burners Warm soapy a plastic or a solution of boiling 2 tablespoons Broiler drawer,... - Page 18 PART WHAT TO USE Control panel Warm soapy spray glass cleaner a soft cloth. Oven racks Warm soapy soapy Oven door Spray gloss cleaner glass warm soapy plastic Contlnuous- Warm soapy Cleanlng oven soapy Heavy-duty or shallow Standard Warm soapy oven soapy Commercial...
-
Page 19: Oven Light
Optional Trim Kit (Part No. 4314884) A trim kit is available for the unfinished edges of your counters. Order the kit from your Whirlpool Dealer or TECH-CARE’ service company. 2. Remove the light bulb from its socket. 4. Turn the power back on at the... -
Page 20: If You Need Service Or Assistance
If you need service or assistance, we suggest you follow these five steps: t Before calling for assistance... Pertormance problems from little things you can without tools of any kind. If nothlng operates: Is the range properly connected gas and electrical supplies? (See “Installation Instructionsl’) - Page 21 TECH- partforyour replacement work rlght, because they are made to the same exacting used to build every new Whirlpool appliance. To locate FSP replacement your area, refer to Step 3 above or call the Whirlpool sistance number In Step 2.
- Page 22 Notes...
- Page 23 Notes...
-
Page 24: Warranty
Outslde the Unlted States, a different contact your franchised Whirlpool Part No. 76058-0014314834 01988 Whirlpool Corporation WHIRLPOOL WILL PAY FOR FSP@ replacement parts and repair correct defects in materials Service must be provided TECH-CARE@ service company.
