A WARNING
. ALL RANGES CAN
TIP
. INJURY TO PERSONS
COULD RESULT
. INSTALL ANTI-TIP
DEVICE PACKED
WITH RANGE
. SEE INSTALLATION
INSTRUCTIONS
IMPORTANT:
Read and save
these instructions.
Important:
Installer:
Leave Installation
instructions
with
the homeowner.
Homeowner:
Keep Installation
Instructions
for future reference.
Save Installation
Instructions
for local
electrical
inspector's
use.
-307563-02-O/4363 123
30" Gas
Downdraft
Slide-in
Range
with self-cleaning
oven s
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Whirlpool SS373PEX1
Summary of Contents for Whirlpool SS373PEX1

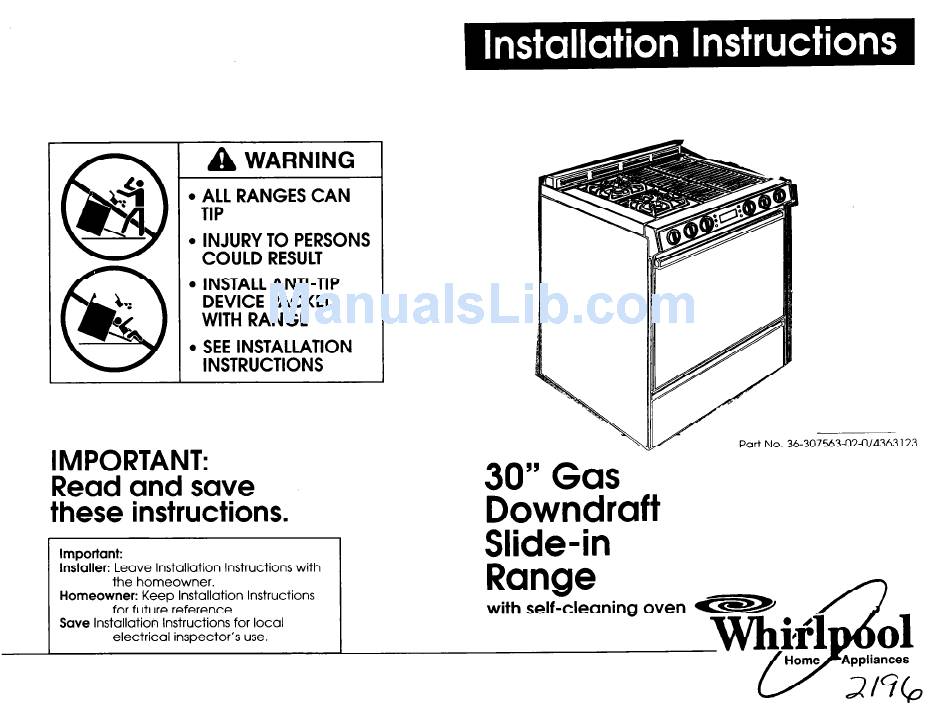

- Page 1 A WARNING . ALL RANGES CAN . INJURY TO PERSONS COULD RESULT . INSTALL ANTI-TIP DEVICE PACKED WITH RANGE . SEE INSTALLATION INSTRUCTIONS IMPORTANT: Read and save these instructions. Important: Installer: Leave Installation instructions with the homeowner. Homeowner: Keep Installation Instructions for future reference.
-
Page 2: What To Do If You Smell Gas
Before you start... Proper installation is your responsibility. A qualified technician should install this range. Make sure you have everything necessary for correct installation. It is the responsibility of the installer to comply with the installation clearances specified on the serial/rating plate. -
Page 3: Electrical Requirements
This range is equipped for use with NATURAL gas only and is design- certified by A.G.A. Provide a gas supply line of 3/4” rigid pipe to the range location. A smaller size pipe on long runs may result in insufficient gas supply. - Page 4 Floor venting installation connects range exhaust floor duct wall/floor transition Figure 4 Figure 5 Left side venting installation (Requires Kit No. 43 15772 available from dealer.) connects Figure 6 range exhaust Figure 7 Recommended duct length for island or peninsula installations Use 6”...
- Page 5 shim With Without backsplash backsplash For countertops with a backsplash, the distance from the rear wall to the gasket must be at least 2-l /2”; 2-5/8” maximum. Attach wall duct to range fan exhaust with wall duct directed toward rear of range.
- Page 6 Electronic Ignition System Initial lighting and gas flame adjustments. Cooktop and oven burners use electronic ignitors in place of standing pilots. When the cooktop control knob is turned to the “LITE” position, system creates a spark to light the burner. This sparking continues until the...
- Page 7 Prepared by Whirlpool Corporation, Benton Harbor, Michigan If you need setice... In the event that your Whirlpool appliance should need service, call the dealer from whom you purchased the appliance Whirlpoolauthorized service company. Whirlpool-authorized service company listed in the Yellow Pages of your...
