- Page 1 KIT INSTRUCTIONS Biometrics with Biokey with 2D Scanner Release 1.0 9700-0008-7761 Issue A...
- Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
- Page 3 Revision Record Issue Date Remarks Aug 2016 First Issue...

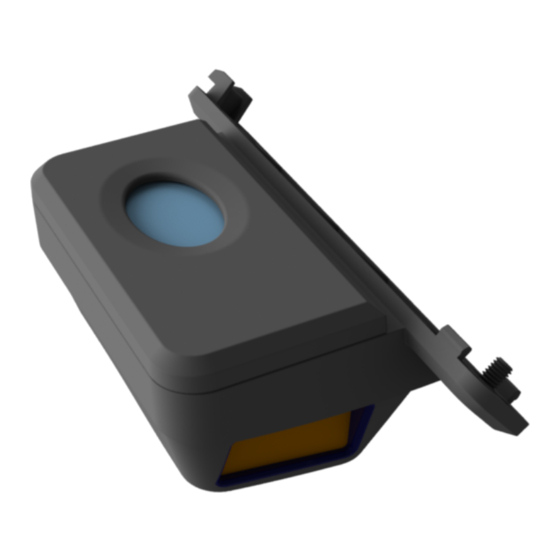

- Page 4 Biometrics with Biokey with 2D Scanner Introduction This kit provides the components to add a Biometrics with Biokey with 2D Scanner.
- Page 5 9700-0008-7761 (Biometrics with Biokey with 2D Scanner) Installation Procedure 1. Remove the Blank Plate, if any, from the rear housing. 2. Disengage the 2D Scanner from the biometrics. a. Remove the screws (2) that secure the 2D Scanner.
- Page 6 9700-0008-7761 (Biometrics with Biokey with 2D Scanner) b. Rotate the 2D Scanner until it is detached. 3. Route and connect the Biometrics and 2D Scanner cables to the corresponding connectors through the opening in the bracket.
- Page 7 9700-0008-7761 (Biometrics with Biokey with 2D Scanner) 4. Snap the 2D scanner into the bracket. Ensure the snaps are fully engaged. 5. Secure with screws (2). 6. Gently push the biometrics and 2D scanner cables into the rear housing.
- Page 8 9700-0008-7761 (Biometrics with Biokey with 2D Scanner) 7. Hook the biometrics and 2D Scanner assembly into rear housing and snap into place. 8. Secure with screw (1).
