NCR 7702-K100 Kit Instructions

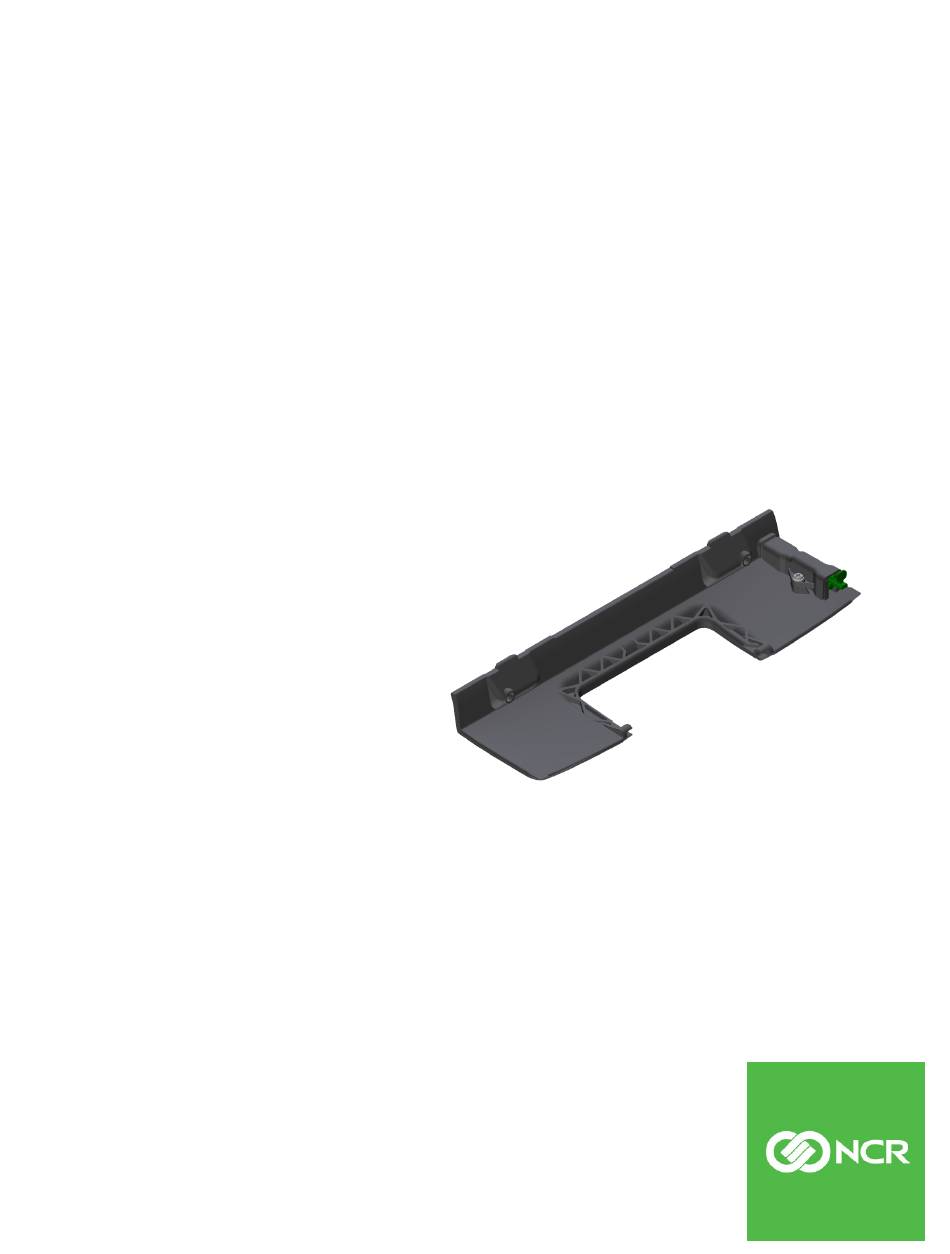

Cable cover with plunger

Kit Instructions

Cable Cover with Plunger

7702-K100

Issue A

Table of Contents

Need help?

Do you have a question about the 7702-K100 and is the answer not in the manual?

Page 1 Kit Instructions Cable Cover with Plunger 7702-K100 Issue A...
Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
Page 3 Cable Cover with Plunger This kit provides a Cable Cover with Plunger for any of the following: • NCR RealPOS XR5 POS (7701) • NCR RealPOS XR7 POS (7702) • NCR RealPOS XR7 Plus POS (7703) Kit Contents...
Page 4 Cable Cover with Plunger Installation Procedure 1. Lay the terminal face down on a flat surface. Caution: Always use a soft material (cloth, foam) to protect the display screen when placing the terminal face down. 2. Open and remove the existing Cable Cover. Use firm force to unsnap the Cable Cover from the two pegs on the Rear Cover.
Page 5 Cable Cover with Plunger 3. Install the Cable Cover with Plunger. Use firm force to snap the Cable Cover on the two pegs on the Rear Cover. 4. Close the Cable Cover with Plunger.
