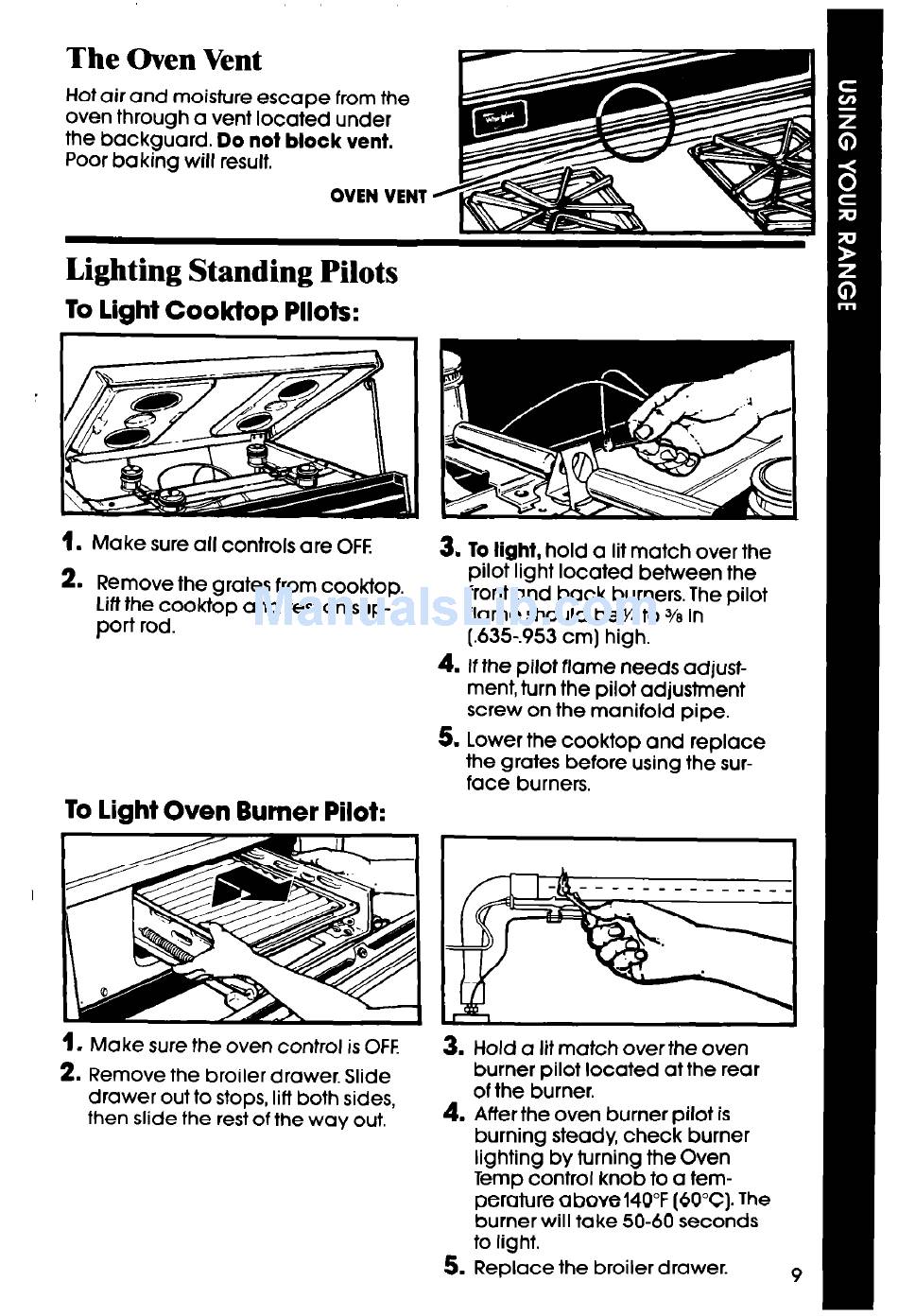

The Oven Vent
Hot air and moisture escape from the
oven through a vent located under
the backguard.
Do not block vent.
Poor baking will result.
OVEN VENT
Lighting Standing Pilots
To light Cooktop Pilots:
r
1.
Make sure all controls are OFF.
2. Remove the grates from cook-top.
Lift the cooktop and rest on sup-
port rod.
To light Oven Burner Pilot:
I
1. Make sure the oven control is OFF.
2. Remove the broiler drawer. Slide
drawer out to stops, lift both sides,
then slide the rest of the way out.
3. To light,
hold a lit match over the
pilot light located between the
front and back burners. The pilot
flame should be Y4 to 3/e in
(635.953 cm) high.
4. If the pilot flame needs adjust-
ment, turn the pilot adjustment
screw on the manifold pipe.
5. Lower the cooktop and replace
the grates before using the sur-
face burners.
3. Hold a lit match over the oven
burner pilot located at the rear
of the burner.
4. After the oven burner pilot is
burning steady, check burner
lighting by turning the Oven
Temp control knob to a tem-
perature above140"F (60°C). The
burner will take 50-60 seconds
to light.
5. Replace the broiler drawer.
9
