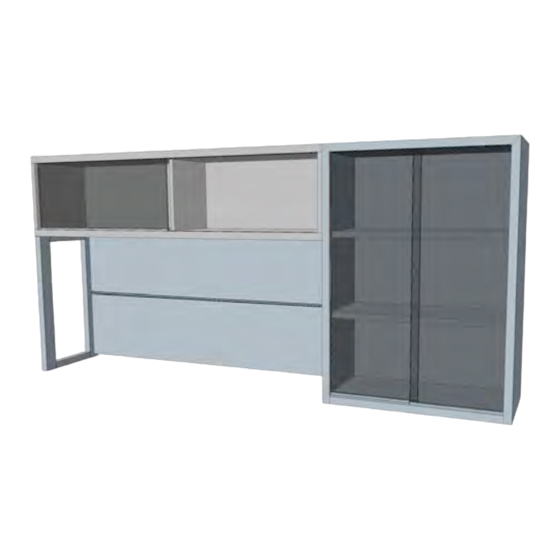

- Page 1 ∞≤√ a.k.a. casegoods instructions...
- Page 2 a.k.a. workwall installation IMPORTANT NOTES Failure to install product according to installation instruction will result in loss of warranty. Tools required for assembly of workwalls: Tape measure 48” to 60” Level Cordless drill w/ driver & drill bits Rubber mallet Wood leveling shims Laser level Suggested Fasteners for Workwall Structure connection to the wall:...
- Page 3 Step 3 The Workwall Structure must be installed starting at the highest point of the floor. Once the side to side location of the Workwall is determined, place the provided height spacer block in the corner at the predetermined highest point of the floor. Standard Workwall configuration –...
- Page 4 Step 7 Using a ¼” drill bit - drill through the pre-machined holes on the Workwall Structure into the drywall. This will locate the locations of the Snaptoggles®. Note: you will also need to drill new holes through the Workwall Structure along the line where you have previously located the wall studs so that you can connect the panel to the studs with a #8 or #10 screw.
- Page 5 Step 11 To install the next Workwall Structure section, simply lift into place and slip the yellow alignment pins into corresponding rail of the previous mounted section. Make sure that the seam between the two sections is tight without gaps. Repeat Steps 7-11 for the remaining Workwall Structure sections.
- Page 6 Step 15 It is very important that the Workwall sections are very straight from side to side. Any contour along the length of the Workwall rails will make the remaining installation more difficult. Step 16 With the Workwall Structure level, flat and mounted secure, it is time to install the Workwall Panels.
- Page 7 Step 18 Workwall mounted items attach to the Workwall by locking the Workwall rails into a mating extrusion on the mounted component. Simply lift the mounting item to the desired attachment rail and rotate upward to a 45° angle. The mating extrusion should slide into the Workwall rail.
- Page 8 Step 21 Slide the LED Light Rail into place, keeping the front edge close to the underside of the shelf or overhead. The front edge of the Light Rail Mount Brackets will catch the LED Light Rail. Rotate the back edge up toward the underside of the shelf or overhead and push upward until the Mounting Brackets click.
- Page 9 Step 24 After the top Trim Cap is installed, the side Trim piece can be attached next. It is recommended to wait until after all lighting and wiring is completed to do this. The low voltage wire from task lights is able to run down the sides of the Workwall and should be taped in place before attaching the Trim Caps.
-
Page 10: Important Notes
a.k.a. glass run-off desk IMPORTANT NOTES Failure to install product according to installation instruction will result in loss of warranty. Cartons contain all hardware required for assembly. Machine screws Glass Run-Off Desk Installation These illustrations show the assembly process for installing a glass run-off desk. Please note that the glass run-off desks can only be mounted to a workwall Workwall structure... - Page 11 a.k.a. overhead loop support and tower deck assembly IMPORTANT NOTES Failure to install product according to installation instruction will result in loss of warranty. Cartons contain all hardware required for assembly. Drill Fixture Mod-eez® Post Sex Bolts Deck Assembly Instructions Using a Loop/Panel Support and a Tower The illustrations here show the assembly process for connecting a loop or panel support end and a tower to a wood...
- Page 12 a.k.a. overhead loop support and tower deck assembly The illustration here show the machining necessary for connecting a wood deck panel to a worksurface tower unit. Measure from the top back edge of the tower to locate where the holes are to be drilled for the Mod-eez®...
- Page 13 a.k.a. overhead loop support and tower deck assembly These illustrations show the final assembly Step 2 process of the wood deck panel to a tower. Step 1 If another support end is specified in the place of the tower shown, just repeat the procedure from page 1.
- Page 14 a.k.a. overhead loop support and tower deck assembly These illustrations show the machining of an overhead cabinet for connection to a support tower. Front Back Bottom view of overhead cabinet shown here Back To assemble a loop support to the underside of the overhead you must first pre-drill and install the Mod-®eez posts.
- Page 15 a.k.a. overhead loop support and tower deck assembly This illustration shows the assembly of the deck structure to the loop or panel end support. Stand the bottom assembly with the wood deck panel and its end upright either on the floor or on the worksurface where you can get easy access to the connectors.
- Page 16 a.k.a. overhead loop support and tower deck assembly The illustrations shown on this page show the final process of the deck assembly Align the top and front of the overhead to the tower. Use clamps to keep the units together to ensure proper alignment. Use a 3/8”...
- Page 17 a.k.a. loop base upholstered modesty panel IMPORTANT NOTES Failure to install product according to installation instruction will result in loss of warranty. Cartons contain all hardware required for assembly. #8 Wood Screws Loop Run-off Base and Upholstered Modesty Panel Installation Illustrations are shown with both the wood loop run-off base as well as the optional upholstered modesty panel.
- Page 18 a.k.a. c-base wood veneer modesty panel IMPORTANT NOTES Failure to install product according to installation instruction will result in loss of warranty. Cartons contain all hardware required for assembly. #8 Wood Screws C-Base and Wood Veneer Modesty Panel Installation Illustrations are shown with both the c-base as well as the optional wood veneer modesty panel.
- Page 19 a.k.a. t-base upholstered modesty panel IMPORTANT NOTES Failure to install product according to installation instruction will result in loss of warranty. Cartons contain all hardware required for assembly. #8 Wood Screws T- Base and Upholstered Modesty Panel Installation Illustrations are shown with both the t- base as well as the optional upholstered modesty panel.
- Page 20 a.k.a. easel base upholstered modesty panel IMPORTANT NOTES Failure to install product according to installation instruction will result in loss of warranty. Cartons contain all hardware required for assembly. #8 Wood Screws Easel Base and Upholstered Modesty Panel Installation Illustrations are shown with both the easel run-off base as well as the optional upholstered modesty panel.
