BERNHARDT design solem Base Assembly

IMPORTANT NOTE

Failure to install product according to installation instructions will result in loss of warranty.

Parts List

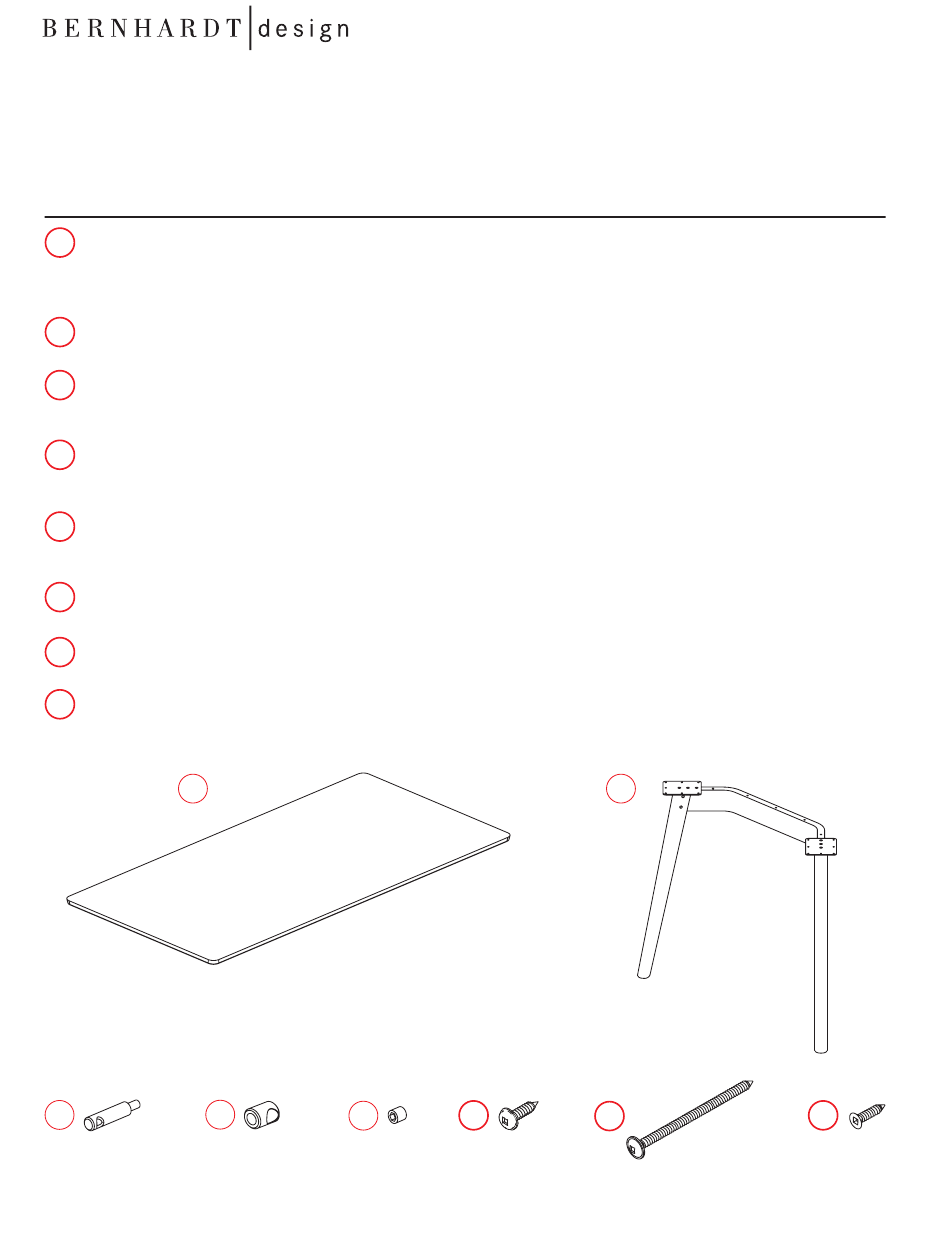

Worksurface (1x)

Each Solem Table has a corresponding worksurface and base assembly.

Worksurfaces are shipped with the cross rails attached for ease of installation.

Bent End Leg Assembly (2x)

Stud Connector (8x)

Each Bent End Assembly accepts (4x) Stud Connectors into pre-installed threaded inserts.

Stud Housing (8x)

Stud Housings insert into pre-machined holes in the cross rails to capture the Stud Connectors during assembly of the complete table.

Grub Screw (8x)

Grub Screws thread into each Stud Housing to secure the Stud Connectors to the Stud Housing.

#10 x 3/4" Washer Head Screws (12x)

#8 x 3" Washer Head Screws (10x)

#8 x 3/4" Flat Head Screws (28x)

October 2016

solem base assembly

Table of Contents

Do you have a question about the solem and is the answer not in the manual?

Page 1: Parts List
Failure to install product according to installation instructions will result in loss of warranty. Parts List Worksurface (1x) Each Solem Table has a corresponding worksurface and base assembly. Worksurfaces are shipped with the cross rails attached for ease of installation. Bent End Leg Assembly (2x) Stud Connector (8x) Each Bent End Assembly accepts (4x) Stud Connectors into pre-installed threaded inserts.
Page 2 Assembling Base To protect tabletop, place top upside down on a soft, non-abrasive surface. After unpacking the included hardware, install all (8) Stud Connectors into the pre-installed threaded inserts in the Bent End Leg Assemblies. Press the Stud Housings into the holes in the face of the cross rails as shown.
Page 3 Assembling Base Attach Corner Brackets to Bent End using provided Reinforce the attachment of the Bent End using the #10 x 3/4” Washer Head Screws. Repeat in all corners. #8 x 3” Washer Head Screws inserted into the pre-drilled Snug fit, do not over-tighten.
