BERNHARDT design Code Modular Unit Installation Instructions

Hide thumbs
1
2

Advertisement

Table of Contents

∞≤√

IMPORTANT NOTES

Failure to install product according to installation instructions will result in loss of warranty. Actual configuration may vary.
When moving Code modular units, lift base and move into position. Never lift unit using wall or drag unit across floor.
Yellow carton contains all hardware required for assembly:

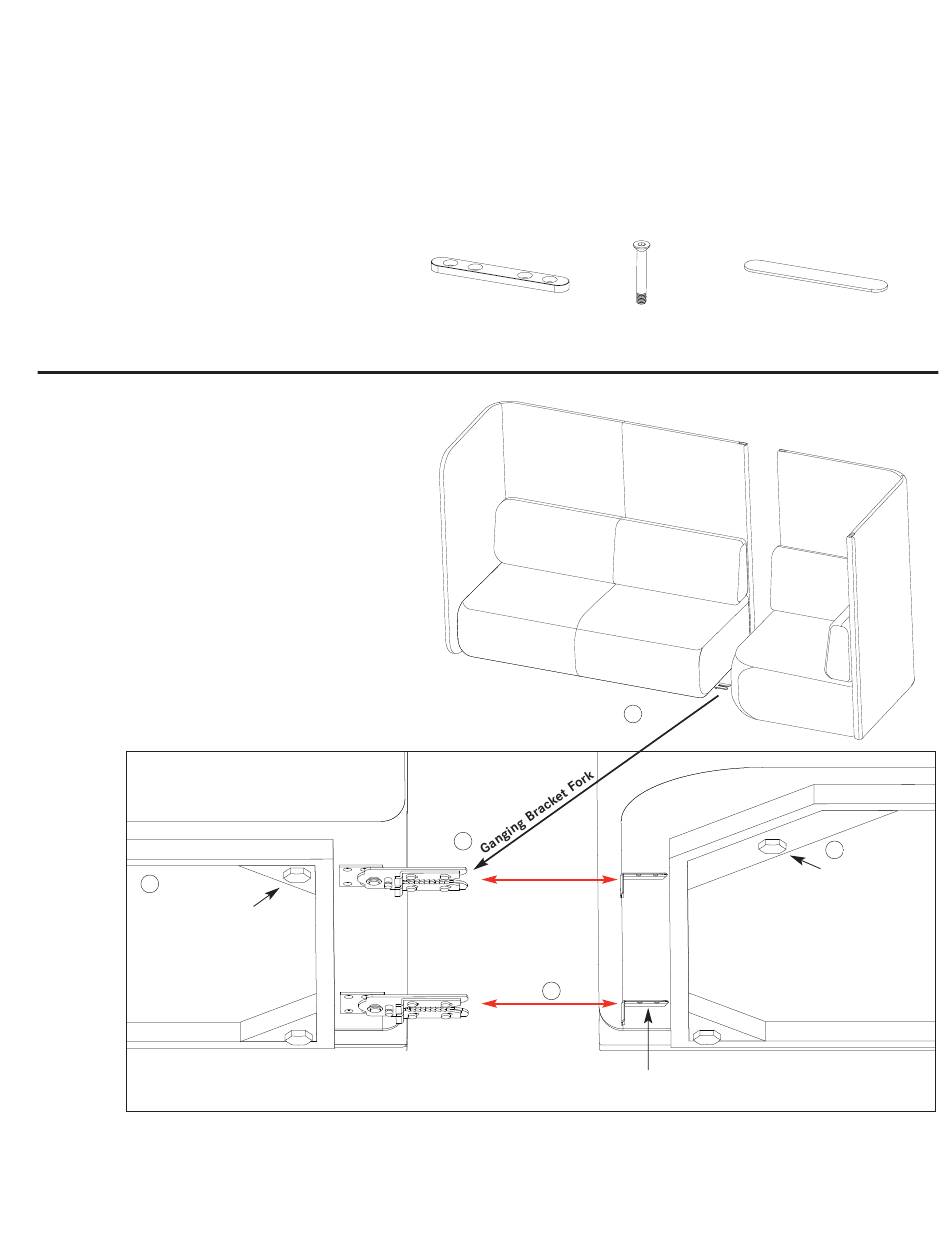

Leveling / Ganging Modular Units

Unpack Code modules and move into the desired location.
(See DIAGRAM 1)
Level the seat front-to-back and side-to-side by adjusting
the height of the glides located on the underside of the
plinth bases, under the seating block. (See DIAGRAM 2)
Turn (rotate) the ganging bracket forks so that they are
perpendicular to the seat. (See DIAGRAM 3)
Align the units so the ganging bracket forks will fit around
the ganging bracket plates.
With a person on each side of the modular grouping, push
the units together. (See DIAGRAM 4)
See the following instructions for securing walls with
mending plate.
2
Adjustable Glide
Visit Bernhardtdesign.com for additional information.
mending plate
4 machine screws
adjustable glides, ganging bracket fork and ganging bracket plate (pre-installed)
3
4
Ganging Bracket Plate
View of Underside
c o d e m o d u l a r u n i t s
top cover plate
1
2
Adjustable Glide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Code Modular Unit and is the answer not in the manual?

Questions and answers

Related Manuals for BERNHARDT design Code Modular Unit

Summary of Contents for BERNHARDT design Code Modular Unit

  • Page 1 ∞≤√ c o d e m o d u l a r u n i t s IMPORTANT NOTES Failure to install product according to installation instructions will result in loss of warranty. Actual configuration may vary. When moving Code modular units, lift base and move into position. Never lift unit using wall or drag unit across floor. Yellow carton contains all hardware required for assembly: mending plate 4 machine screws...
  • Page 2 ∞≤√ c o d e m o d u l a r u n i t s Mending Plate Installation After leveling and ganging modular units, align the walls. Place the mending plate in the recessed area on top of the upholstered walls so that the holes in the mending plate aligns with the holes in the top of each wall.
