DESCRIPTION

Super high gain distortion
Three band EQ with sweepable mid frequencies
Switchable Noise Gate for syncopated metal riffage
Internal GATE TRIGGER control sets the Noise Gate's sensitivity
SCOOP button boosts highs and lows

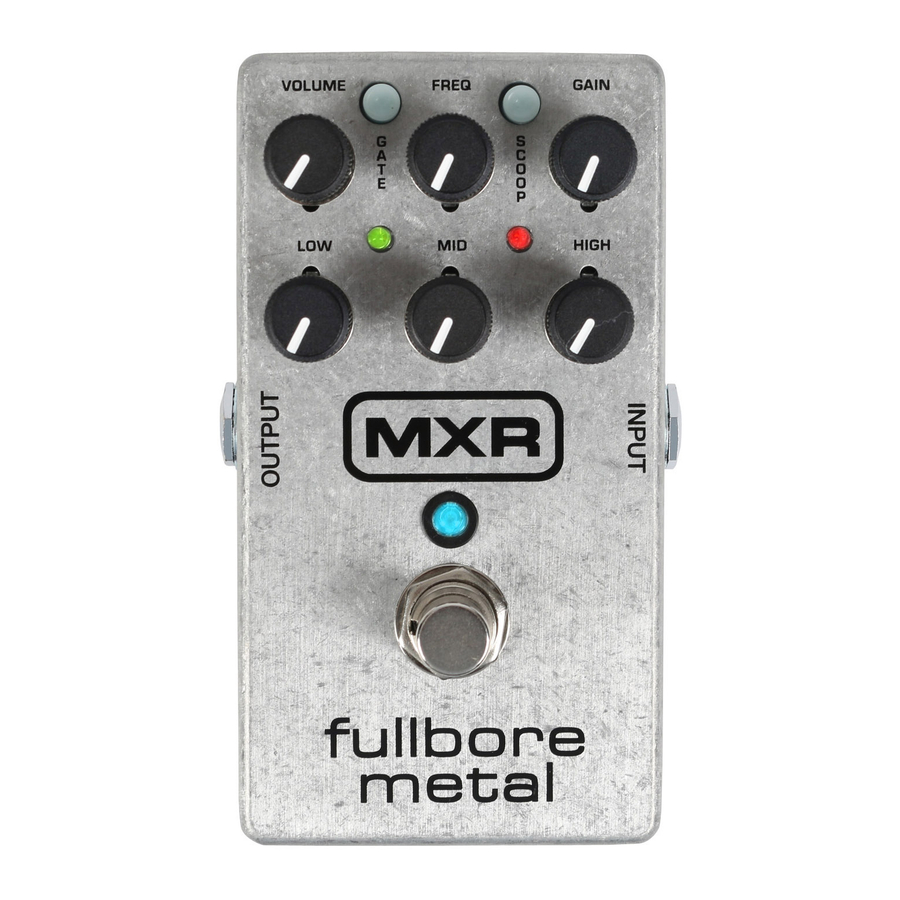

CONTROLS

VOLUME knob controls overall effect volume
FREQ knob selects the midrange frequency (200Hz to 5KHz) that is adjusted by the MID control
GAIN knob controls the overall amount of distortion
GATE button activates the noise gate
SCOOP button boosts highs and lows (EQ still functional)
LOW knob controls the amount of low end
MID knob controls the amount of midrange selected by the FREQ control
HIGH knob controls the amount of high end
FOOTSWITCH toggles effect on/bypass (blue LED indicates on)

DIRECTIONS

Run a cable from your guitar to the Fullbore Metal's INPUT jack and run another cable from the Fullbore Metal's OUTPUT jack to your amplifier.
NOTE: Start with Volume, Gain, and Bass at their lowest setting (fully counterclockwise). This pedal is very dynamic and adds tons of gain—be warned!
Turn the effect on by depressing the footswitch.
Adjust the Gain, Volume, Low, Mid, Freq and High controls until the desired output and tone is acquired.

NOISE GATE TRIGGER CONTROL

With a small flathead screwdriver, rotate the Arrow clockwise to increase the Noise Gate's sensitivity, causing the gate to cut off faster. Rotate the Arrow counter-clockwise if notes are being cut off too early.

SAMPLE SETTINGS

SPECIFICATIONS

Input Impedance	>450 kΩ
Output Impedance	<10 kΩ
Noise Floor*
Gate OFF	-70 dBV
Gate ON	-85 dBV
Frequency Response
Gate OPEN	0 dB, 20 Hz to 20 kHz
Gate CLOSED	-20 dB at 500 Hz -25 dB at 20 kHz
Tone Controls
Low	±9 dB at 100 Hz
Mid	±16 dB at 200 Hz to 5 kHz
High	±12 dB shelf at 1.5 kHz
Bypass	True Hardwire
Current Draw	18 mA
Power Requirement	9 volts DC

*All controls at mid postion, A-weighted.

POWER

The MXR Fullbore Metal can be powered by one 9-volt battery (accessed by removing the bottom plate of the pedal), a 9-volt AC adapter such as the Dunlop ECB003/ECB003E, or a DC Brick^™ power supply.
