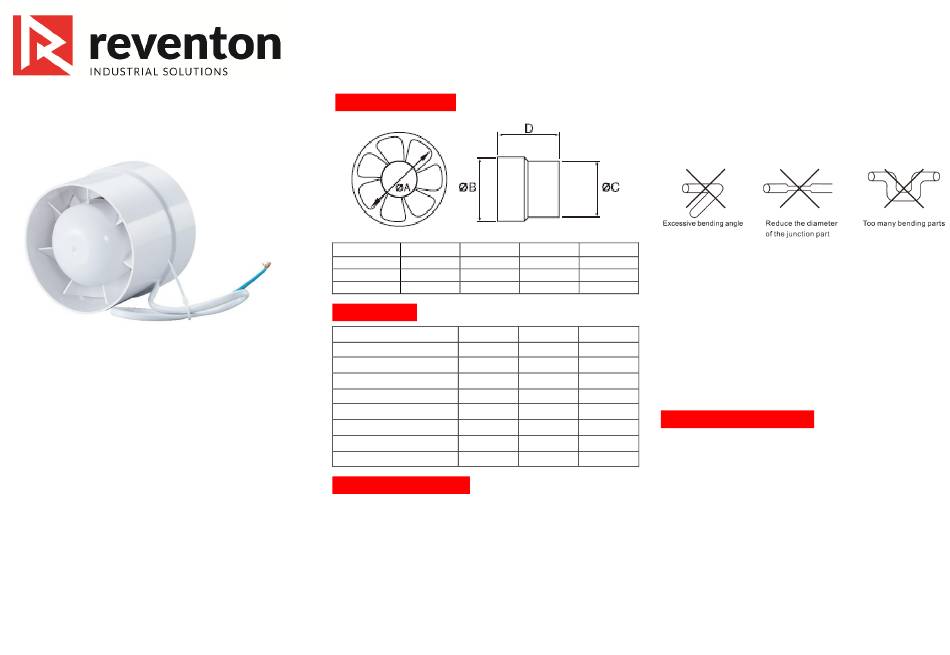

REVENTON REGO Series User Manual

Duct fan
REGO Series
User Manual
Introduction
Thank you for choosing our product. Reading of this manual
is required for proper use of the device and absolute
observance to its guidelines is fundamental condition
of security.
All users of the device should have free access
to the manual and in case of resale, the instruction must
be attached to the product.
Package contents
- duct fan REGO
- user manual
Transport and storage
The fan should be transported and stored in the original
packaging in a dry place protected from contamination,
until it is installed. Moreover, the fan should be protected
from the shocks.
Application
Axial fans from the REGO series are designed for wall
mounting. They are used for ventilation of small spaces
such as a bathroom or kitchen.

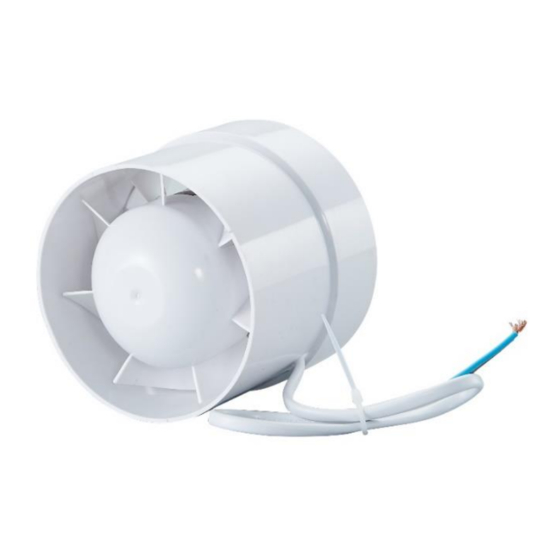

The device in white color version.
Dimensions (in mm)
.
MODEL ØA ØB
REGO 100 98 104
REGO 120 123 128
REGO 150 148 154
Technical data
MODEL REGO 100
Maximum aiflow [m 3 /h] 130
Maximum compression [Pa] 36
Voltage [V] / Frequency [Hz] 230/50 - 60
Rated current [A] 0,072
Engine speed [rpm] 2400
Engine power [W] 12
IP protection degree [-] X2
Noise [dB(A)] 34
Installation instructions
In order to accomplish the installation of the device
successfully and enable the safe usage of the fan
in the future, it is essential to follow the instructions in this
manual.
Before installing and connecting the fan, check that it has
not been damaged during transport or storage (breakage,
distortion).
Check whether the technical data on the nameplate
corresponds to the electrical installation parameters.
The device should be mounted on a flat surface.
If irregularities are not found, you can proceed
with the installation as follows:
- connect the power supply according to the wiring diagram
- assemble ventilation ducts, tighten them with clamps
- the ventilation ducts should be carried out in accordance
with the duct manufacturer's instructions and applicable
local regulations
- it is not allowed to make ducts in the way shown below:
ØC D
- when starting the extraction fan, check the following
100 88
problems:
120 88
150 108
a. the impeller is not working properly
b. strong vibrations or strange noise
REGO 120 REGO 150
- if any of the above flaws is not found, turn off the fan and
240 320
mount the junction box
45 60
The electrical connection must be in accordance
230/50 - 60 230/50 - 60
with the wiring diagram in the terminal box.
0,11 0,138
2200 2000
Warnings and precautions
16 18
During the operation of the device, the following
X2 X2
precautions must be observed:
34 35
- before performing any work, the device must
be disconnected from the power supply
- the fan is intended only for ventilation of rooms with small
and medium cubature
- installation height of the exhaust fan min. 2.3 m
- the minimum distance between the fan and the ceiling
is 5 cm
- if you do not use it for a long time, it is recommended
to disconnect the device from the power supply
- a constant supply of fresh air to the room must be ensured
