REVENTON CODE Series User Manual

Domestic axial fan with throttle
CODE Series
User Manual

Introduction

Thank you for choosing our product. Reading of this manual
is required for proper use of the device and absolute
observance to its guidelines is fundamental condition
of security.
All users of the device should have free access
to the manual and in case of resale, the instruction must
be attached to the product.

Package contents

- domestic axial fan CODE
- user manual

Transport and storage

The fan should be transported and stored in the original
packaging in a dry place protected from contamination,
until it is installed. Moreover, the fan should be protected
from the shocks.

Application

Axial fans from the CODE series are designed for wall
mounting. They are used for ventilation of small spaces
such as a bathroom or kitchen.
The device in white color version.

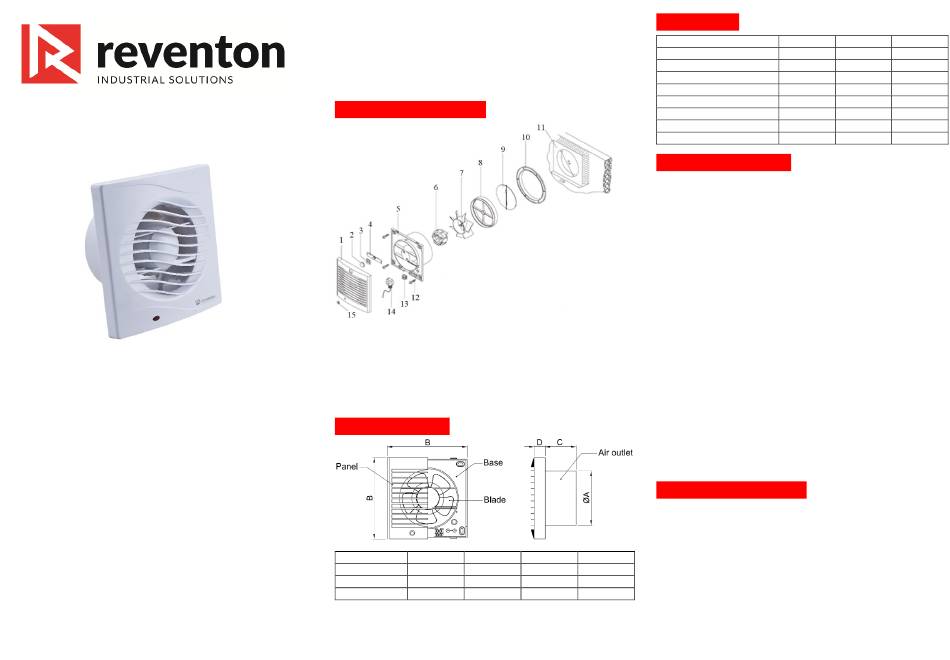

Construction of the device

1 – Panel 2 – Sensor Cover
4 – Sensor/Timer 5 – Base
7 – Rotor 8 – Throttle frame
10 – Fastening ring 11 – Frame
13 – Wire terminal 14 – Switch

Dimensions (in mm)

MODEL ØA B
CODE 100 98 157
CODE 120 118 157
CODE 150 148 200

Technical data

MODEL
Maximum aiflow [m
Maximum compression [Pa]
Voltage [V]/Frequency [Hz]
Rated current [A]
Engine speed [rpm]
Engine power [W]
IP protection degree [-]
Noize [dB(A)]

Installation instructions

In order to accomplish the installation of the device
successfully and enable the safe usage of the fan
in the future, it is essential to follow the instructions in this
manual.
Before installing and connecting the fan, check that it has
not been damaged during transport or storage (breakage,
distortion).
Check whether the technical data on the nameplate
corresponds to the electrical installation parameters.
The device should be mounted on a flat surface.
3 – Sealing
If irregularities are not found, you can proceed
with the installation as follows:
6 – Motor
9 – Throttle - prepare appropriate electrical wires
- mark the location of mounting holes
12 – Screws
- drill the holes and put expansion bolts in them
15 - Diode
- place the fan in the right place and tighten screw it
- connect the device to electrical grid
The electrical connection must be in accordance
with the wiring diagram in the terminal box.

Warnings and precautions

During the operation of the device, the following
precautions must be observed:
- before performing any work, the device must
be disconnected from the power supply
C D
60 21
- the fan is intended only for ventilation of rooms with small
65 21
and medium cubature
76 21
- installation height of the exhaust fan min. 2.3 m
- do not connect the fan to the ceiling
- avoid backflow of air through the chimney
CODE 100 CODE 120 CODE 150
3 /h] 130 240 320
36 45 60
230/50-60 230/50-60 230/50-60
0,072 0,11 0,138
2400 2200 2000
12 16 18
X2 X2 X2
34 34 35
