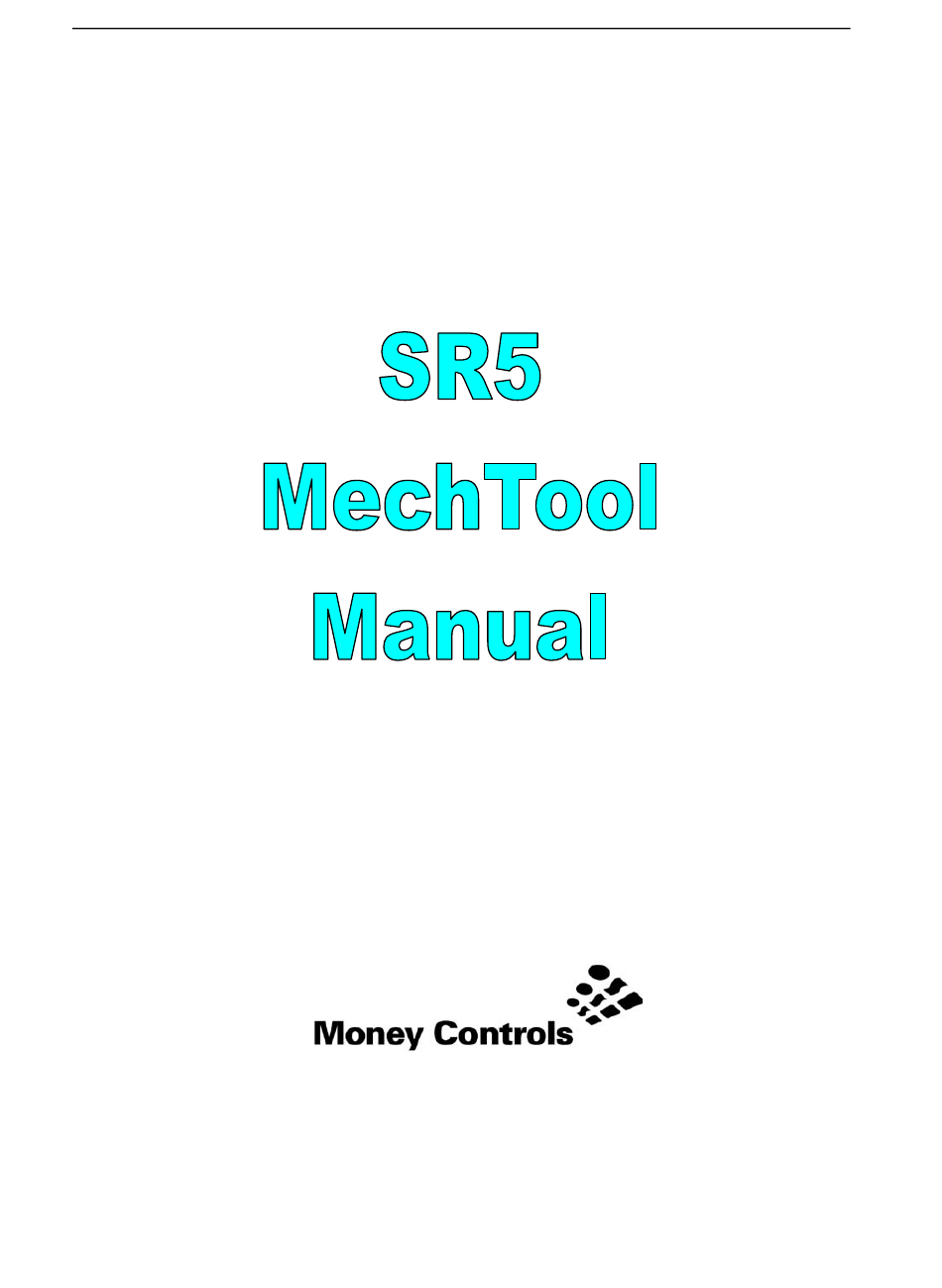

SR5 MechTool
Manual
TSP012.doc
Issue 2.1 – June 2004
This document is the copyright of Money Controls Ltd and may not be reproduced in part or in total by any means,
electronic or otherwise, without the written permission of Money Controls Ltd. Money Controls Ltd does not accept
liability for any errors or omissions contained within this document. Money Controls Ltd shall not incur any
penalties arising out of the adherence to, interpretation of, or reliance on, this standard. Money Controls Ltd will
provide full support for this product when used as described within this document. Use in applications not covered
or outside the scope of this document may not be supported. Money Controls Ltd. reserves the right to amend,
improve or change the product referred to within this document or the document itself at any time.
©Money Controls 2004. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MechTool SR5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Money Controls MechTool SR5

  • Page 1 Issue 2.1 – June 2004 This document is the copyright of Money Controls Ltd and may not be reproduced in part or in total by any means, electronic or otherwise, without the written permission of Money Controls Ltd. Money Controls Ltd does not accept liability for any errors or omissions contained within this document.
  • Page 2: Table Of Contents

    Flow Chart 5: Test Accept Gate..........................20 Flow Chart 6: Flag Change Mode.......................... 21 Flow Chart 7: Reset Individual Coin Tweaks ......................22 Flow Chart 8: Erase ALL Windows ........................23 ©Money Controls 2004. All rights reserved. Page 2 of 24...
  • Page 3: Diary Of Changes

    March 2002 Applied TMWP v3.0 Issue 1.2 ..……………………………………………………………………...…….…….6th Sept 2002 Modification to disclaimer. Issue 2.0……………………………………………………………………………25 September 2002 Note added to section 10 Window Tuning Issue 2.1..……………………………………………………………………...…….….30 June 2004 Change footer ©Money Controls 2004. All rights reserved. Page 3 of 24...
  • Page 4: Introduction

    While this is a powerful and useful feature, if used without caution, changes can be made which may affect the operation of the SR5. USE WITH CARE. ©Money Controls 2004. All rights reserved. Page 4 of 24...
  • Page 5: Mechtool Controls

    Manual TSP012.doc Issue 2.1 – June 2004 MechTool Controls Figure 1: SR5 Connector Side Table 1: SR5 MechTool Controls. LED Indicator Rotary Switch Program button Diagnostic connectors Bank Select switches ©Money Controls 2004. All rights reserved. Page 5 of 24...
  • Page 6: Diagnostics

    LED will turn green. Press the program button again until the LED flashes yellow. To exit the diagnostic tests, remove the links and press the program button until the LED turns Green. ©Money Controls 2004. All rights reserved. Page 6 of 24...
  • Page 7: Solenoid And Inductive Sensor Flash Test

    Inductive sensor 4 status ⇒ Accept 5 Inductive sensor 5 status ⇒ Accept 6 To exit the diagnostic tests, remove the links and press the program button until the LED turns Green. ©Money Controls 2004. All rights reserved. Page 7 of 24...
  • Page 8: Opto Test

    Note: These tests are only useful if the relevant hardware is fitted, i.e. DCE chute and sorter. Exit Diagnostics To exit the diagnostic tests, remove the links and press the program button until the LED turns Green. ©Money Controls 2004. All rights reserved. Page 8 of 24...
  • Page 9: Token Selection

    Turn the rotary switch to the desired token position, 1 to C. Press and hold the program button, the LED will change to RED. Release the program button. The LED will change back to GREEN. ©Money Controls 2004. All rights reserved. Page 9 of 24...
  • Page 10: Mode Control - Position D

    CCL Rundown Alarms ON Note: If the LED stays Green then mode control “D” is not available. NEVER leave the validator with the rotary switch in positions D, E or F. ©Money Controls 2004. All rights reserved. Page 10 of 24...
  • Page 11: Routing Control - Position E

    EEPROM Mode Not Used Note: If the LED stays Green then Routing Control “E” is not available. NEVER leave the validator with the rotary switch in positions D, E or F. ©Money Controls 2004. All rights reserved. Page 11 of 24...
  • Page 12: Teach And Run Token 12 - Position F

    NEVER leave the validator with the rotary switch in positions D, E or F. Teach and Run™ Coins The SR5 allows the teaching of all 16 coin positions. For details please see Flow Chart 1: Teach Coin Mode. ©Money Controls 2004. All rights reserved. Page 12 of 24...
  • Page 13: Mechtool Tm Mode

    2 seconds, the LED changes colour from flashing Yellow to flashing Green-Yellow. Releasing the program button changes the LED colour to Green. If this is not done then the SR5 will time-out and assume normal operation. ©Money Controls 2004. All rights reserved. Page 13 of 24...
  • Page 14: Flow Chart 1: Teach Coin Mode

    Green LED = Yellow-Green. If an error occurs during teach then the LED colour changes to red (instead of flashing green) and remains red until the program button is pressed. ©Money Controls 2004. All rights reserved. Page 14 of 24...
  • Page 15: Flow Chart 2: Window Tuning Mode

    Press and hold program button for a Yellow-Green minimum of 2 seconds. Release the program button when the Green LED = Yellow-Green. This programs the window tweaks into EEPROM. See Note in section 10 Window Tuning ©Money Controls 2004. All rights reserved. Page 15 of 24...
  • Page 16: Window Tuning

    Table 2: Window Adjustment Table The above can be set or cleared using MechTool to change the flag settings, see Flow Chart 6: Flag Change Mode, Flags 6, 7, 8 and 9. ©Money Controls 2004. All rights reserved. Page 16 of 24...
  • Page 17: Table 3: Rotary Switch To Window Tuning Values

    Window widening is used to increase true coin acceptance. Incorrect use could see the acceptance of fraud coins. NOTE: Money Controls program the SR5 to optimum coin acceptance at the factory. Should true coin acceptance start to decline, this would indicate a fault and we DO NOT recommend window widening as a ‘fix’.
  • Page 18: Flow Chart 3: Test Credit Outputs

    Set RS to position 0 Flashing Yellow MechTool Mode - Exit Press and hold program button for a Yellow-Green minimum of 2 seconds. Release the program button when the Green LED = Yellow-Green. ©Money Controls 2004. All rights reserved. Page 18 of 24...
  • Page 19: Flow Chart 4: Test Alarm Outputs

    Mode - Exit Press and hold program button for a Yellow-Green minimum of 2 seconds. Release the program button when the Green LED = Yellow-Green. Alarm code = 110111 (A6 to A1). ©Money Controls 2004. All rights reserved. Page 19 of 24...
  • Page 20: Flow Chart 5: Test Accept Gate

    Set RS to position 0 Flashing Yellow MechTool Mode - Exit Press and hold program button for a Yellow-Green minimum of 2 seconds. Release the program button when the Green LED = Yellow-Green. ©Money Controls 2004. All rights reserved. Page 20 of 24...
  • Page 21: Table 4: Eeprom Flags V Rotary Switch Position

    Flag function. position. position. Teach off. Diagnostic on. Teach on. Individual window tweaks disabled. Alarm off. Individual window tweaks enabled. Alarm on. Secure tuning disabled. Diagnostic off. Secure tuning enabled. ©Money Controls 2004. All rights reserved. Page 21 of 24...
  • Page 22: Flow Chart 7: Reset Individual Coin Tweaks

    Press and hold program button Yellow-Green for a minimum of 2 seconds. Release the program button Green when the LED = Yellow-Green. This clears the tweaks in EEPROM for ALL coin windows. ©Money Controls 2004. All rights reserved. Page 22 of 24...
  • Page 23: Flow Chart 8: Erase All Windows

    As a safeguard with this function, the program button must be pushed twice within 1 second to ensure erasure of the coin windows. Failure to do so will leave the coin windows intact. ©Money Controls 2004. All rights reserved. Page 23 of 24...
  • Page 24 This manual is intended only to assist the reader in the use of this product and therefore Money Controls shall not be liable for any loss or damage whatsoever arising form the use of any information or particulars in, or any incorrect use of the product.
