1
2

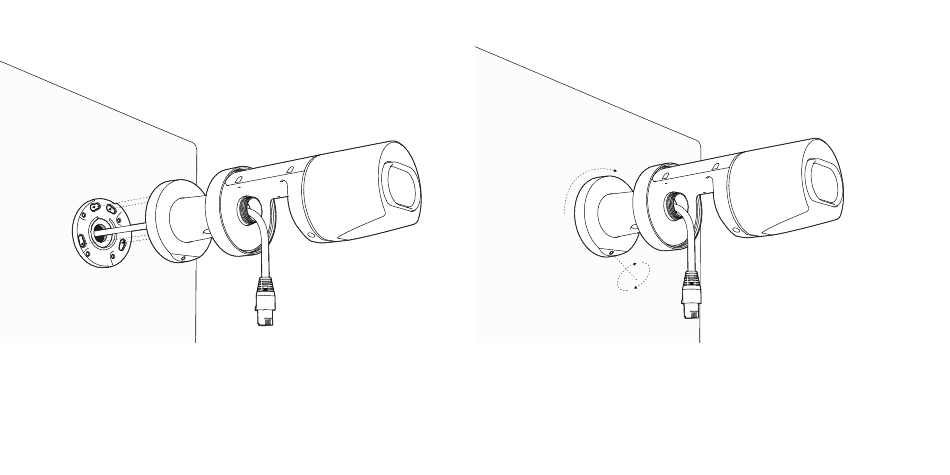

Align mounting features on the Mount Plate with the
Engage the mounting pegs and twist clockwise until you feel the camera lock
mounting pegs on the backside of CB51 / CB61 Base Plate.
securely in place.
Once secured, tighten the T8 security screw using the provided hand tool.
18 - mount
mount - 19
