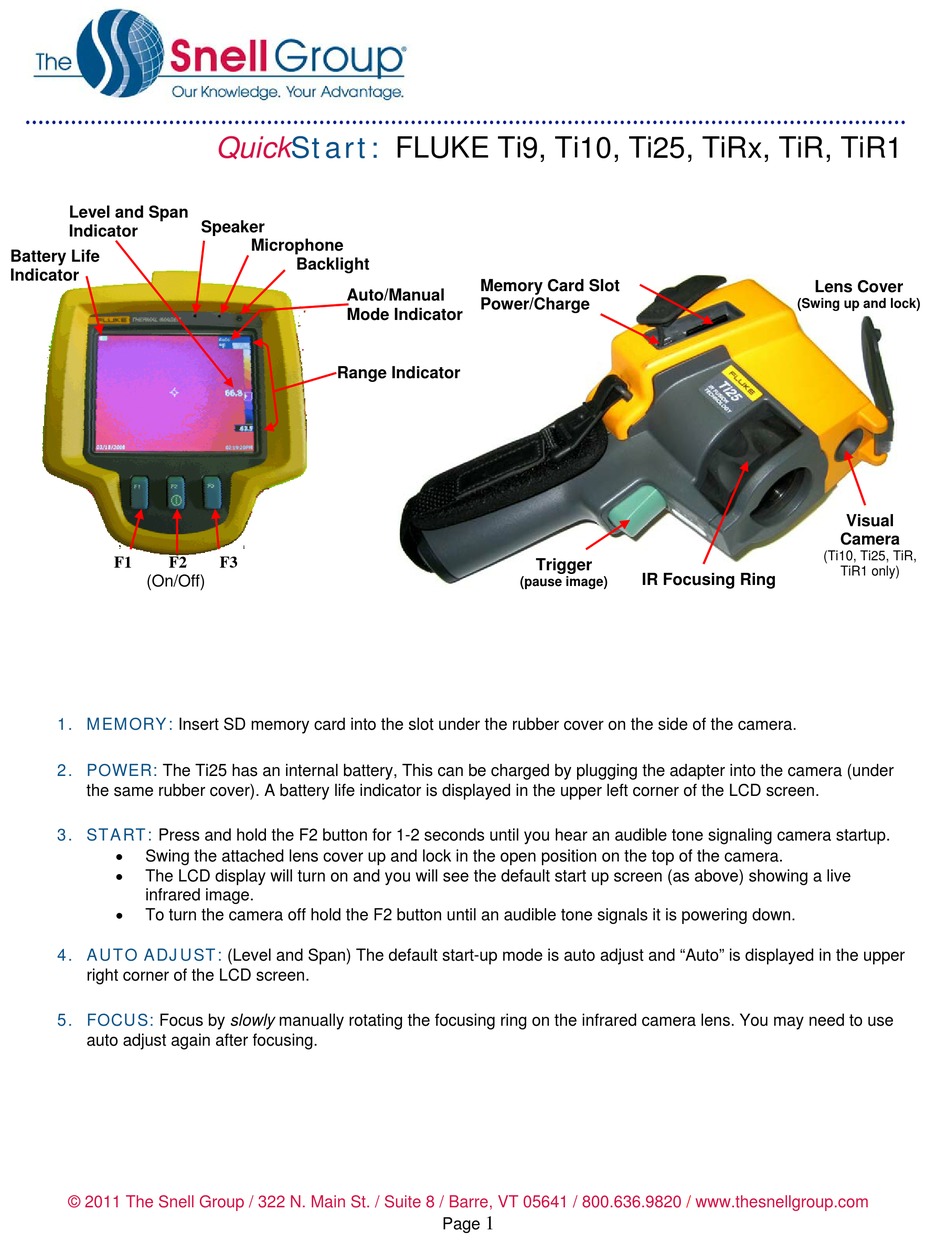

Fluke Ti9 Quick Start

Level and Span
Indicator
Battery Life
Indicator
F1 F2
(On/Off)
1. MEMORY:
Insert SD memory card into the slot under the rubber cover on the side of the camera.
2. POWER:
The Ti25 has an internal battery, This can be charged by plugging the adapter into the camera (under
the same rubber cover). A battery life indicator is displayed in the upper left corner of the LCD screen.
3. START:
Press and hold the F2 button for 1-2 seconds until you hear an audible tone signaling camera startup.

Swing the attached lens cover up and lock in the open position on the top of the camera.

The LCD display will turn on and you will see the default start up screen (as above) showing a live
infrared image.

To turn the camera off hold the F2 button until an audible tone signals it is powering down.
4. AUTO ADJUST:
right corner of the LCD screen.
5. FOCUS:
Focus by slowly manually rotating the focusing ring on the infrared camera lens. You may need to use
auto adjust again after focusing.
© 2011 The Snell Group / 322 N. Main St. / Suite 8 / Barre, VT 05641 / 800.636.9820
QuickStart:
Speaker
Microphone
Backlight
Auto/Manual
Mode Indicator
Range Indicator
F3
(Level and Span) The default start-up mode is auto adjust and "Auto" is displayed in the upper
FLUKE Ti9, Ti10, Ti25, TiRx, TiR, TiR1
Memory Card Slot
Power/Charge
Trigger
(pause image)
1
Page
Lens Cover
(Swing up and lock)
IR Focusing Ring
/ www.thesnellgroup.com
Visual
Camera
(Ti10, Ti25, TiR,
TiR1 only)
