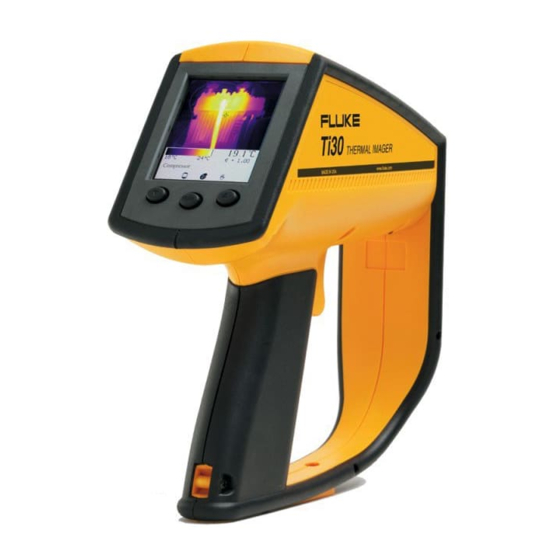

Fluke Ti30 Quick Start

DOWN
MODE
UP
1.

MEMORY:

The Ti30 has internal memory capable of storing 100 infrared images
2.

POWER:

Insert a fully charged battery into the battery bay on the bottom of the pistol grip
handle.
3.

START:

NOTE: Until you get familiar with the camera's features, place the three slider switches
under the Control bay cover in the positions shown in image above. This will be a good starting
set-up to learn the camera.
 Place the Backlight slider in the forward position (Backlight= bright).
 Place the Palette slider in the rear position (Palette= Gray palette).
 Place the Auto/Manual slider in the forward position (Auto adjust).
Now start the camera by simply sliding the intergraded Lens cover down (Fig 1).This will the initiate the start up
sequence then show the Ti30 information screen.

Press the Mode button (center button) to obtain a live infrared image.
4.

FOCUS:

Focus is achieved by rotating the Manual Focus Wheel under the camera body in front of the trigger.
5.

AUTO ADJUST:

Auto/Manual slider in the forward position.
© 2011 The Snell Group / 322 N. Main St. / Suite 8 / Barre, VT 05641 / 800.636.9820
Battery Bay
To let the camera automatically determine the Level and Gain (Span) settings place the
Top Control Bay Cover
Lens and Cover
Laser On/Off
LCD Backlight
Palette
Focus Wheel
Trigger
Level Thumbwheel
(Brightness)
Fluke Ti30
QuickStart:
Gain Thumbwheel
(Span/Contrast)
/ www.thesnellgroup.com
Fluke Ti30 Page 1
Units C/F
Auto/Manual
Fig 1
