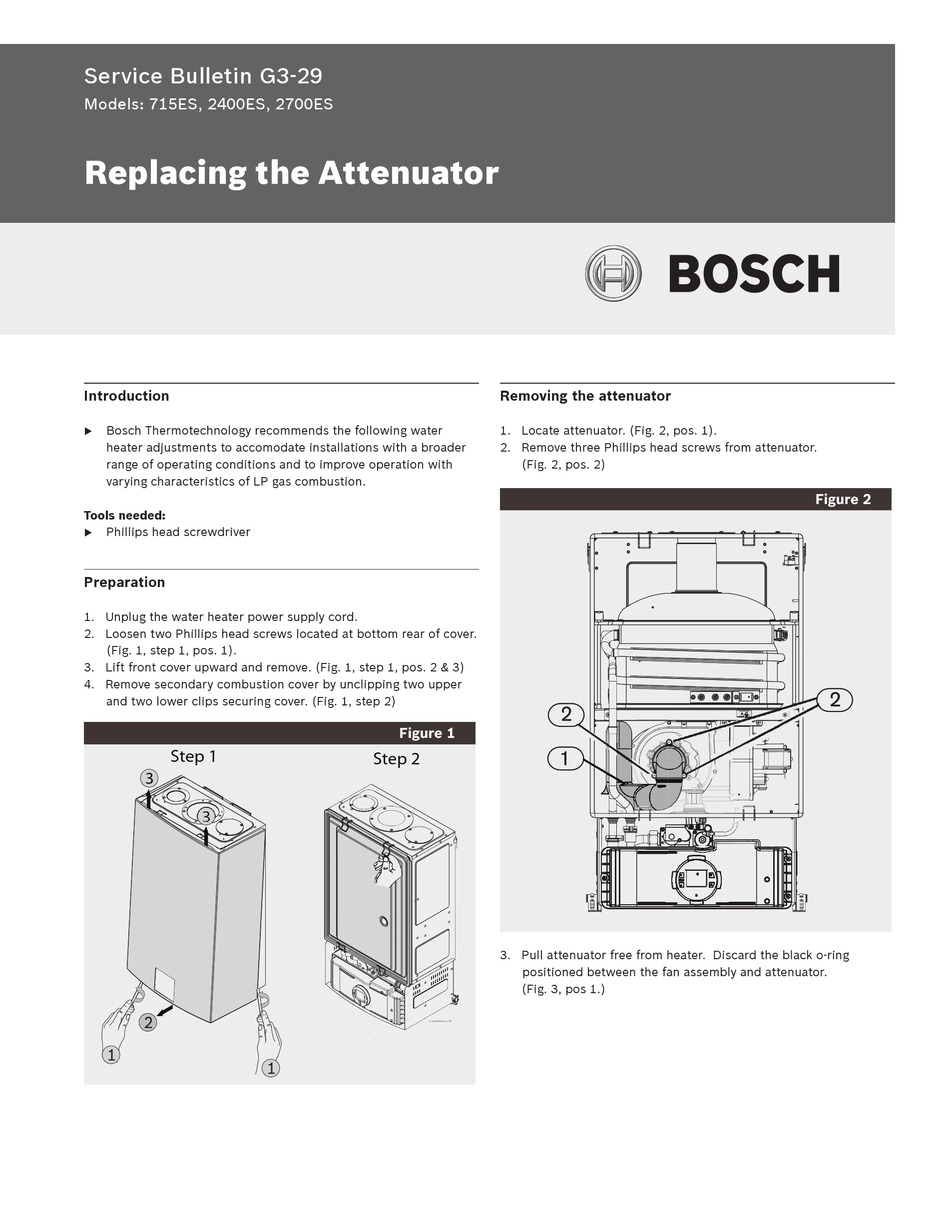

Service Bulletin G3-29
Models: 715ES, 2400ES, 2700ES
Replacing the Attenuator
Introduction
Bosch Thermotechnology recommends the following water
heater adjustments to accomodate installations with a broader
range of operating conditions and to improve operation with
varying characteristics of LP gas combustion.
Tools needed:
Phillips head screwdriver
Preparation
1. Unplug the water heater power supply cord.
2. Loosen two Phillips head screws located at bottom rear of cover.
(Fig. 1, step 1, pos. 1).
3. Lift front cover upward and remove. (Fig. 1, step 1, pos. 2 & 3)
4. Remove secondary combustion cover by unclipping two upper
and two lower clips securing cover. (Fig. 1, step 2)
Step 1
Step 1
3
3
Removing the attenuator
1. Locate attenuator. (Fig. 2, pos. 1).
2. Remove three Phillips head screws from attenuator.
(Fig. 2, pos. 2)
Figure 1
Step 2
Step 2
3. Pull attenuator free from heater. Discard the black o-ring
positioned between the fan assembly and attenuator.
(Fig. 3, pos 1.)
Figure 2
