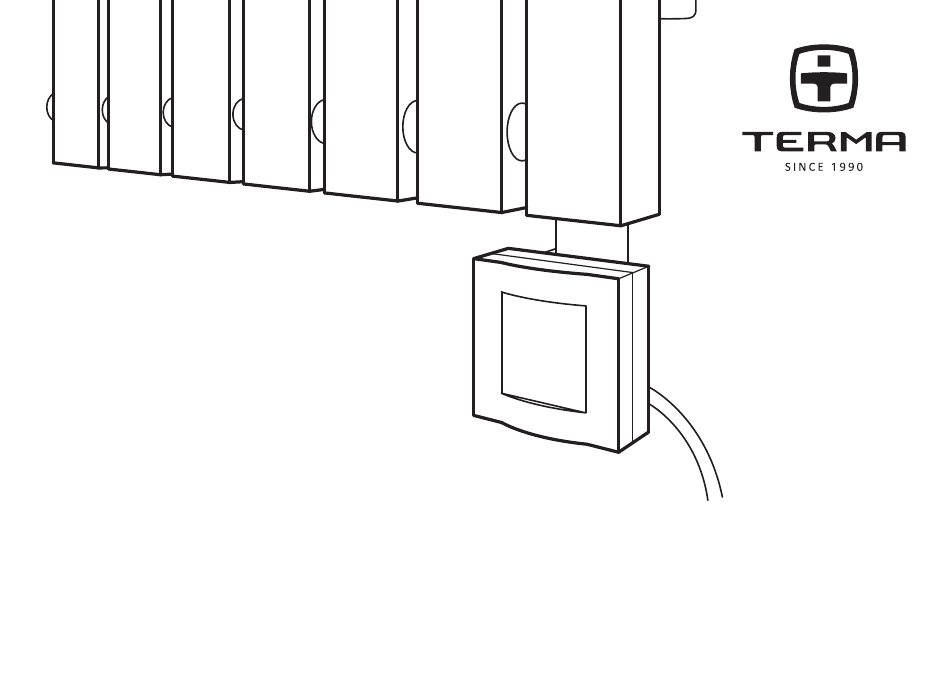

- Page 1 User Manual Ecostrad VeeSmart electric radiator...
- Page 2 Our products have been designed and manufactured in such a way to ensure that all quality, functionality and aesthetic requirements are met. We would like to congratulate you on the purchase of this great product and wish you a pleasant experience with it. Ecostrad VeeSmart...
-
Page 3: Technical Data
Type of electrical connection: Y; 230V / 50Hz power supply; Protection class of the device: Class I; Radiator connection thread: G 1/2"; Casing protection class [IP]: IPx5: Ecostrad VeeSmart... - Page 4 5. Installation to the wall - via the attached mounting brackets. ATTENTION: The design of the radiator and the physical proper- ties of the heating medium cause an uneven temperature distribu- tion inside the radiator - see chapter "THE NATURAL OPERATION OF THE RADIATOR". Ecostrad VeeSmart...
- Page 5 600 mm above the floor. 3. All installations to which the device is connected should comply with the regulations applicable in the country of installation and use. Ecostrad VeeSmart...
- Page 6 Zone 2 Zone 1 Ecostrad VeeSmart...
- Page 7 5. The device can be installed in bathrooms in Zone 2, but at least 1m from any water source, (as defined by applicable law, subject to any additional regulations concerning electrical installations in wet areas). 6. Do not use extension cords or adapters for electrical outlets to plug the product. Ecostrad VeeSmart...
- Page 8 9. Use the device only for its intended purpose as described in the op- erating instructions. 10. Make sure that the heater has been installed on the wall in accord- ance with the installation instructions. 11. This information material should be given to the end user of the heater. Ecostrad VeeSmart...
- Page 9 3. Children aged 3 to 8 should only be allowed to operate the heater when it has been properly installed and connected. The child must be under adult supervision or have been trained to safely operate the device while understanding the risks. Ecostrad VeeSmart...
- Page 10 7. Do not allow the electronic controller housing to flood with any liquid. 8. Do not open the electrical controller housing, do not interfere with the interior of the device. 9. Be careful when putting hands between pipes of the radiator. Ecostrad VeeSmart...
- Page 11 11. After taking dry clothes off the radiator, its surface may be very hot. Be careful and wait for the temperature to decrease to a safe level. 12. Do not put loads exceeding 5 kg on the radiator. Ecostrad VeeSmart...
-
Page 12: Installation Details
4. For detailed installation instructions - see the last pages of this manual. NATURAL PERFORMANCE OF RADIATOR Because of the circulation of the heating agent in the radiator, the col- Ecostrad VeeSmart... - Page 13 It may happen espe- cially a few minutes after the heating element starts working. For more information please see the website of the manufacturer. heating element cold Ecostrad VeeSmart...
- Page 14 3. Any other sign of abnormal work Switch the device off and contact the seller immediately. ATTENTION! In case of heating fluid leak remain extra careful – fluid contains dangerous substances that – in case of contact – may harm skin, eyes or lungs. Ecostrad VeeSmart...
-
Page 15: Maintenance
1. Before disassembly, turn the heater off, disconnect the power cord from the mains and make sure that the heater is not hot. 2. Follow the assembly instructions based on the drawings no. 3 to 5, but in reverse order. Ecostrad VeeSmart... -
Page 16: Warranty
Thank you for your contribution to environmental protection. WARRANTY 1. The subject of this warranty is an Ecostrad VeeSmart electric ra- diator. The product name and characteristics are specified on the packaging. - Page 17 2 years for electrical parts with a heater control module. 4. The proof of purchase (receipt, invoice, etc.) constitutes the basis for warranty claims. Lack of the proof of purchase allows the manufac- turer to reject a warranty claim. Ecostrad VeeSmart...
- Page 18 6. The Manufacturer is obliged to remove any production fault within 14 working days of receipt of the faulty device at the Manufacturer’s premises. 7. Should the repair be impossible, then the manufacturer is obliged to replace the faulty product with a new, full-value unit of identical parameters. Ecostrad VeeSmart...
- Page 19 8. The attached User Manual is an integral element of the Warran- ty. Please read it carefully prior to the installation and use of the product. Ecostrad VeeSmart...
- Page 20 60°C. Additionally, ulate temperature whilst the icon indicates that the radiator is a thermal fuse, built into the heating rod, protects your radiator from being reheated. critical overheating (the fuse can get damaged in temperatures high- er than 82°C). Ecostrad VeeSmart...
-
Page 21: Heating Mode
Dryer the device is to be turned off automatically. In order to activate the mode will be terminated. Dryer Mode: • press button shortly — display panel will show dryer working time of 1H (1 hour), Ecostrad VeeSmart... - Page 22 The number displayed on the meter reflects the actual energy con- sumption, therefore you can measure the actual cost of energy used by multiplying the number on the meter by the nominal heating output of the heating element and the price of electricity (per kW). Ecostrad VeeSmart...
-
Page 23: Remote Operation
1 – 240 minutes, in all available temperature ranges as well as to choose the mode of temperature measurement either radiator temperature or room temperature. *The Terma BlueLine application is available on Google Play and the App Store Ecostrad VeeSmart... - Page 24 Heating element is heating despite being Electronics damage. Disconnect the device from its electric supply, wait turned off with the button. for the radiator to cool down and turn it back on. If the problem persists, please contact your local distributor. Ecostrad VeeSmart...
- Page 25 Ecostrad VeeSmart...
- Page 26 Installation Electric only Radiator DANGER! The controller must not be connected to the power when it is first connected to the element, as this can cause the element to burn out. 0-1,5 mm Ecostrad VeeSmart...
- Page 27 Brown / L / Live Blue / N / Neutral Yellow-green / PE / Protecting earth Installation of Ecostrad VeeSmart with two KTX-4 Blue heating elements (600x1190 mm only). both heating elements can be supplied from one power...
- Page 28 TERMA Sp z o.o. Czaple 100, 80-298 Gdańsk, Poland terma@termagroup.pl www.termagroup.com MPGKL-326 20190918 Tomasz Ciborowski...
