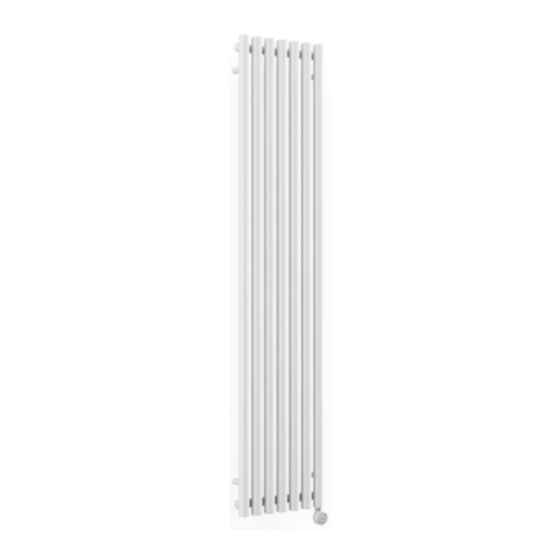

- Page 1 ROLO Electric radiator User Manual...
- Page 2 User Manual Our products have been designed and manufactured in such a way to ensure that all quality, functionality and aesthetic requirements are met. We would like to congratulate you on the purchase of this great product and wish you a pleasant experience with it.
-
Page 3: Technical Data
Electric radiator 1. Execution: the radiator is made of powder coated low carbon steel. It is filled with synthetic oil heating agent and equipped with elec- tronically controlled heating element. 2. Technical data: Model designations PW - straight cable with plug (self-installation permitted) or (type of power cable) PB - straight cable without plug (the permanent hard-wired connection to the installation must be performed by a quali-... - Page 4 3. Purpose: as a dryer for clothes, as towel warmer, as a room heater (see section "SAFETY USAGE RULES"). 4. Place of use: rooms with normal air humidity (including bathrooms, kitchens, if applies), without the influence of corrosive media. 5. Installation to the wall - via the attached mounting brackets. ATTENTION: The design of the radiator and the physical proper- ties of the heating medium cause an uneven temperature distribu- tion inside the radiator - see chapter "NATURAL PERFORMANCE...
- Page 5 THE RIGHT MOUNTING NOTE: The device marked “PB” (hard-wired connection) must be installed by a qualified electrician, location in bathroom is allowed. The device “PW” (cable with plug) can be self-installed, but only loca- tions in dry areas/rooms are permitted. 1.
- Page 6 Zone 2 Zone 1...
- Page 7 3. All installations to which the device is connected should comply with the regulations applicable in the country of installation and use. 4. It must be ensured that the circuit in the electrical installation to which the radiator is connected has an appropriate overcurrent cir- cuit breaker and a residual current device (R.C.D.) with a sensitivi- ty of 30 mA.
- Page 8 7. The mounting location should provide a close distance to the elec- trical connection in order to: - avoid straining the power cable after connecting it to the socket, - reduce the risk of mechanical damage to the cable, - limit access of unauthorized persons and pets to the device. 8.
- Page 9 ATTENTION! Failure to meet the above-mentioned requirements is a potential source of electric shock hazards or it may cause injury or property damage. SAFETY USAGE RULES 1. The device is intended for home use. 2. Electric heater is not a toy. Children under the age of 3 should not be allowed within close proximity of the device without the supervi- sion of an adult.
- Page 10 4. Note: Some parts of the radiator can be very hot and can cause burns. Pay special attention to the presence of children or people with disabilities. 5. Check regularly that the device is not damaged and that it is safe to use.
- Page 11 10. When drying fabrics, pay attention to the temperature acceptable for them. CAUTION ! Detergents used for washing can cause permanent dis- coloration of radiator paint. Such cases are not subject to complaint. 11. After taking dry clothes off the radiator, its surface may be very hot. Be careful and wait for the temperature to decrease to a safe level.
-
Page 12: Installation Details
INSTALLATION DETAILS 1. Immediately remove the packaging after unpacking the radiator - they are a source of potential danger to children. 2. During assembly or disassembly, the device must not be live. Set the radiator to the wall in its planned location. Install the radiator in accordance with the instructions supplied with the assembly kit. - Page 13 There is also the so-called “dead-zone” in the radiator which is a non-heating section just above the heating element that is designed to isolate the element controller from the heat. In tight or very high radiators the highest parts may be colder than the rest of radiator due to the air cushion in the top part.
-
Page 14: Maintenance
MALFUNCTION IF YOU NOTICE ANY OF THE SYMPTOMS BELOW Heating medium leaking, Deformation of pipes or collectors, Any other sign of abnormal work Switch the device off and contact the seller immediately. ATTENTION! In case of heating fluid leak remain extra careful – fluid contains dangerous substances that –... - Page 15 amount of detergent without any solvents or abrasive agents. The radiator surface must not be painted with any paint or varnish. DISASSEMBLY Before disassembly, turn the heater off, disconnect the power cord from the mains and make sure that the heater is not hot. Follow the assembly instructions based on the drawings no.
-
Page 16: Warranty
WARRANTY The subject of this warranty is a Terma electric radiator. The product name and characteristics are specified on the packaging. By accepting the device on purchase, the Client confirms that the product is of full value. The Client should immediately inform the Seller of any discovered faults —... - Page 17 ty claim. This warranty does not cover any faults that are due to: incorrect (not in accordance with the manual) installation, use or disassembly, incorrect use of the heating element (i.e. for any purpose that is not specified by the Manufacturer as intended for this type of product), product being handled by unauthorized persons, fault’s or damages caused by the Client after having purchased and accepted the product.
- Page 18 MOA BLUE Blue LEDs – temperature setting indicators Temperature adjustment and Bluetooth pairing RGB LED – TIMER, schedule and Bluetooth communi- cation indicator On/Off button and TIMER switch MOA Blue electric heating element is equipped with a radiator tem- tics of the heating medium, cause the lower radiator tubes (especially perature sensor (active by default!) and an additional room temperature the bottom two) to have a lower temperature than the rest of the radia- sensor that can be activated by a mobile control application.
- Page 19 Manual Operation TIMER mode (a mobile operating device with installed control application may, but Press and hold the key to activate the 2 hour TIMER, i.e. to dry a tow- does not need to be in the range) el or warm up a room. Single RGB LED will turn red. Press briefly the key to switch on the heating element.
- Page 20 Android (min 4.4) or IOS (min 6.0) operating systems. The heating element is visible by other Bluetooth devices and appears as MOA Blue Terma. You may need to enter a default authorization code: 123456. To start the pairing mode in MOA, press and hold for approx.
- Page 21 memory of any Blue heating element paired with the mobile device (see Tutorial in the control application). When uploading a schedule to the heating element’s memory, a message confirming the action appears on the portable device screen, but does not yet indicate a change in the heating element’s operating mode.
- Page 22 Problem solving Problem Possible cause Solution The device is plugged in, no diodes Check the connection of the power wire, Problem with the connection. are on. the plug and the socket. Disconnect the device completely, wait Temperature sensor has been damaged. until the radiator cools down and re-con- nect it again.
-
Page 23: Installation
Installation Electric only Radiator Brown / L / Live Blue / N / Neutral 20° Yellow-green / PE / Protecting earth 230 V 50 Hz... - Page 24 TERMA Sp z o.o. Czaple 100, 80-298 Gdańsk, Poland terma@termagroup.pl www.termagroup.com MPGKL-333 GigTo20190712...
